YILIANDUO 2.4GHz WiFi Antenna Kit, RP-SMA Male + U.FL Pigtail, 2-Pack

Compatibility Check

• Frequency: 2.4GHz only; not a 5GHz antenna.
• Antenna connector: RP-SMA Male, coupling nut with center socket.
• Pigtail panel connector: RP-SMA Female, external thread with center pin.
• Board connector: U.FL / I-PEX compatible miniature connector.
• Check the connector gender and center contact before ordering.

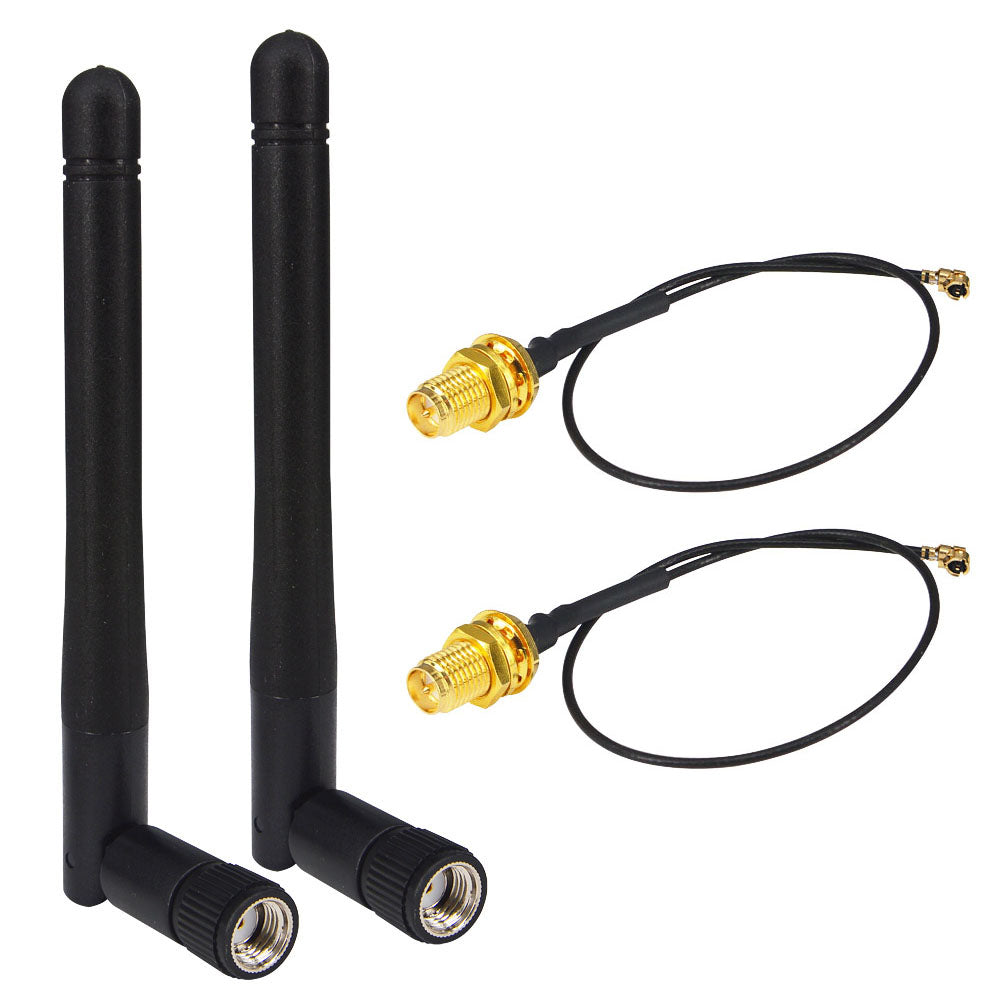

What You Receive

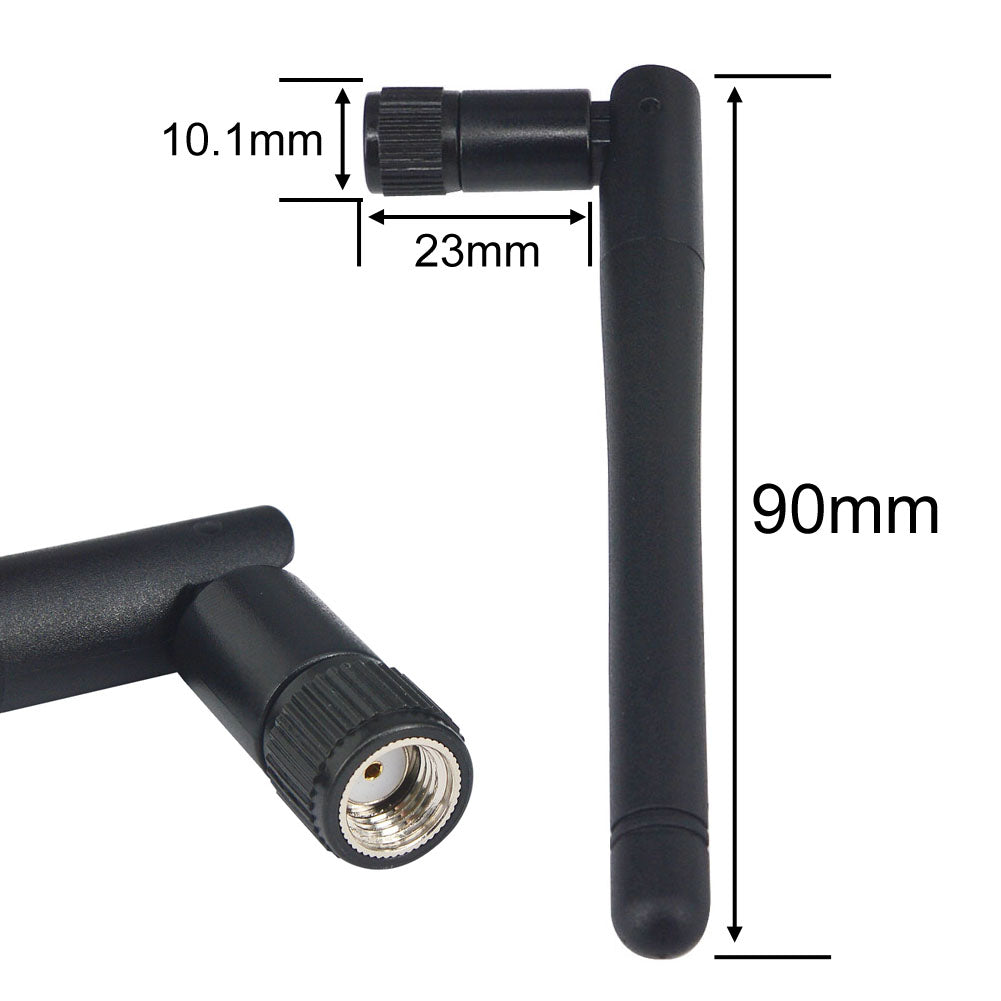

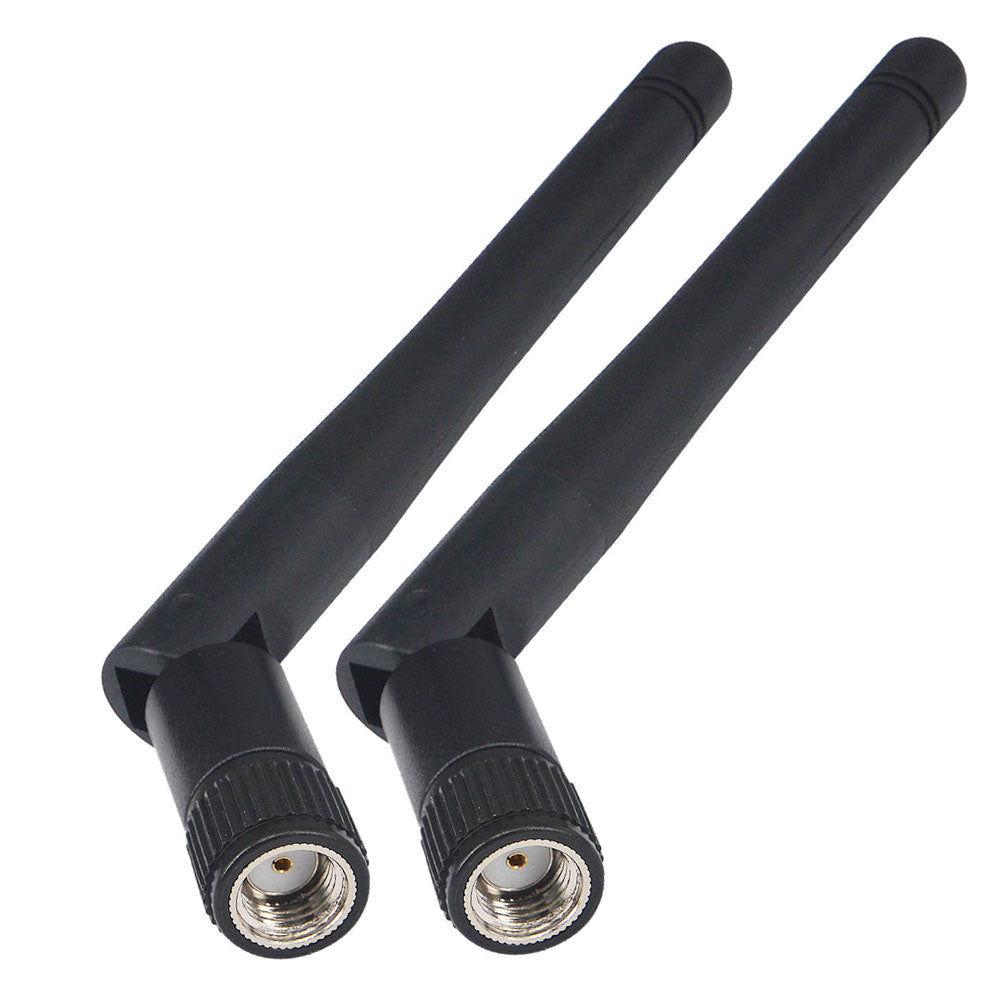

• 2 × 2.4GHz 3dBi omnidirectional antennas
• 2 × 15cm U.FL to RP-SMA Female pigtail cables

Specifications

• Frequency: 2.4GHz, 802.11b/g/n
• Published gain: 3dBi
• Impedance: 50Ω
• Pigtail cable: 1.13mm coaxial cable, 15cm
• Antenna adjustment: 90° tilt and 360° rotation

Measured Performance

A VSWR sweep is not currently published. Confirm performance in the final device enclosure before production use.
