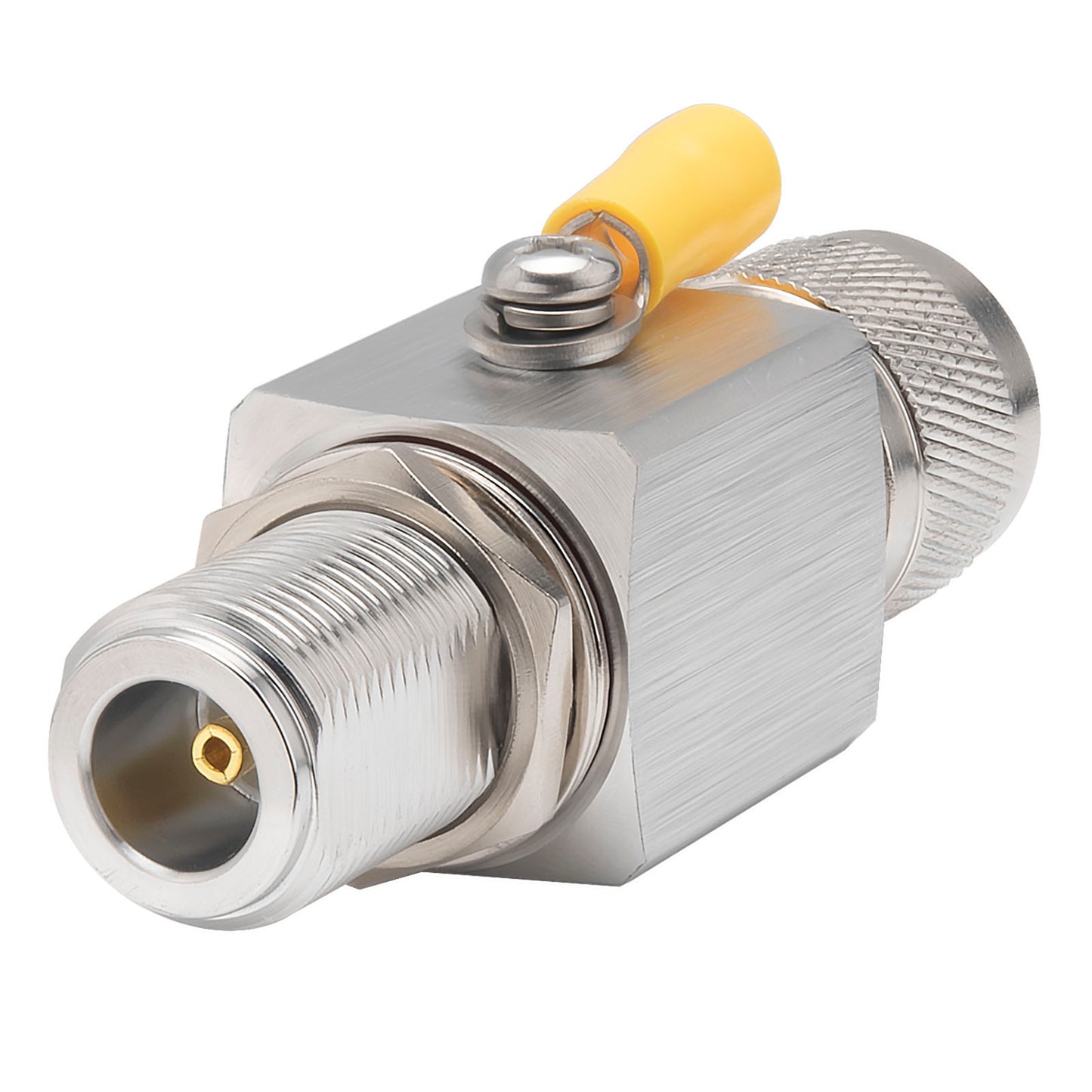

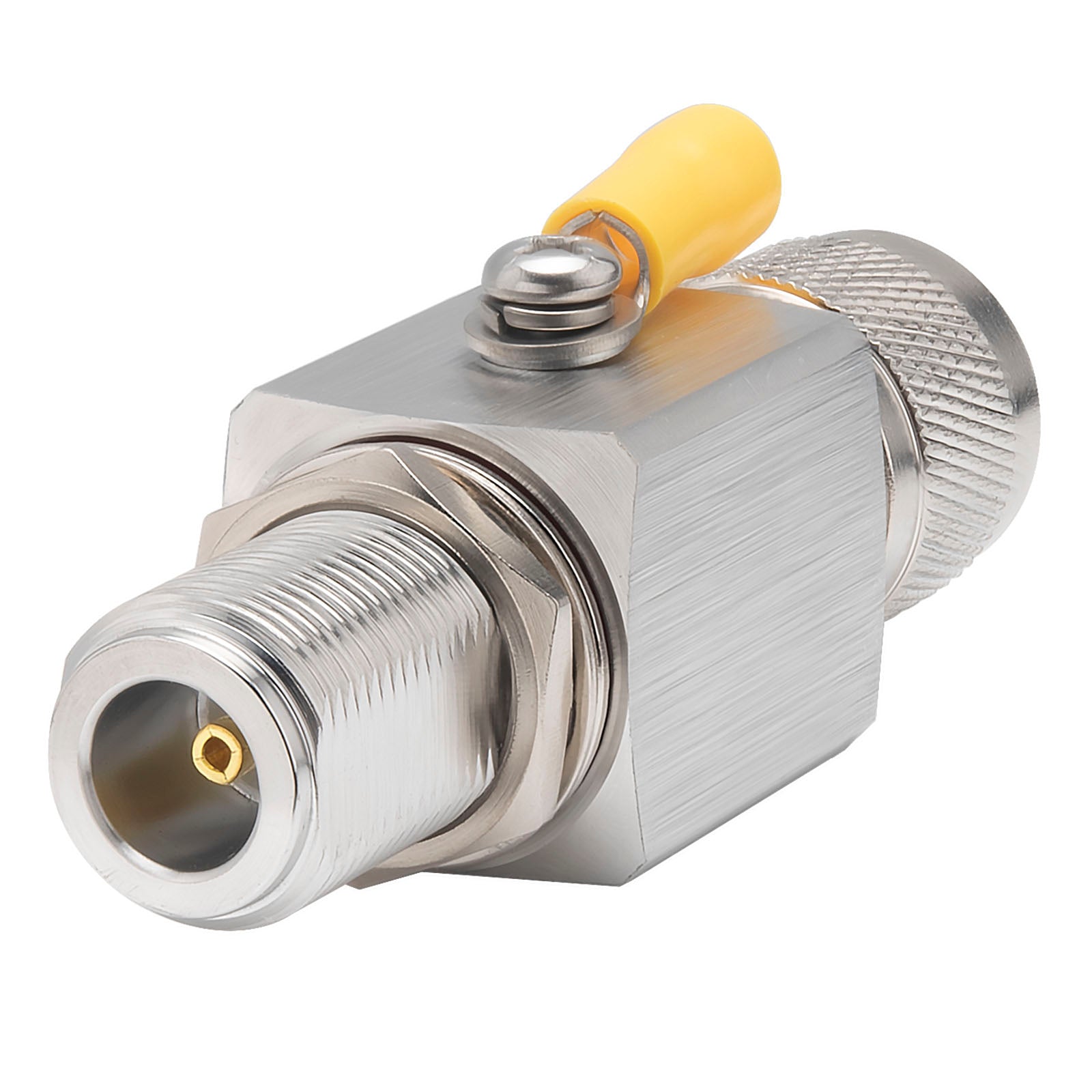

• Silver-tone N-type coaxial surge-protection device with a yellow-sleeved grounding terminal

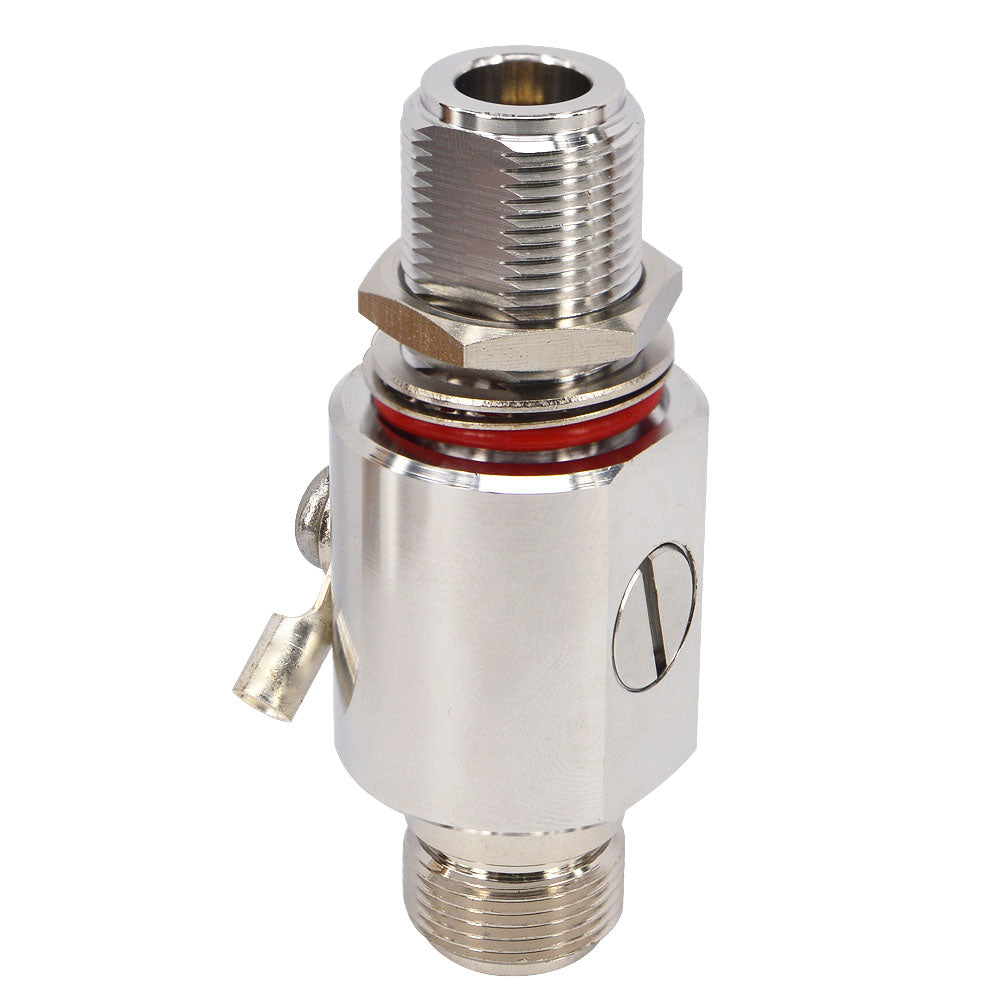

  • Large cylindrical silver N-type surge protector with side grounding lug and threaded connectors

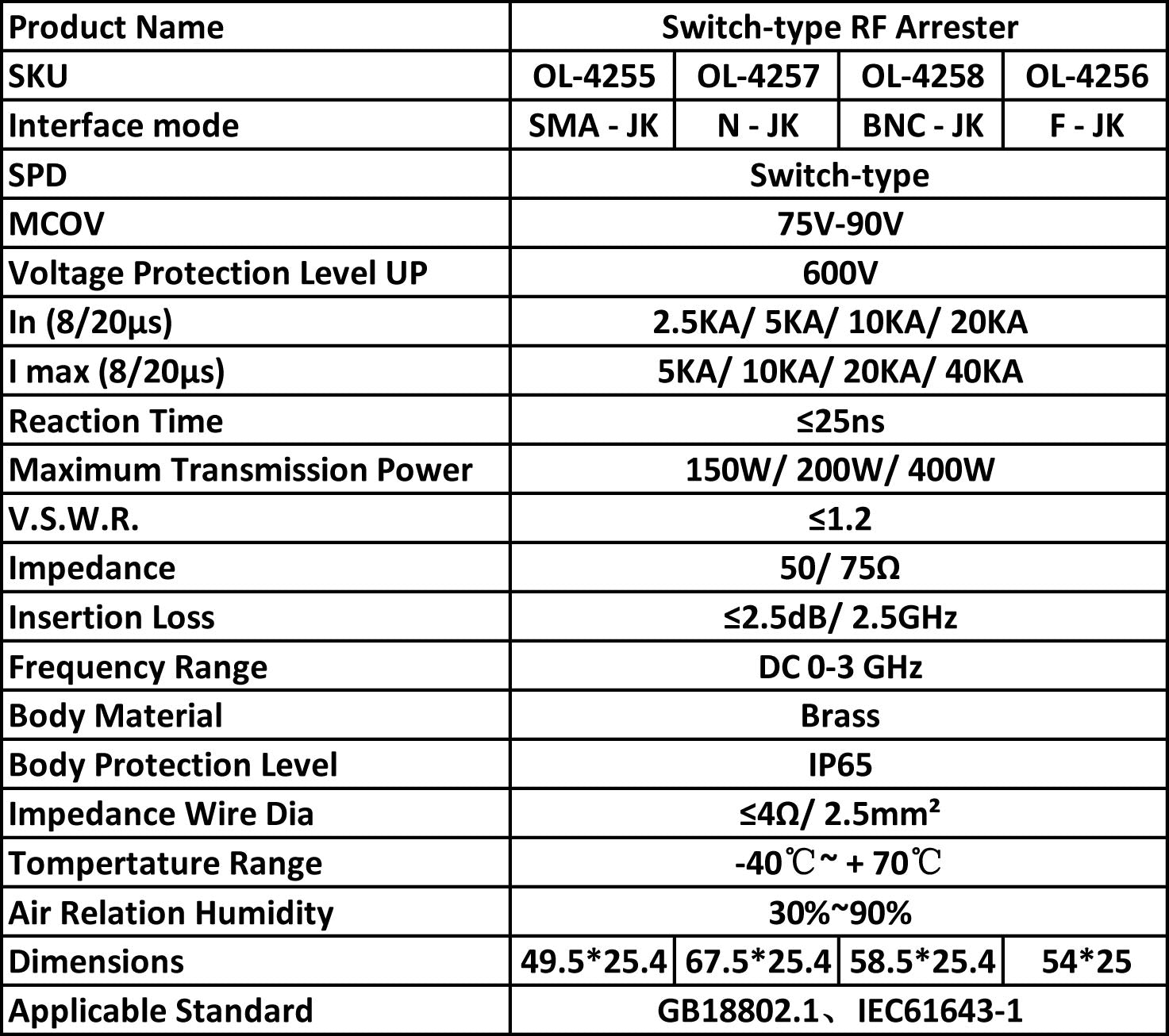

  • Technical specification table for several switch-type N, SMA, BNC and F surge protectors

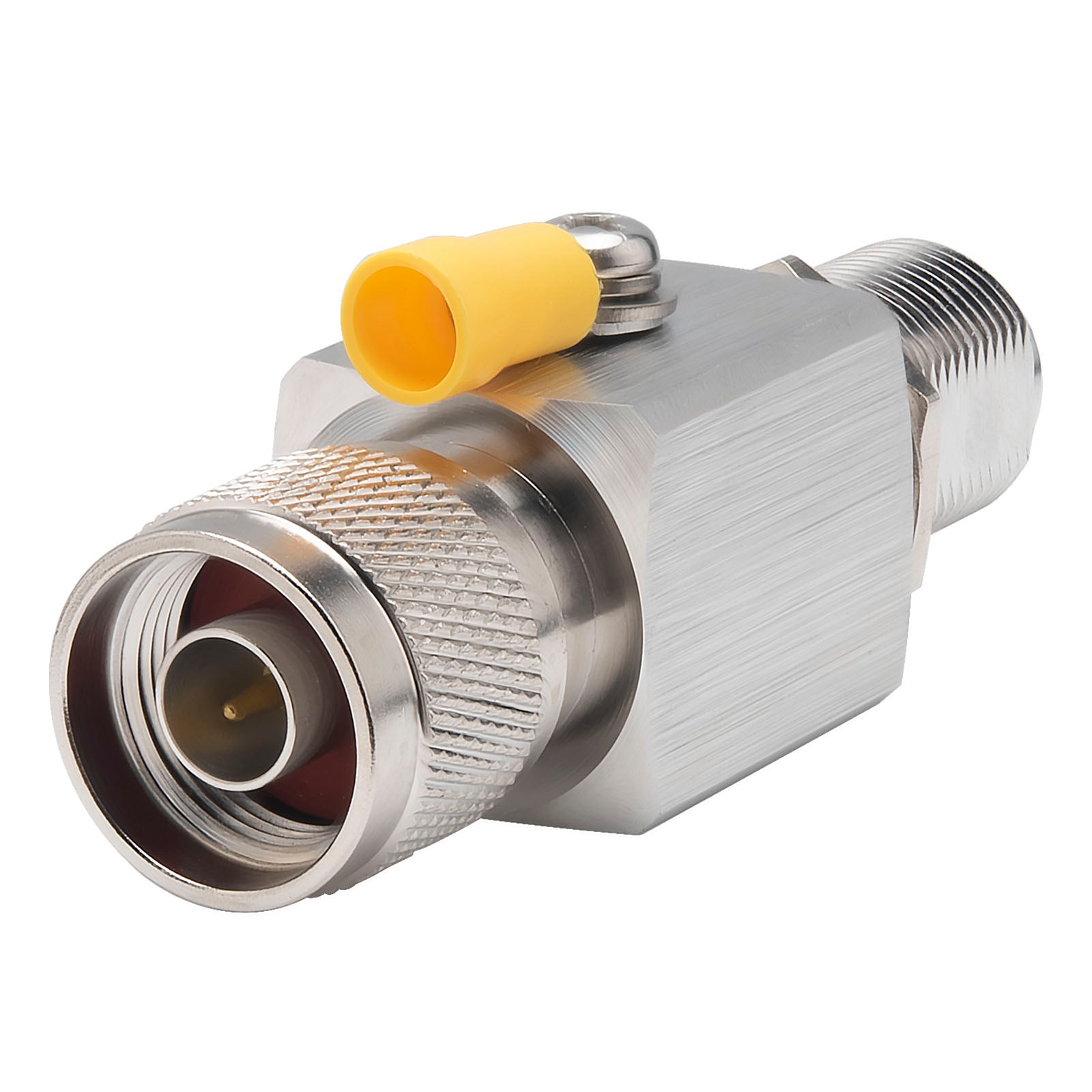

  • Angled close-up of a rectangular-body silver N-type surge protector with yellow ground cap

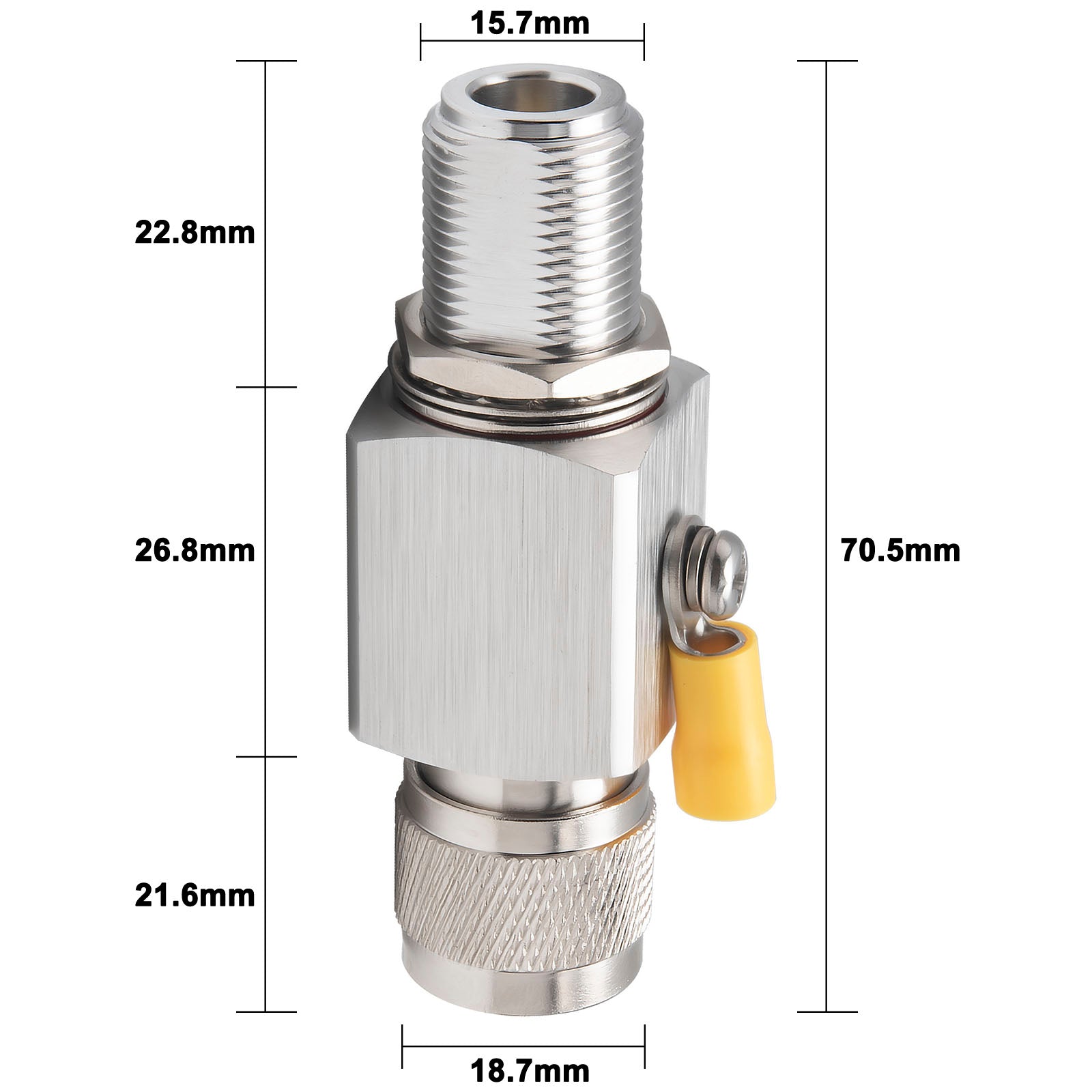

  • Dimension diagram of a long silver N-type surge protector with grounding terminal
  • Two upright silver N-type surge protectors with threaded ends and grounding terminals

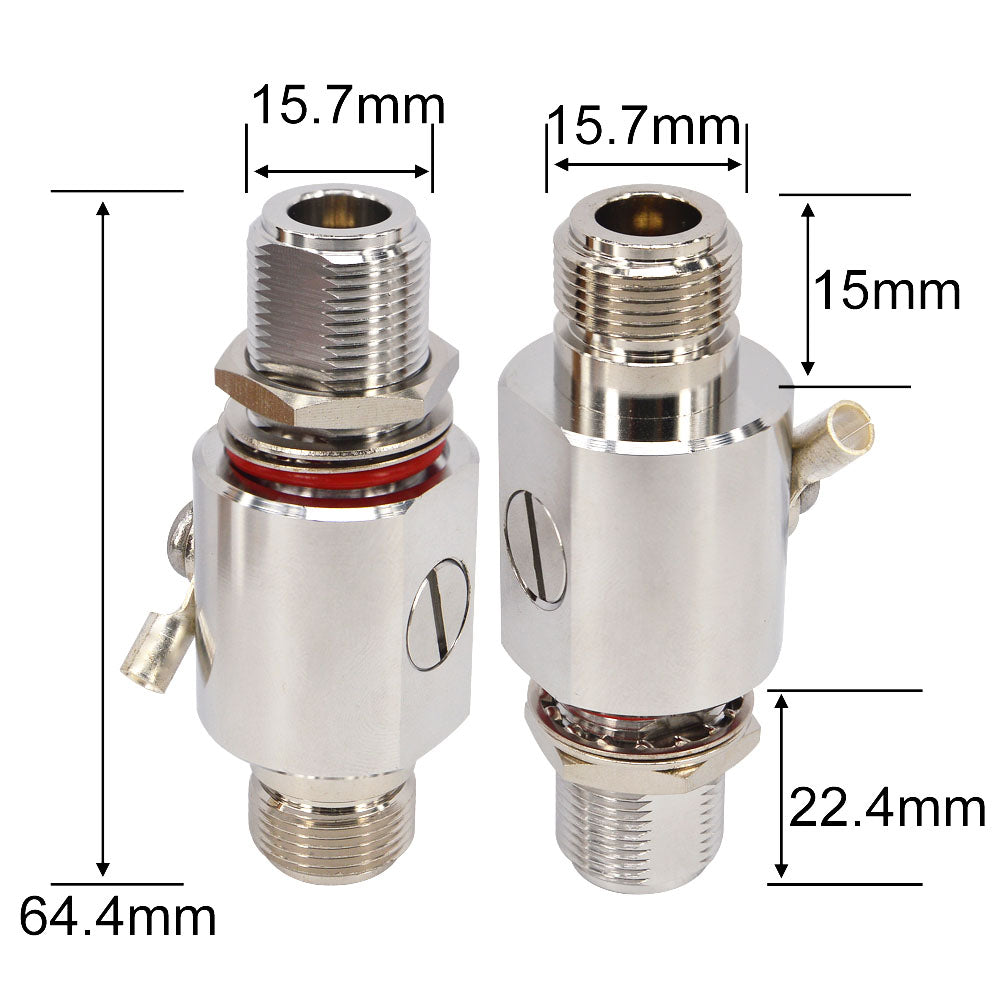

  • Dimension layout of two silver N-type surge protectors with red sealing rings
1 7

YILIANDUO N-Type Coaxial Surge-Protection Device, 50Ω Options

YILIANDUO N-Type Coaxial Surge-Protection Device, 50Ω Options

OL-4257

$15.16 USD
$15.16 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Connector type

Customized Services

We offer custom services. If you need a specific product, please contact us.

Shipping Methods

Standard shipping is selected by default. Orders over $200 are automatically upgraded to Express shipping.

High Quality Service

When you choose YILIANDUO , enjoy personalized after-sales service.

Afficher tous les détails

Compatibility Check

  • Connector options: N Male to N Female or N Female to N Female.
  • Listed impedance: 50Ω.
  • Inline metal body with an external grounding terminal.
  • Select the required connector configuration and confirm the grounding design before ordering.

What You Receive

  • 1 × N-type coaxial surge-protection device in the selected connector option

Product Details

  • Silver-tone rectangular body
  • N-type inline connection
  • Screw-type grounding terminal with yellow insulating sleeve

Protection Evidence

Independent surge-current, clamping-voltage, discharge-cycle, insertion-loss, VSWR, frequency-range, material and weather-ingress reports are not currently published. Guaranteed protection, bandwidth and application-compatibility claims are therefore not stated.

Safety and Installation

This component does not replace a complete grounding, bonding and lightning-protection design. Installation and verification should be performed by a qualified person using the requirements of the final site and equipment.
