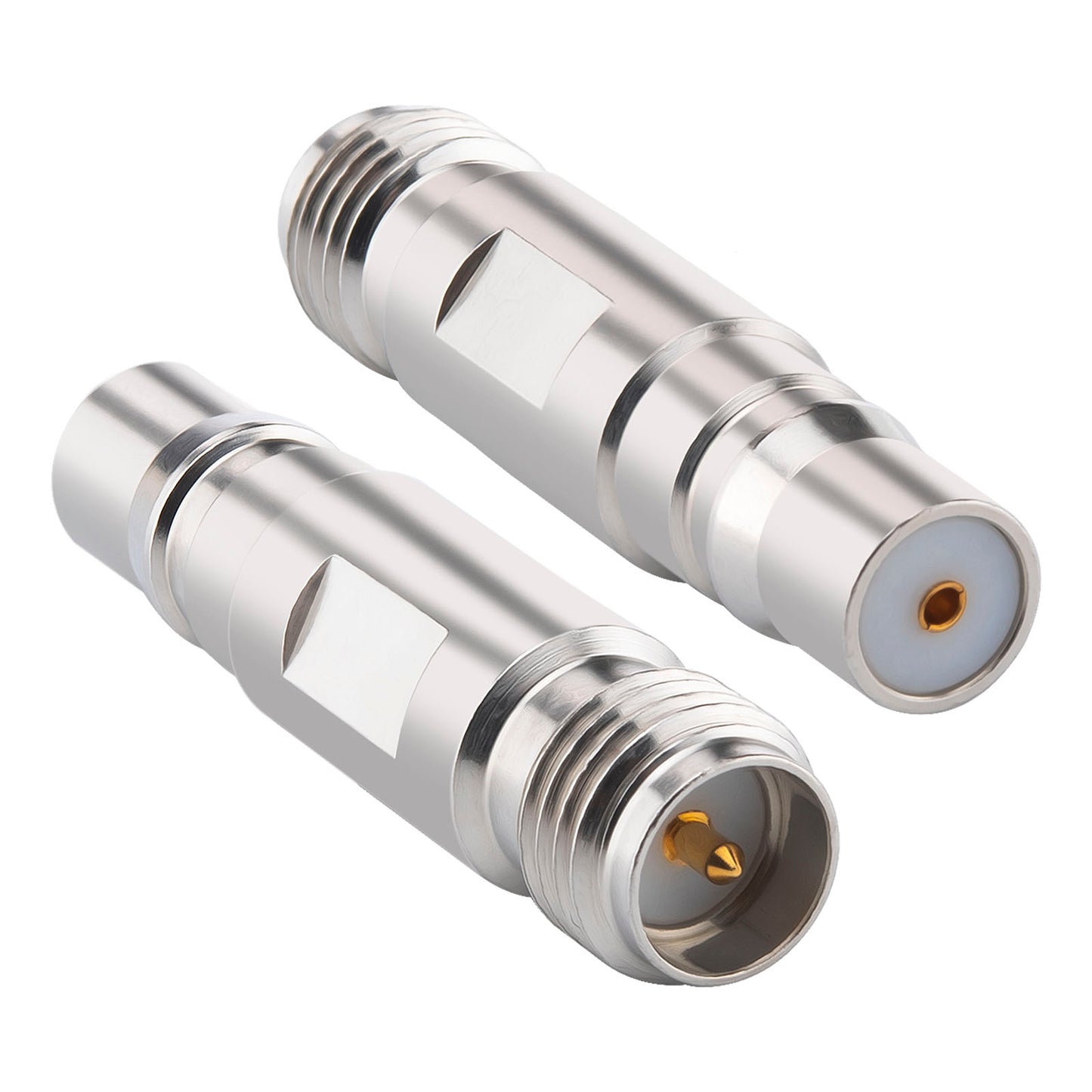

YILIANDUO RP SMA to QMA 6GHz RF Coaxial Connector 50Ω Push-Lock Adapter for 5G Base Station, Satellite, IoT, Military & Avionics 2-Pack

$17.64 USD

Promotion Épuisé

Frais d'expédition calculés à l'étape de paiement.

Features

6GHz High-Frequency Performance: Supports DC–6GHz full band, VSWR ≤1.15@6GHz, insertion loss ≤0.15dB, ideal for 5G mmWave & satellite links.
1-Second Push-Lock QMA: Tool-free quick connect/disconnect, replaces threaded SMA to slash installation & maintenance time.
Industrial-Military Grade: Stainless steel housing + beryllium copper core, 500+ mating cycles, wide temp -40°C~+120°C, MIL-STD-202G vibration-proof.
Stable RF Specification: 50Ω standard impedance, 100W CW power handling, low distortion for radar, EW & critical communication.

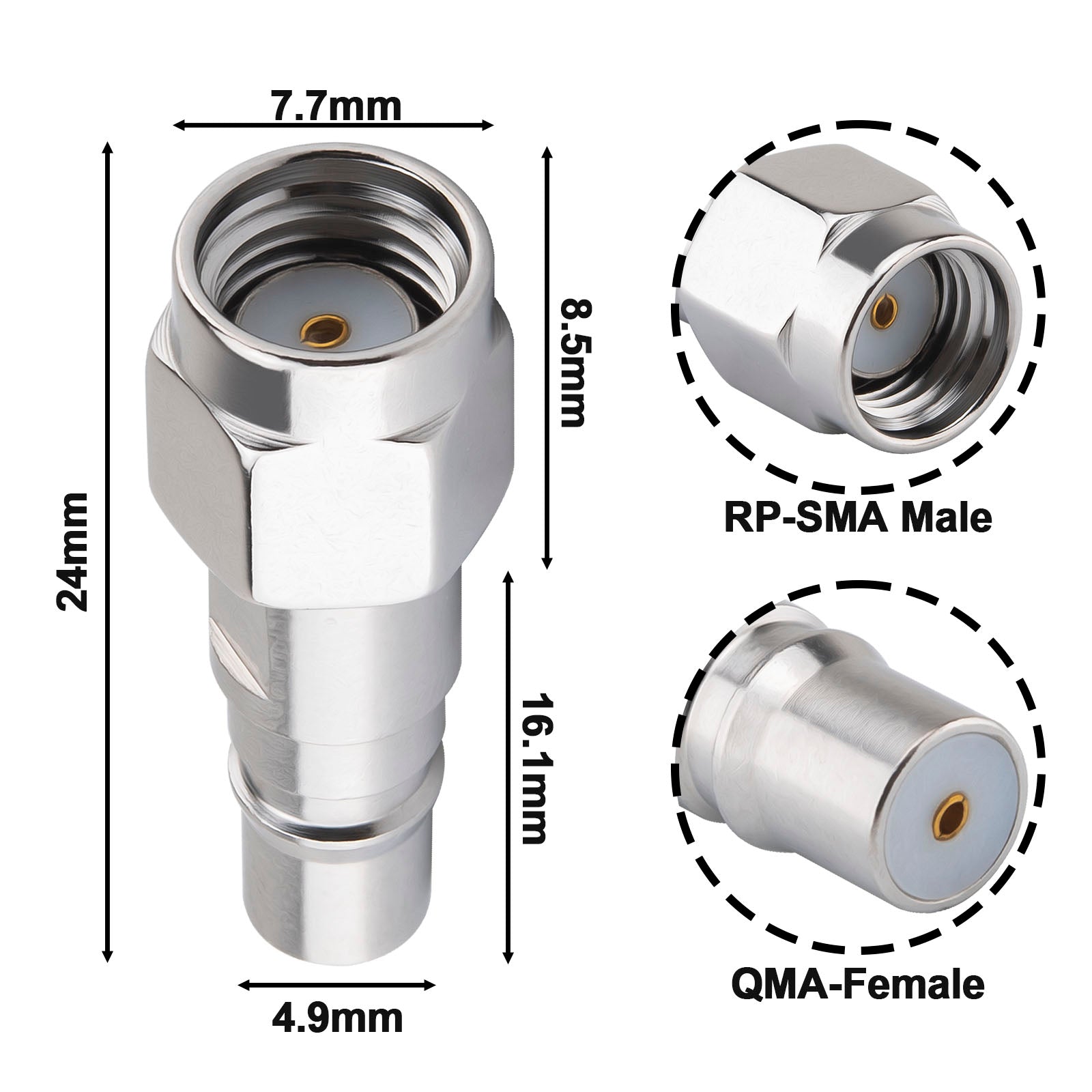

Perfect Interface Conversion: Converts RP-SMA male (internal thread) to QMA female, solves mismatch in 5G, IoT & industrial systems.
2-Pack Value Set: Two connectors per pack, ideal for engineering deployment, replacement & B2B bulk procurement.

Description

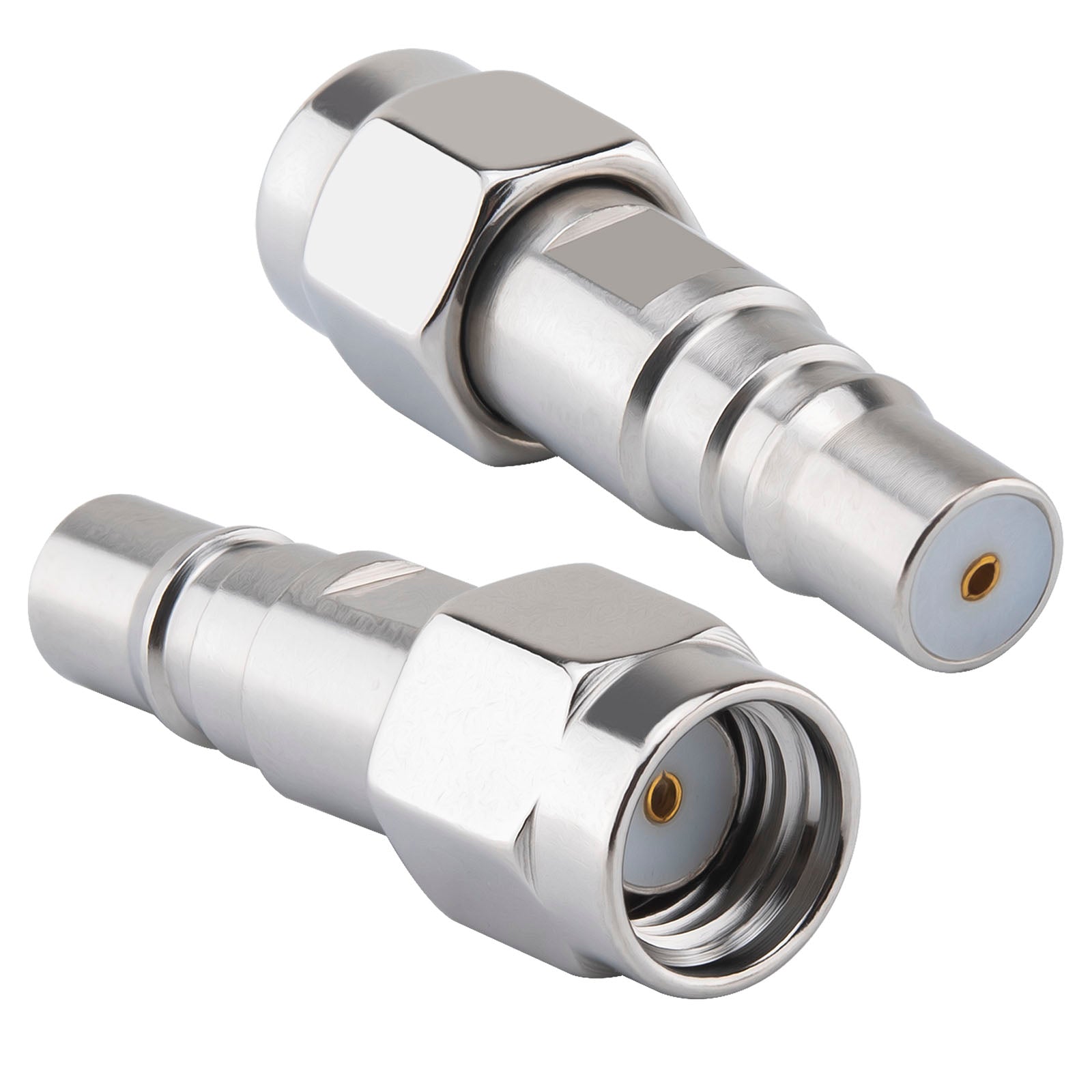

This RP SMA Male to QMA Female RF coaxial connector is a professional high-reliability connection solution built for 5G communications, satellite links, IoT systems, military avionics and industrial automation. Engineered for high-frequency stability, it supports up to 6GHz bandwidth with ultra-low VSWR and insertion loss, preserving signal integrity for mission-critical RF transmission.

The push-lock QMA quick-connect mechanism enables one-second locking without tools, replacing the slow threaded SMA connection to drastically improve efficiency for base station construction, equipment testing and field maintenance. With a standard 50Ω impedance and 100W continuous power rating, this adapter delivers consistent performance across harsh operating conditions.

Constructed with a stainless steel housing and beryllium copper contact core, it meets MIL-STD-202G vibration resistance and operates reliably from -40°C to +120°C. The precision RP-SMA male to QMA female conversion eliminates interface mismatches in 5G base stations, Starlink terminals, IoT routers, radar systems and electronic warfare equipment.

Whether you are a telecom engineer deploying 5G infrastructure, a satellite communication technician, a military/avionics specialist, or a B2B buyer sourcing industrial-grade RF components for wholesale and engineering projects, this 2-pack connector provides military-grade durability, high-frequency performance and stable connectivity for the most demanding RF environments.

Specifications

Customized Services

We offer custom services. If you need a specific product, please contact us.

Shipping Methods

Standard shipping is selected by default. Orders over $200 are automatically upgraded to Express shipping.

High Quality Service

When you choose YILIANDUO , enjoy personalized after-sales service.

Afficher tous les détails

Votre panier
Variante	Total des variantes	Quantité	Prix	Total des variantes

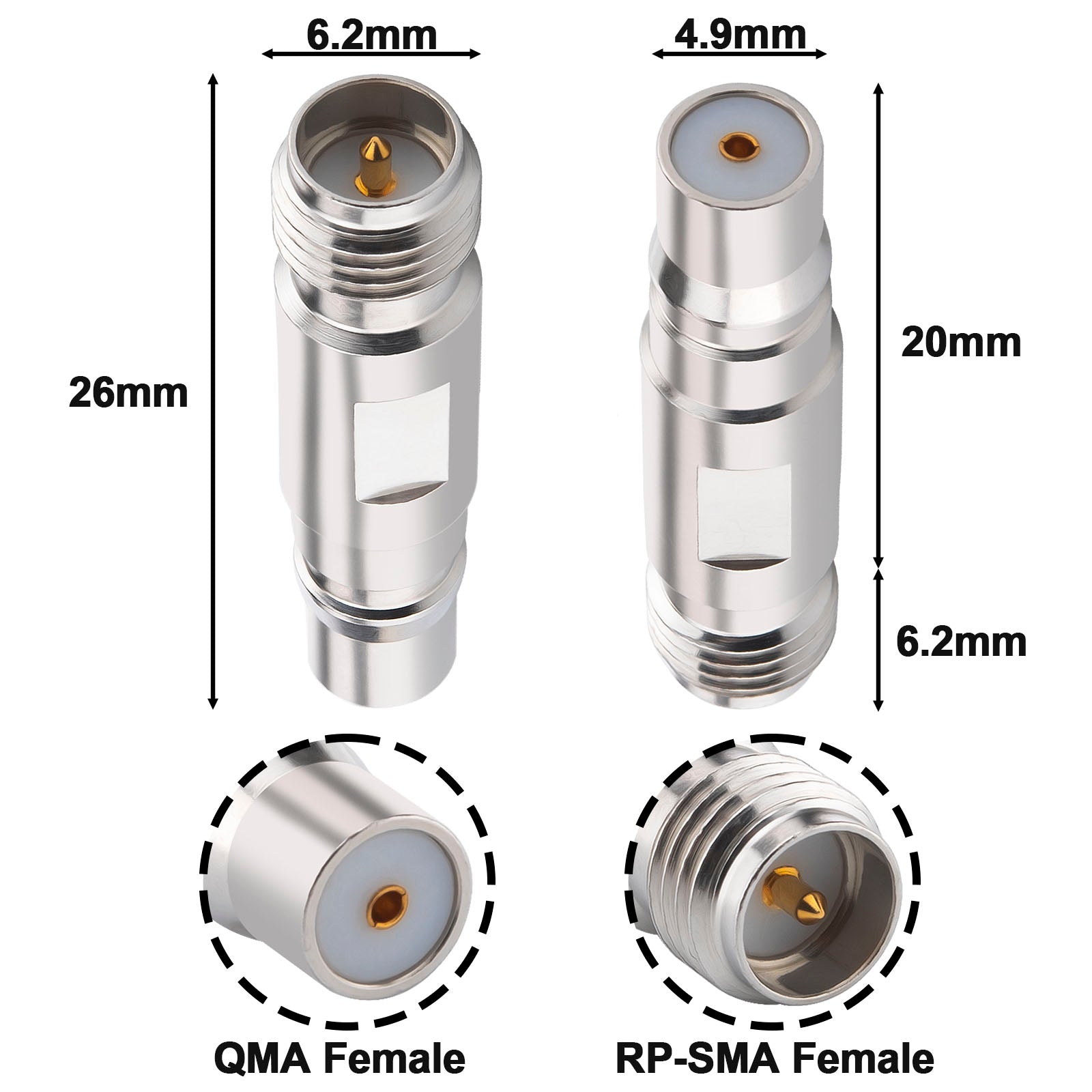

RP SMA Male to QMA FemaleOL-7142-2X	RP SMA Male to QMA FemaleOL-7142-2X $17.64/pièce	$0.00	Quantité	$17.64/pièce	$0.00
