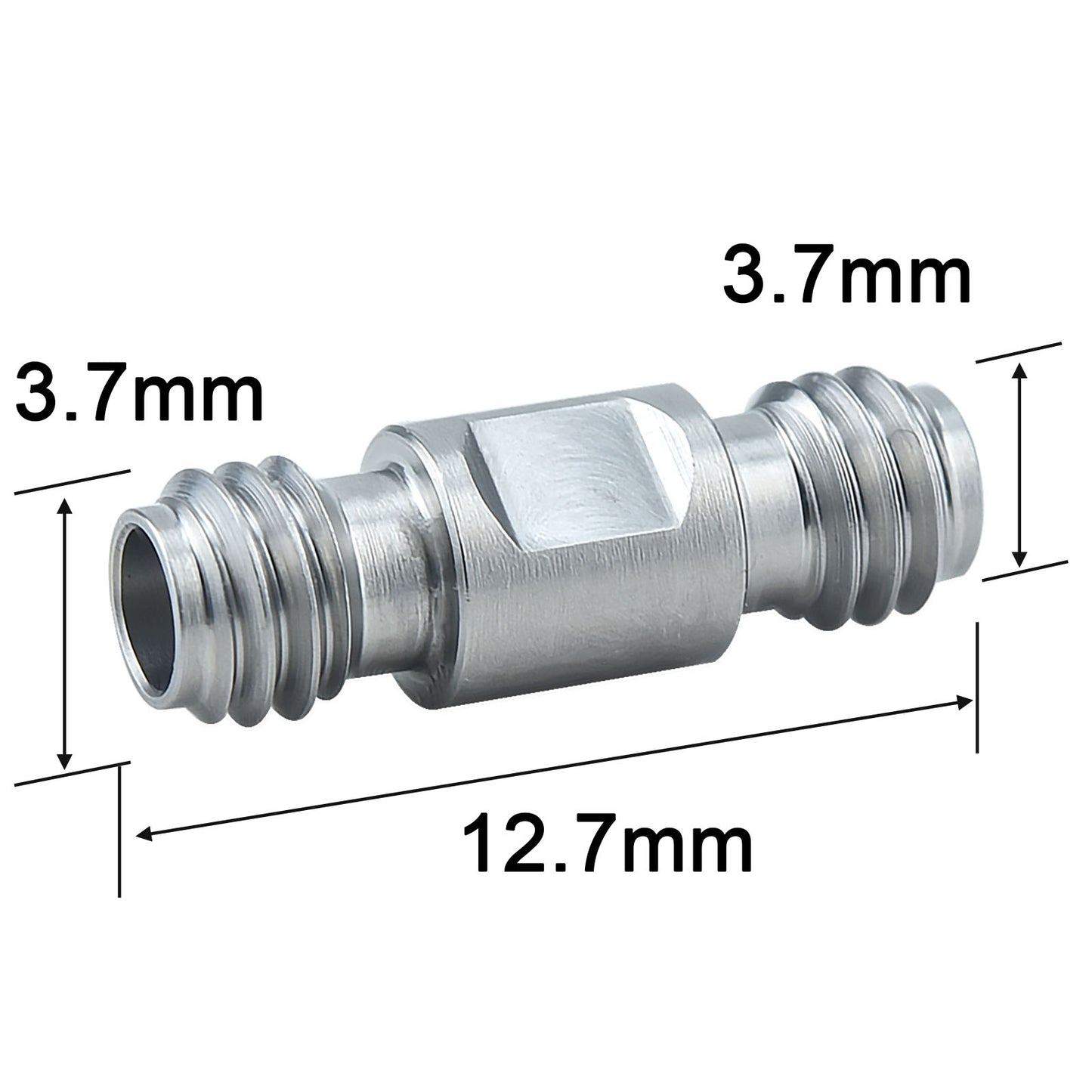

YILIANDUO 1.0mm(W-Type) Precision In-Series RF Adapter DC-110GHz | 50Ω Passivated Stainless Steel, 3 Gender Options(FF/MF/MM) Ultra-High Frequency Millimeter Wave Test Connector

YILIANDUO is ultra-precision in-series 1.0mm(W-type) coaxial millimeter-wave adapter fully rated for continuous DC~110GHz ultra-wideband operation, the top-tier frequency grade among commercial millimeter RF connectors. Available in three standard gender configurations: Female to Female / Male to Female / Male to Male, this air-dielectric interconnect is built with passivated stainless steel housing and gold-plated beryllium copper inner contact, engineered for cutting-edge 6G communication, semiconductor wafer testing, aerospace radar and high-end VNA calibration above 80GHz.

This premium high-frequency component targets dual-market positioning: B2B bulk sourcing for global aerospace manufacturers, 6G R&D institutes, automotive mmRadar factories and professional RF component distributors, plus B2C top university RF labs, semiconductor R&D engineers and precision measurement specialists, serving as economical alternative to expensive Anritsu, Pasternack and Mini-Circuits original W-type adapters.

• Standard 50Ω industry impedance for all millimeter-wave circuits
• Max VSWR ≤1.13 across full DC-110GHz spectrum (industry premium level)
• Ultra-low max insertion loss ≤0.06dB, minimal high-frequency signal distortion

✅ Advanced Air-Dielectric W-Type Design for D-Band mmWave

Air-spaced inner insulation instead of solid dielectric drastically cuts parasitic loss, core design for D-band(110GHz) ultra-high-frequency measurement, far superior to conventional SMA/3.5mm limited below 40GHz.

✅ Integrated Full Metal EMI Shielding

Closed all-metal shell suppress severe high-frequency electromagnetic interference, guarantee steady signal integrity under vibration-intensive radar & satellite testing; only for ≥30GHz millimeter wave, not for below-1GHz low-frequency wiring.

Specifications

Parameter	Technical Details
Brand	YILIANDUO
	100% Brand New
Manufacturer	yilianduo
Available Types	Female-Female / Male-Female / Male-Male
Connector Series	1.0mm(W-Type, D-Band) In-Series
Nominal Impedance	50 Ohm
Rated Frequency	DC ~ 110GHz
Max VSWR	≤1.13:1
Max Insertion Loss	≤0.06dB
Housing Material	Passivated Stainless Steel
Inner Contact	Gold-plated Beryllium Copper
Operating Temp	-55℃ ~ +165℃
Mechanical Match	Only compatible with other 1.0mm(W-type) connectors
Core Application	High-End VNA,6G, Semiconductor Test,Aerospace Radar,Automotive D-Band Radar



Applications

1. Top-Tier Academic & R&D Labs

2. Next-Gen 5G/6G Telecom

3. Aerospace & Defense Electronics

4. Automotive High-End Electronics

5. Precision RF Repair & Custom DIY

📦 Package Includes

• 1 × Millimeter Wave RF Adapter


Important Usage Notes

• Strictly for DC~110GHz millimeter measurement, prohibited for below 1GHz low-frequency circuits.
• Control tightening torque mildly; over-torque will bend tiny gold-plated inner pin and damage high-frequency performance permanently.
• Keep sealed dry storage to prevent precision plating from moisture corrosion.

Why Choose YILIANDUO

For B2B Wholesale Clients

For B2C R&D Engineers & Lab Buyers

FAQ
