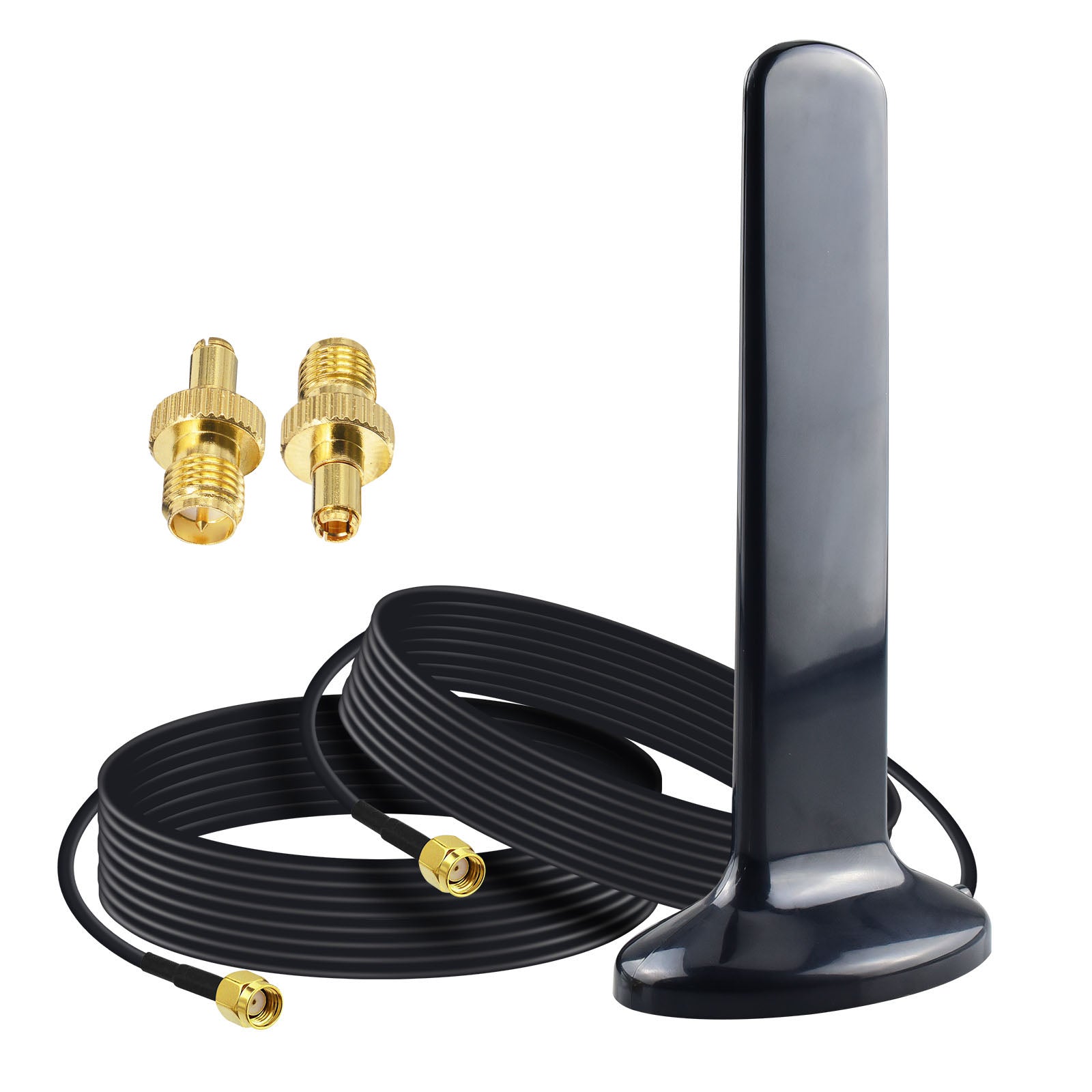

• Black paddle-style magnetic-base antenna with two coiled cables and two gold-tone RP-SMA-to-TS9 adapters

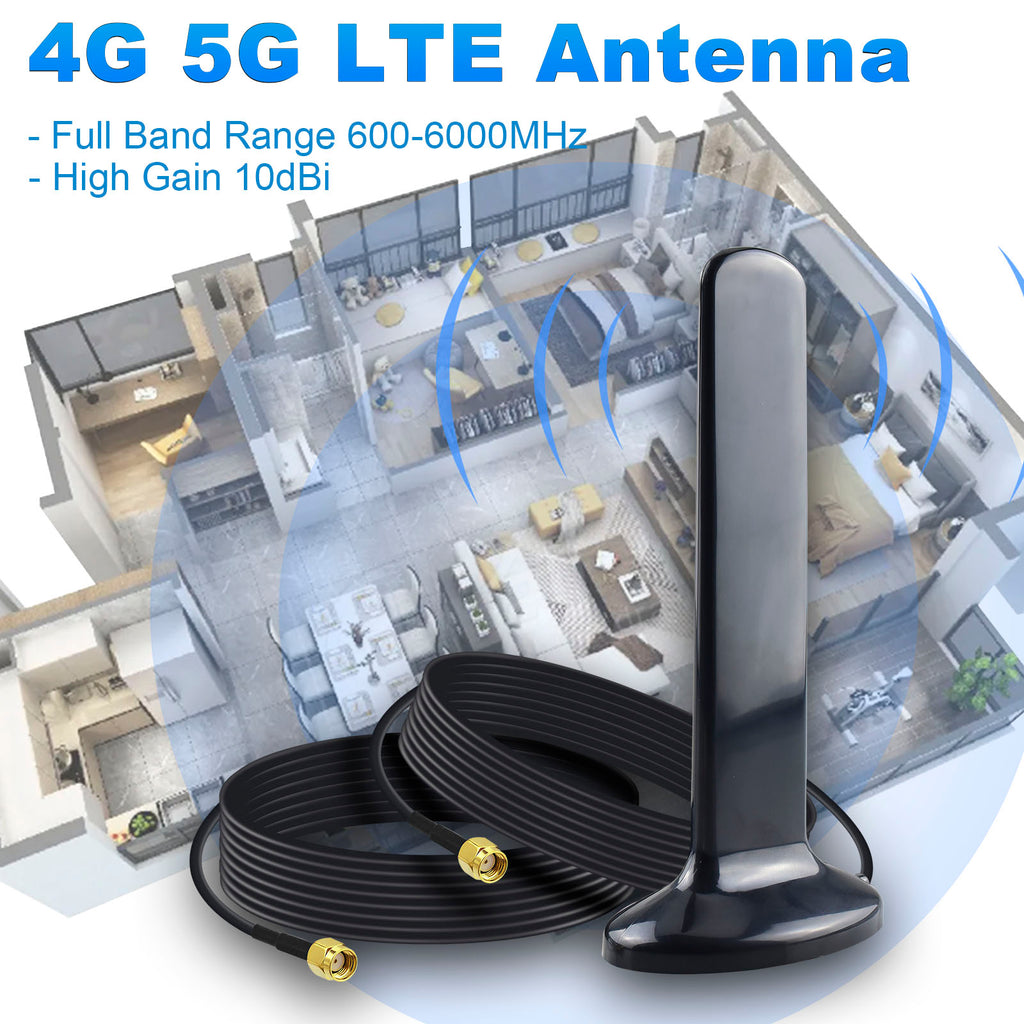

  • Two black magnetic-base paddle antennas with coiled cables over an indoor floor-plan illustration

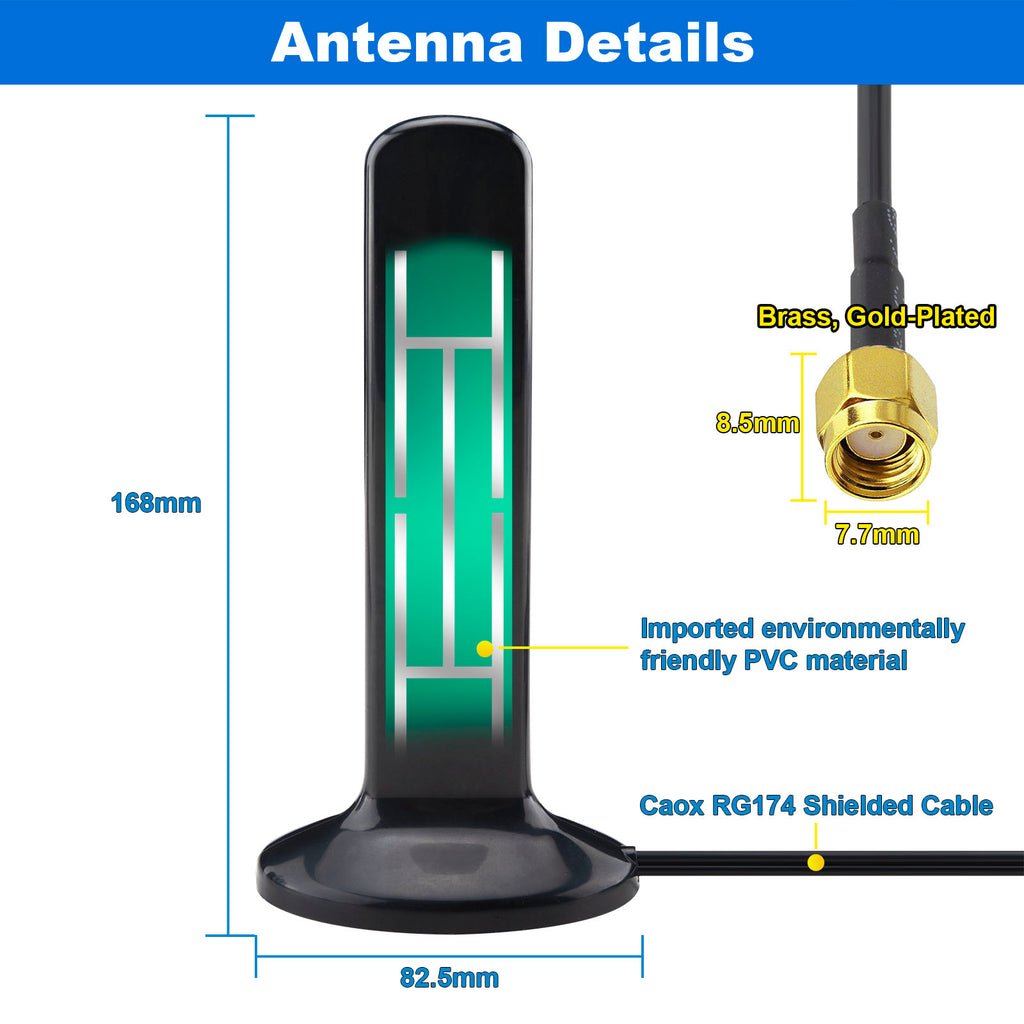

  • Cutaway diagram of a black paddle antenna with magnetic base, RG174 cable and RP-SMA connector dimensions

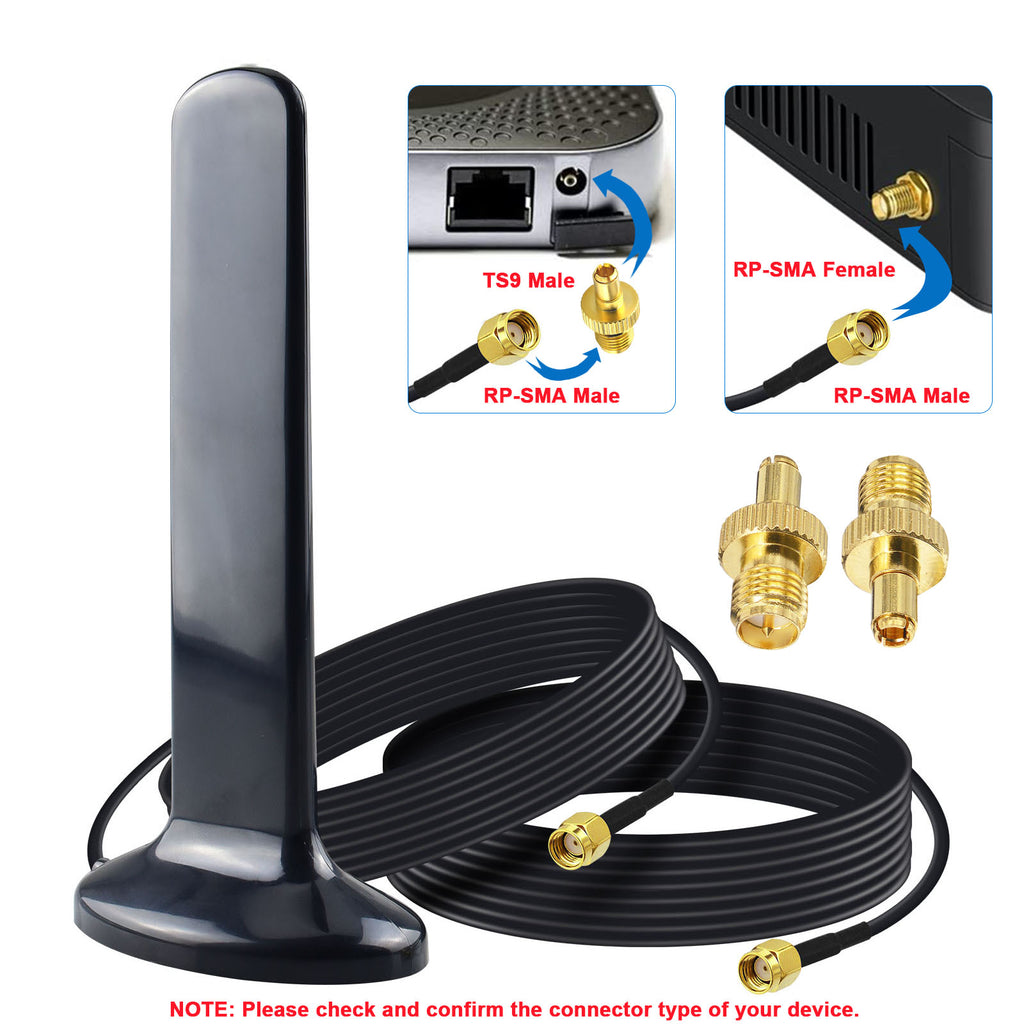

  • Black paddle antenna with two coiled RP-SMA cables, two gold-tone adapters and connector callouts

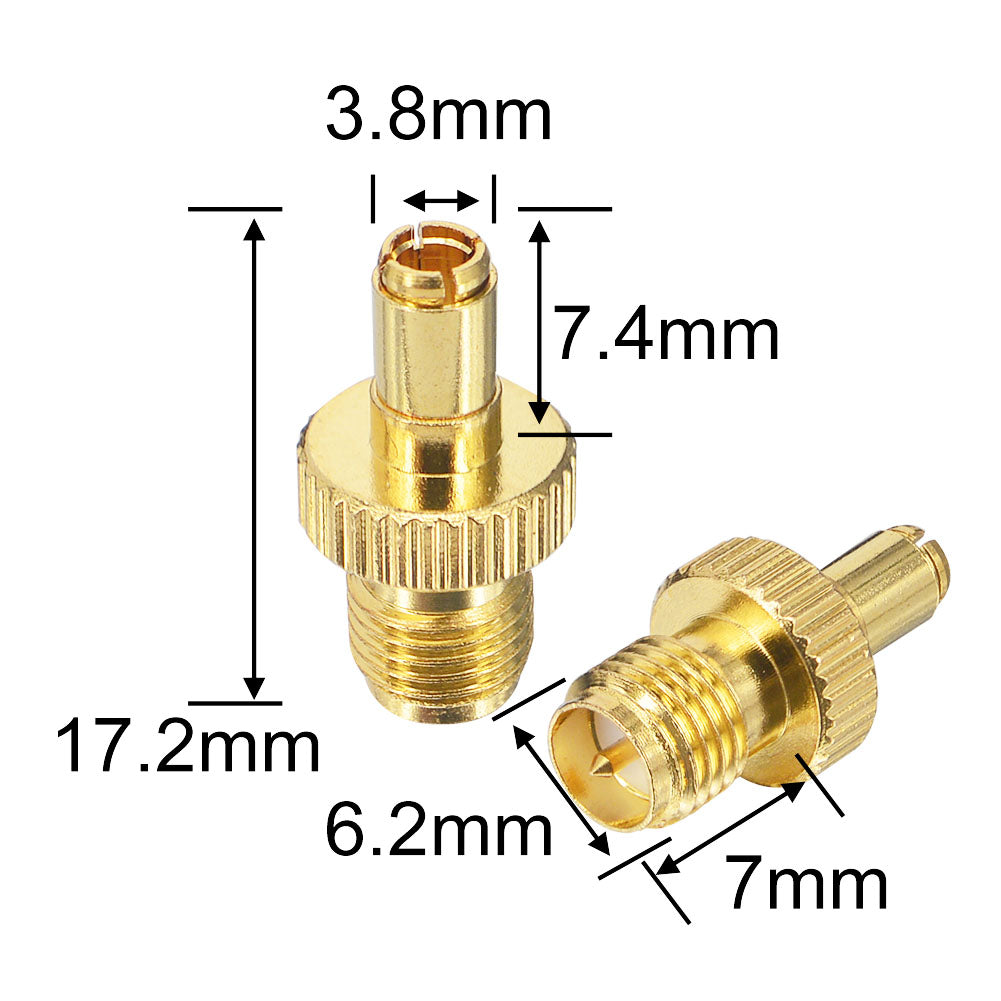

  • Dimension diagram of a gold-tone RP-SMA-to-TS9 coaxial adapter shown from the side and at an angle

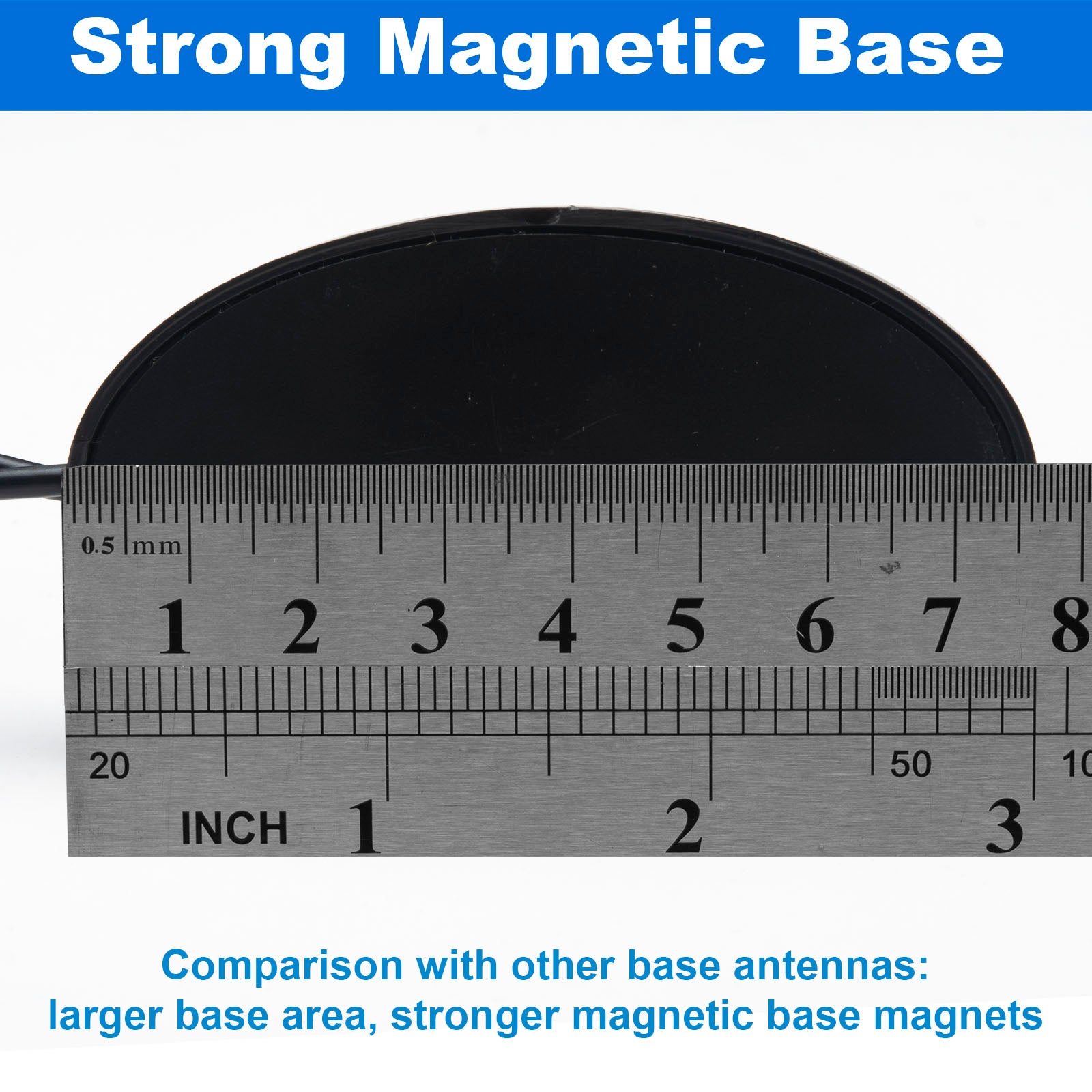

  • Close-up of the round black antenna base beside a ruler showing its approximate diameter

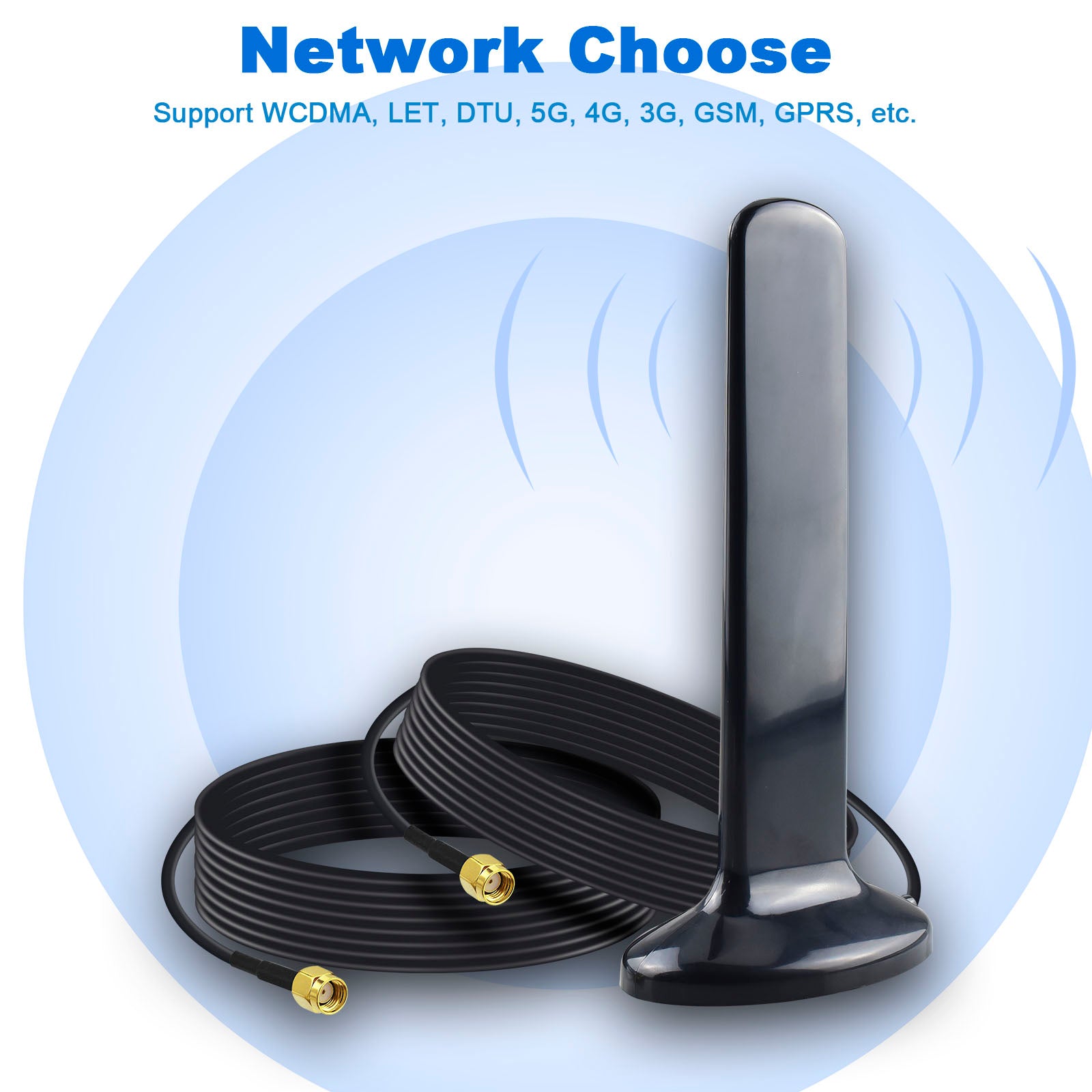

  • Pair of black paddle antennas with coiled cables and gold-tone RP-SMA connectors on a signal graphic
1 7

YILIANDUO 4G/5G Magnetic-Base Antenna Kit with Dual RP-SMA Cables

YILIANDUO 4G/5G Magnetic-Base Antenna Kit with Dual RP-SMA Cables

LD0008

$18.99 USD
$19.58 USD $18.99 USD
Sale Sold out
Shipping calculated at checkout.

Customized Services

We offer custom services. If you need a specific product, please contact us.

Shipping Methods

Standard shipping is selected by default. Orders over $200 are automatically upgraded to Express shipping.

High Quality Service

When you choose YILIANDUO , enjoy personalized after-sales service.

View full details

Compatibility Check

  • Two RP-SMA male cable ends with center sockets.
  • Two RP-SMA-to-TS9 adapters are included for devices that use compatible TS9 ports.
  • Listed cable: RG174; listed length: 2 m per cable; listed impedance: 50Ω.
  • Current product information lists 600–6000 MHz. Confirm the bands used by the final device and network before ordering.

What You Receive

  • 1 × black paddle-style magnetic-base antenna with two attached cables
  • 2 × RP-SMA-to-TS9 adapters

Product Details

  • Black paddle-style antenna body
  • Round magnetic base for placement on a suitable ferrous surface
  • Two separately routed coaxial cables

Performance and Environment Evidence

Independent gain, frequency-response, VSWR, power-handling, ingress-protection, material and signal-improvement reports are not currently published. 10dBi, waterproof, universal compatibility and guaranteed reception or speed claims are therefore not stated.

Before Use

Compare the RP-SMA center sockets and TS9 interfaces with the mating ports, confirm the required frequency bands, and test the complete installation before permanent use.
