Frequency range: 698–960MHz, 1710–2170MHz and 2300–2700MHz.

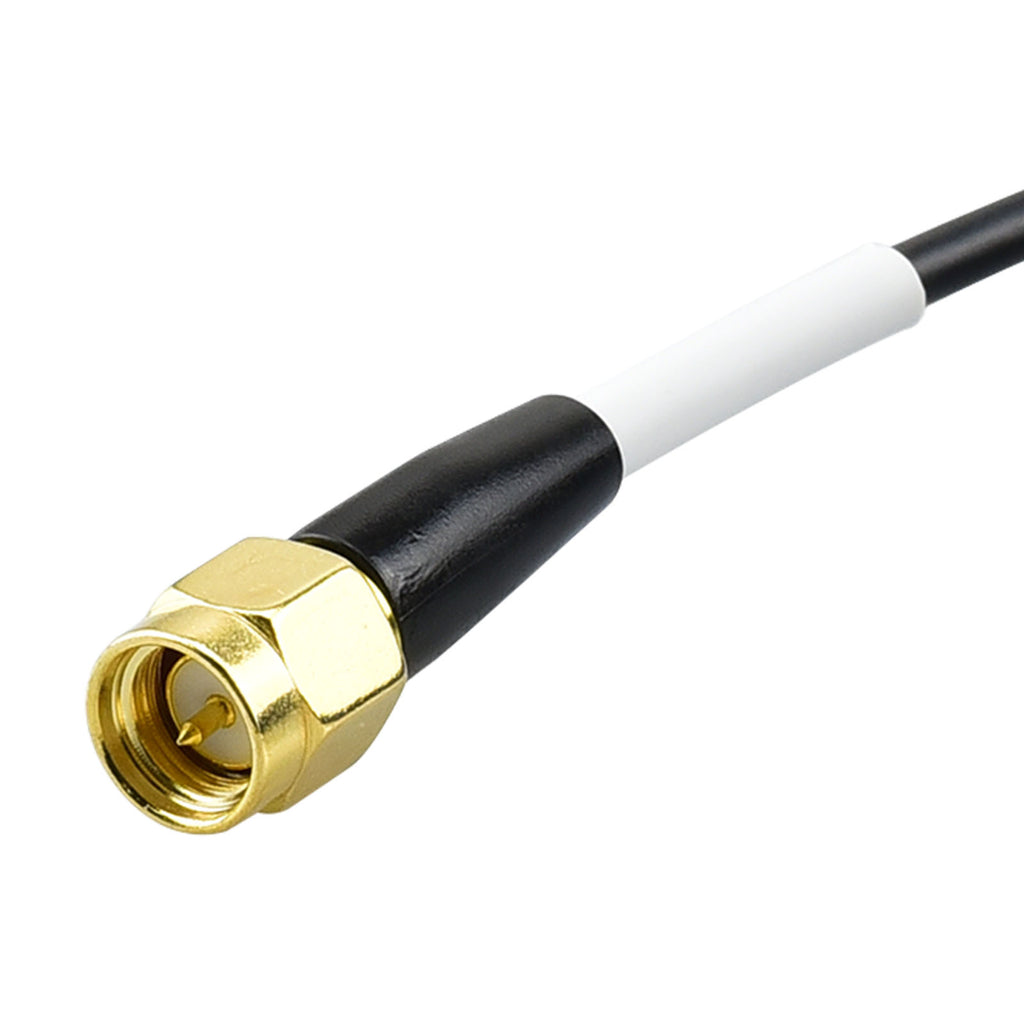

Connector: SMA Male with a center pin.
Cable: 3m RG174.
Check that your device has an SMA Female center-hole port and uses one of the listed bands.

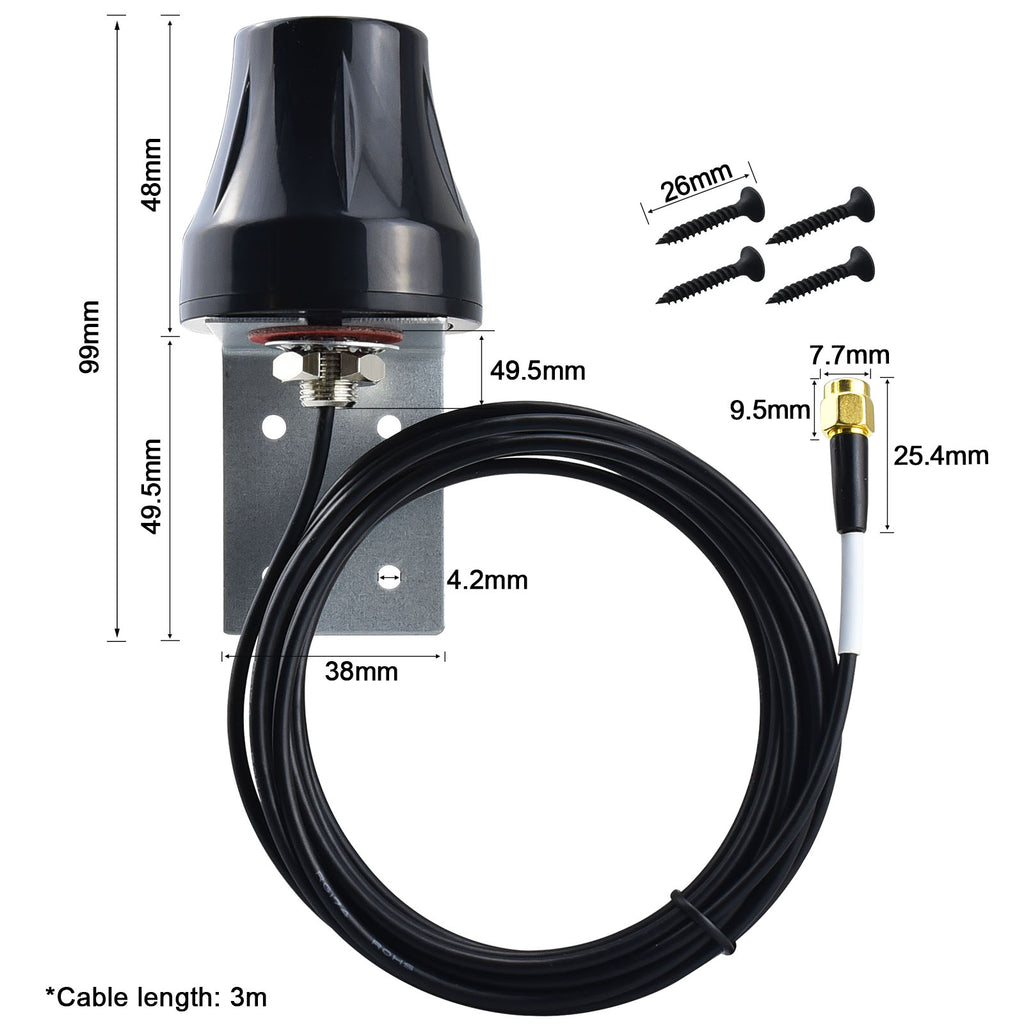

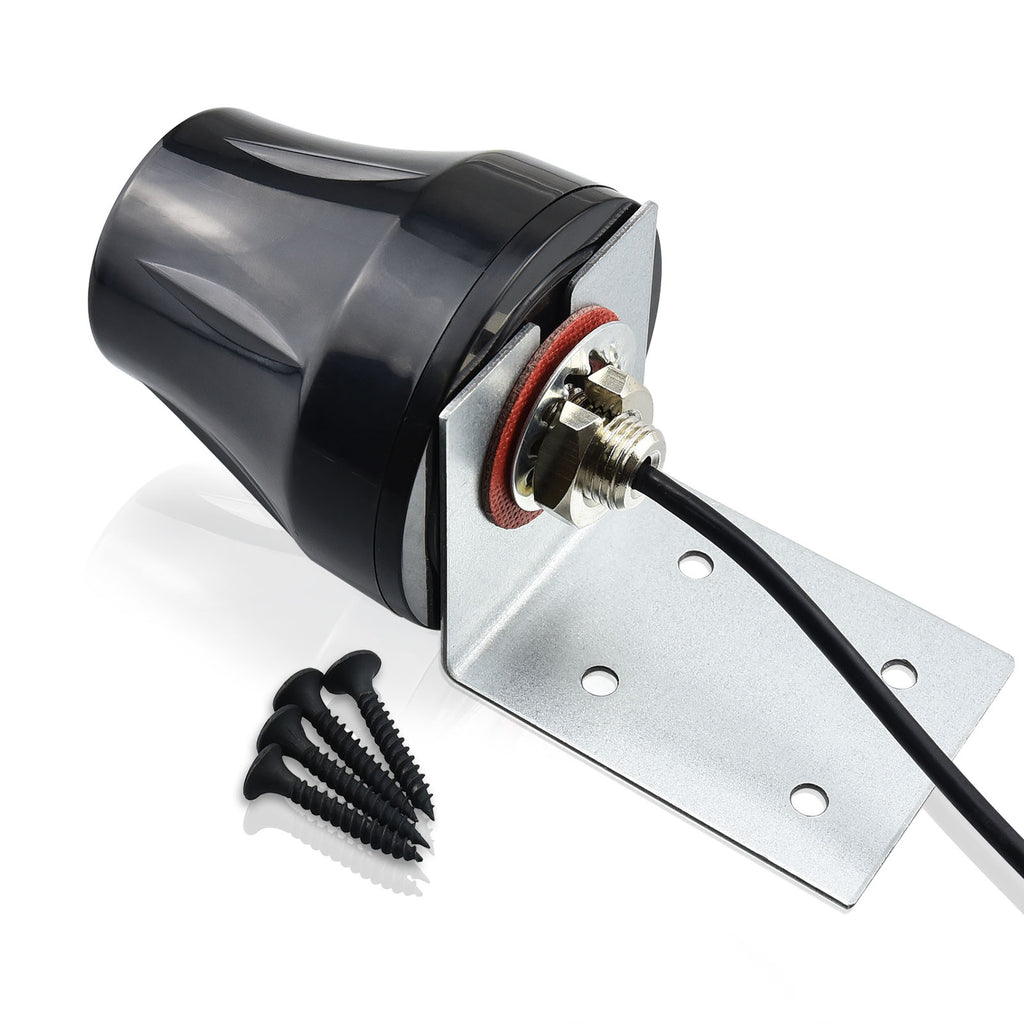

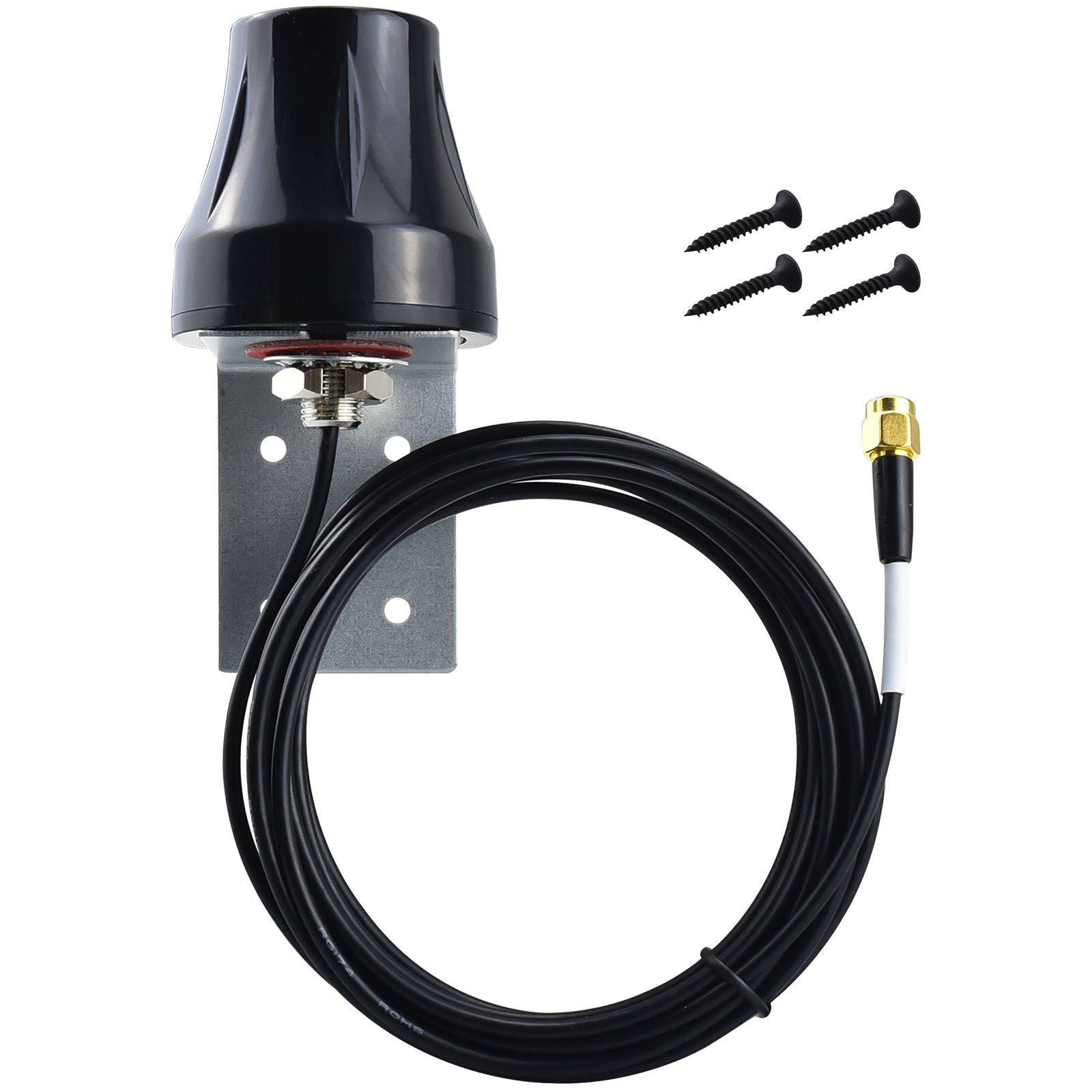

What You Receive
1 × wall-mount antenna with 3m cable
1 × L-shaped mounting bracket
4 × mounting screws
Specifications
Published gain: 5dBi
Impedance: 50Ω
Radiation: omnidirectional
Measured Performance
An independent frequency-sweep report and 3m cable-loss report are not currently published.

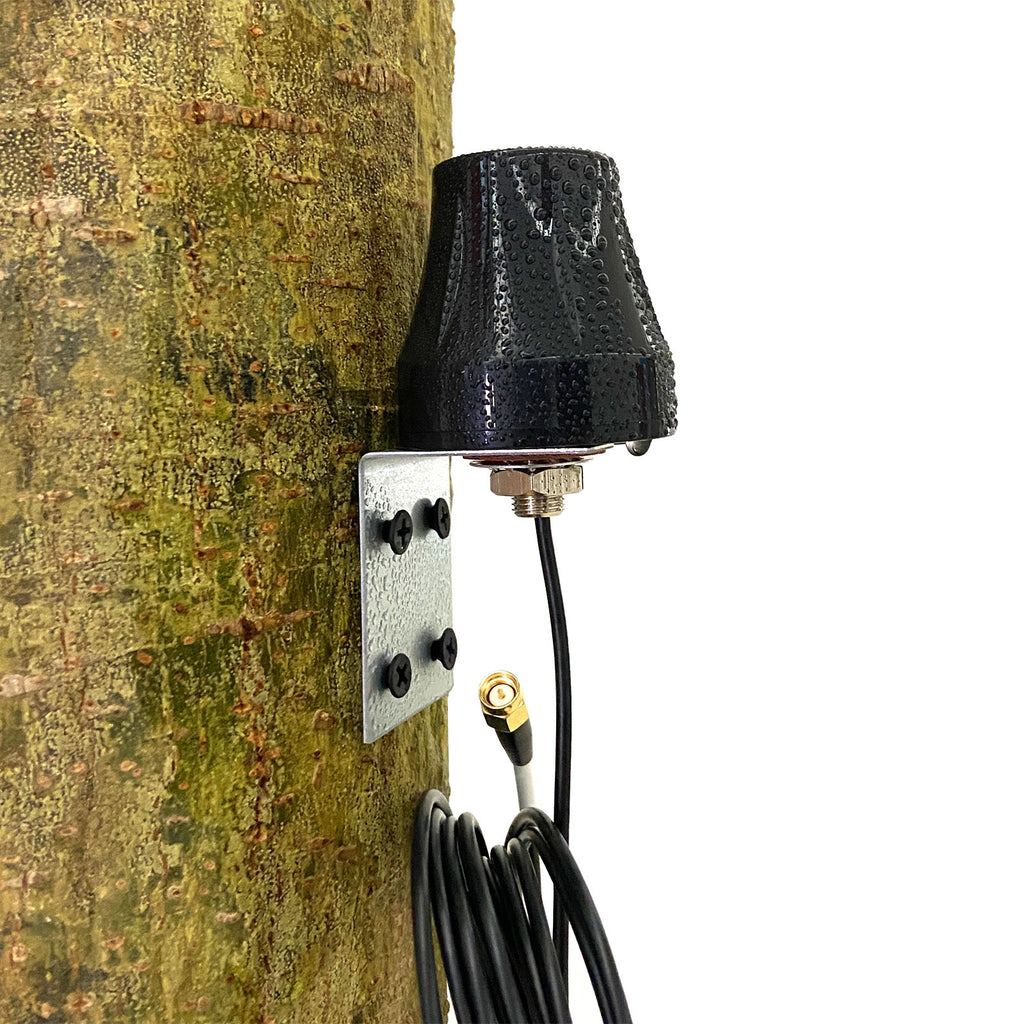

Installation
Install in a clear position. No independent IP-rating certificate is currently published. For outdoor use, weather-seal the RF connection and cable entry, and provide suitable grounding and lightning protection.
Customized Services
We offer custom services. If you need a specific product, please contact us.
