4G LTE Antenna Kit, SMA Male with TS9 Pigtail, 3m RG174, Wall Mount
4G LTE Antenna Kit, SMA Male with TS9 Pigtail, 3m RG174, Wall Mount
SKU:OL-6043
In stock
Couldn't load pickup availability
Customized Services
Customized Services
We offer custom services. If you need a specific product, please contact us.
Free Shipping & Delivery
Free Shipping & Delivery
Free shipping on all orders. Orders below US$200 ship by Standard. Orders of US$200 or more automatically receive a free Express upgrade.
Order processing and carrier transit are separate. Confirm your delivery estimate before a time-sensitive purchase. See our Shipping Policy.
High Quality Service
High Quality Service
When you choose YILIANDUO , enjoy personalized after-sales service.
Description
Connect a cellular antenna to equipment with matching ports and supported frequency bands.
Quick Specs

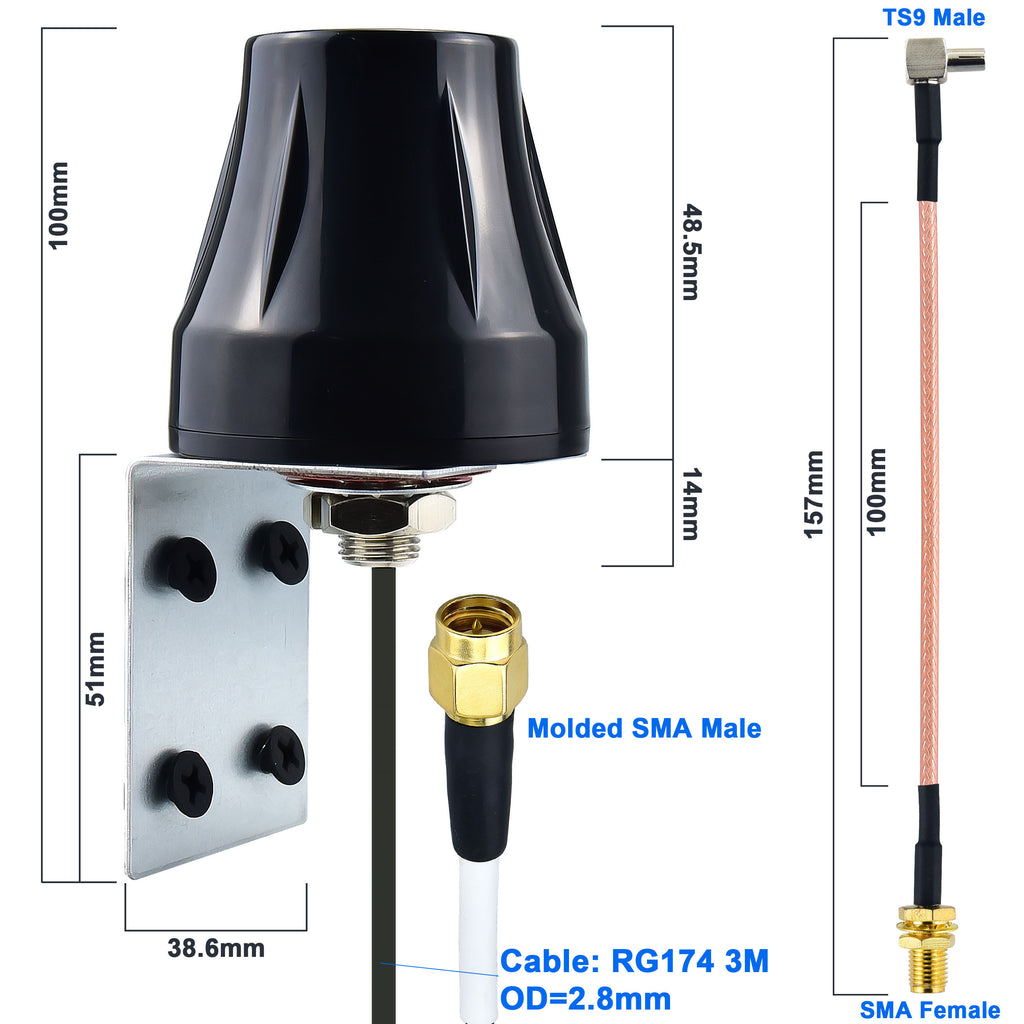

- Main antenna connector: SMA Male with a center pin.
- Adapter cable: SMA Female to right-angle TS9 Male, approximately 15cm.
- Main cable: 3m RG174.
- Impedance: 50 Ω
- Frequency range: 698–2700 MHz
- Gain: 7–10 dBi; omnidirectional
- VSWR: ≤ 1.50
- Polarization: Vertical
- Power handling: 50 W
- Cable construction: 3 m RG174, 50 Ω

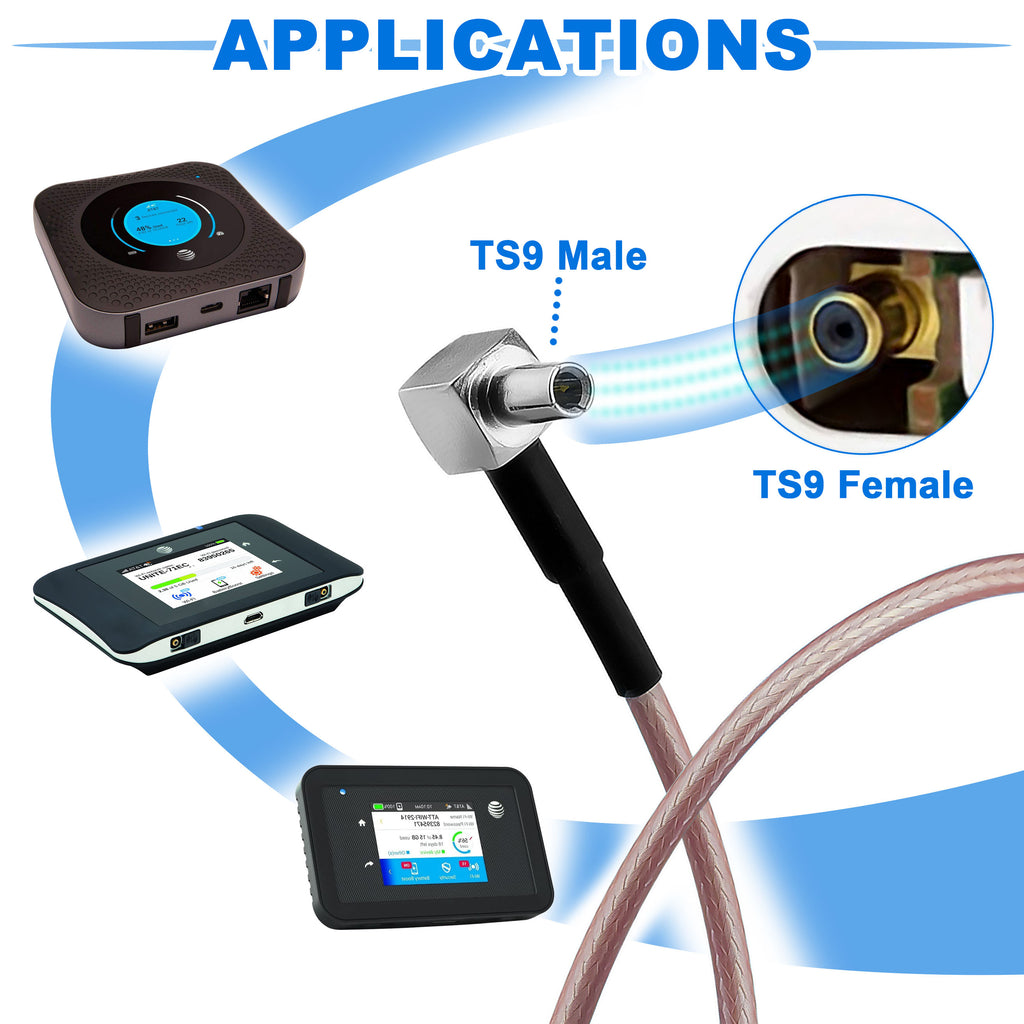

Compatibility
| Application | Compatibility requirements |
|---|---|
| Cellular | Use equipment operating within the frequency bands in Quick Specs and with matching antenna ports. |
- Confirm that your device uses a TS9 port and one of the listed bands before ordering.

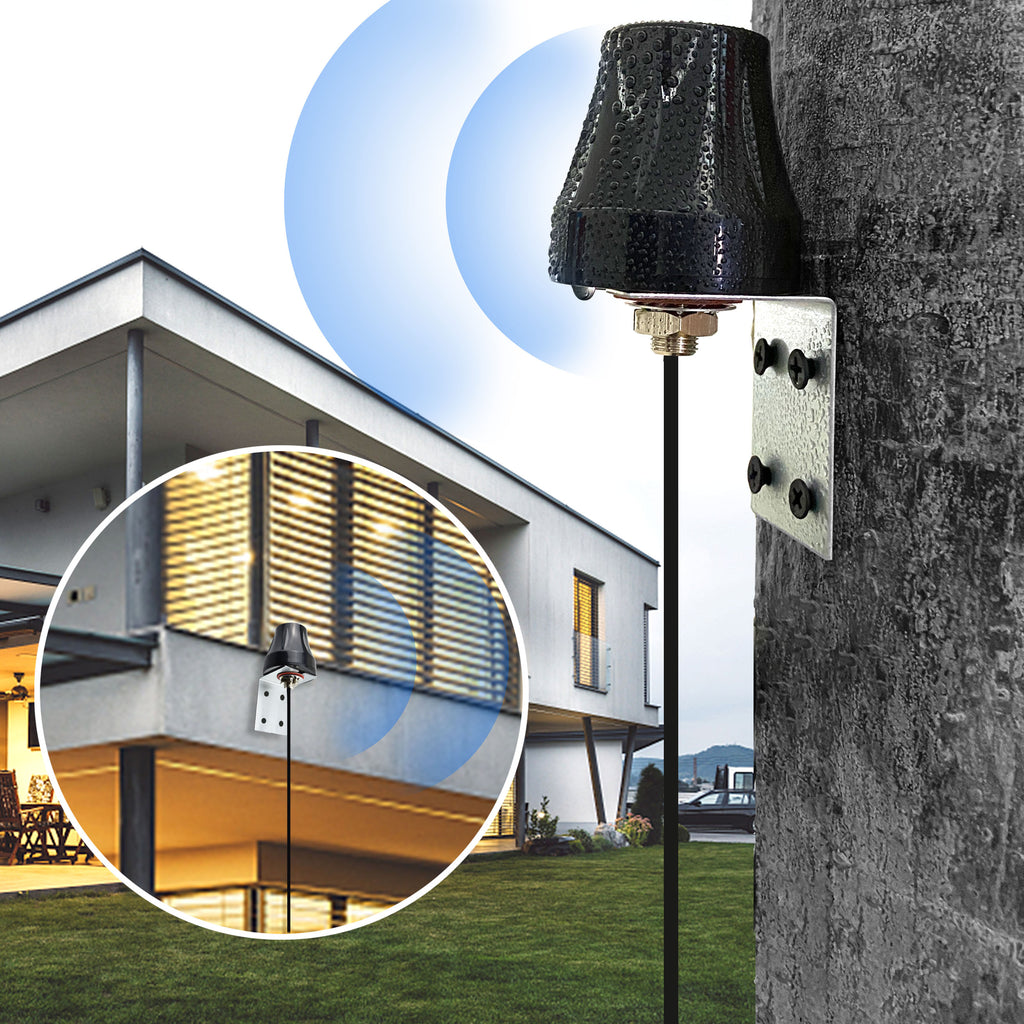

Mechanical & Installation
- Install in a clear position. For outdoor use, weather-seal the RF connection and cable entry, and provide suitable grounding and lightning protection.
- IP Rating: IP66
- Operating temperature: −40°C to +80°C

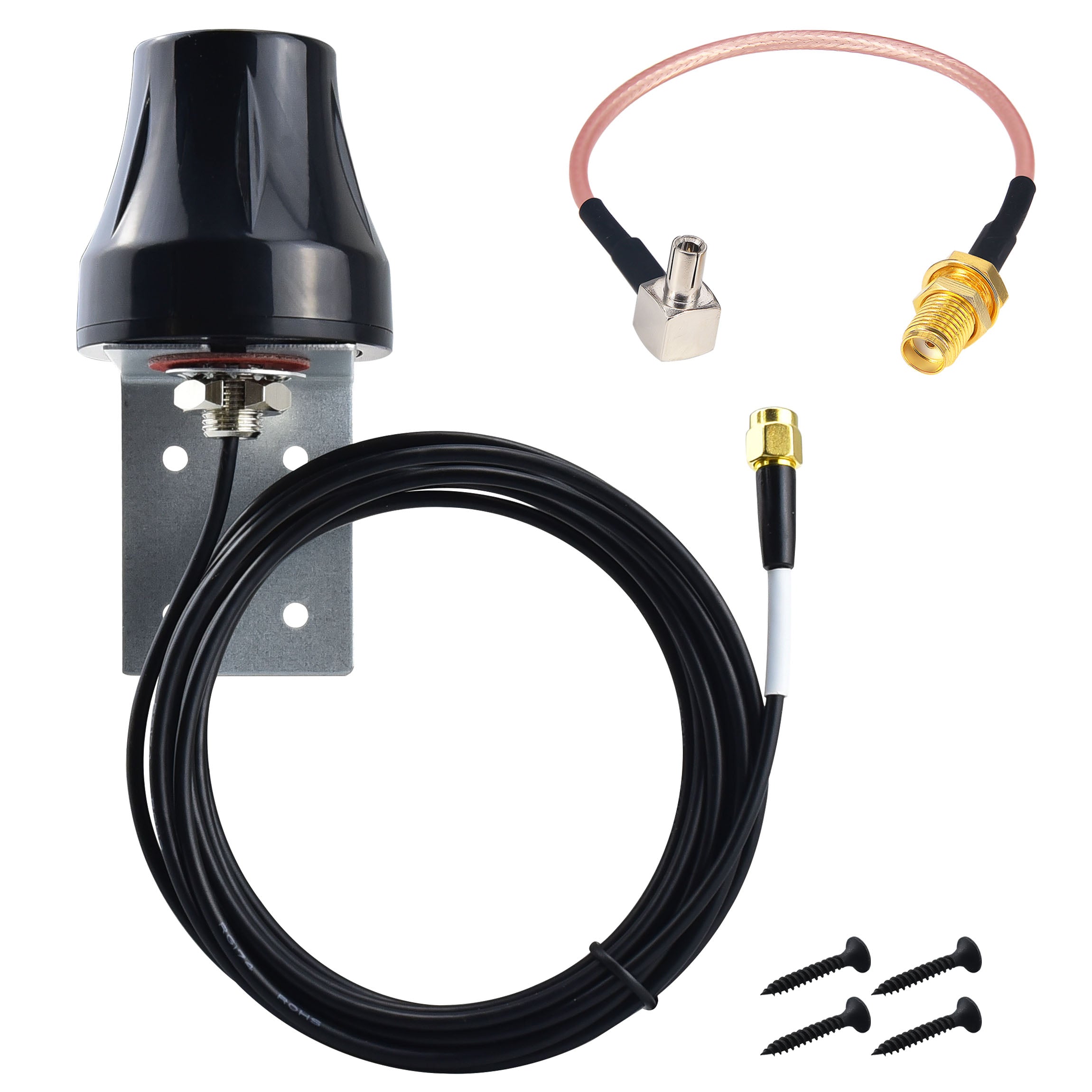

Package Contents
- 1 × wall-mount antenna with 3m cable
- 1 × SMA Female to TS9 Male adapter cable
- 1 × L-shaped mounting bracket
- 4 × mounting screws
Product reference: OL-6043
Compare related antennas. For connection checks or quantity requirements, send a custom or bulk inquiry with the product reference and mating-port details.
