Dual‑Band Reception: Professional 978MHz & 1090MHz dual‑band design, optimized for ADS‑B aviation signal & SDR reception.
High Gain Performance: 6dBi omni‑directional gain, improves signal sensitivity & expands aircraft tracking range.

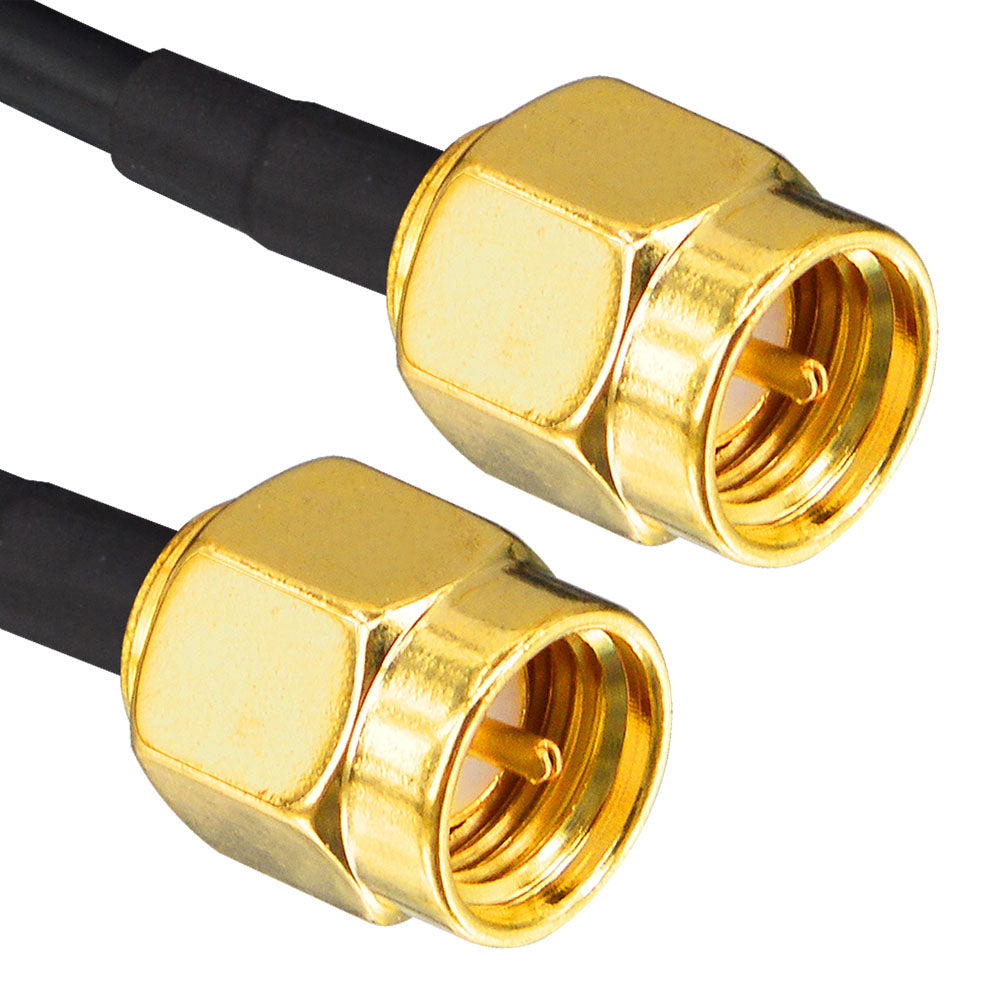

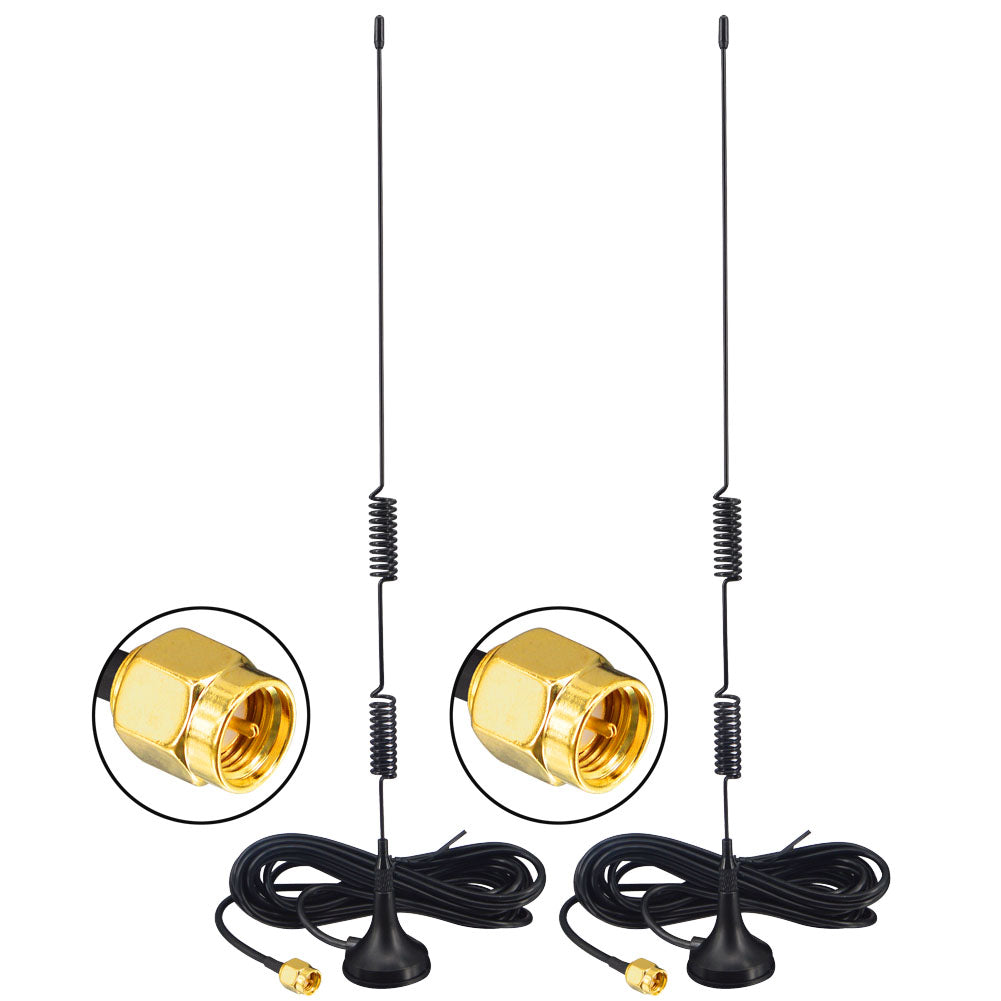

Standard SMA Male Connector: Inner pin, plug‑and‑play with RTL‑SDR, ADS‑B receivers, Stratux kits (match SMA female ports).

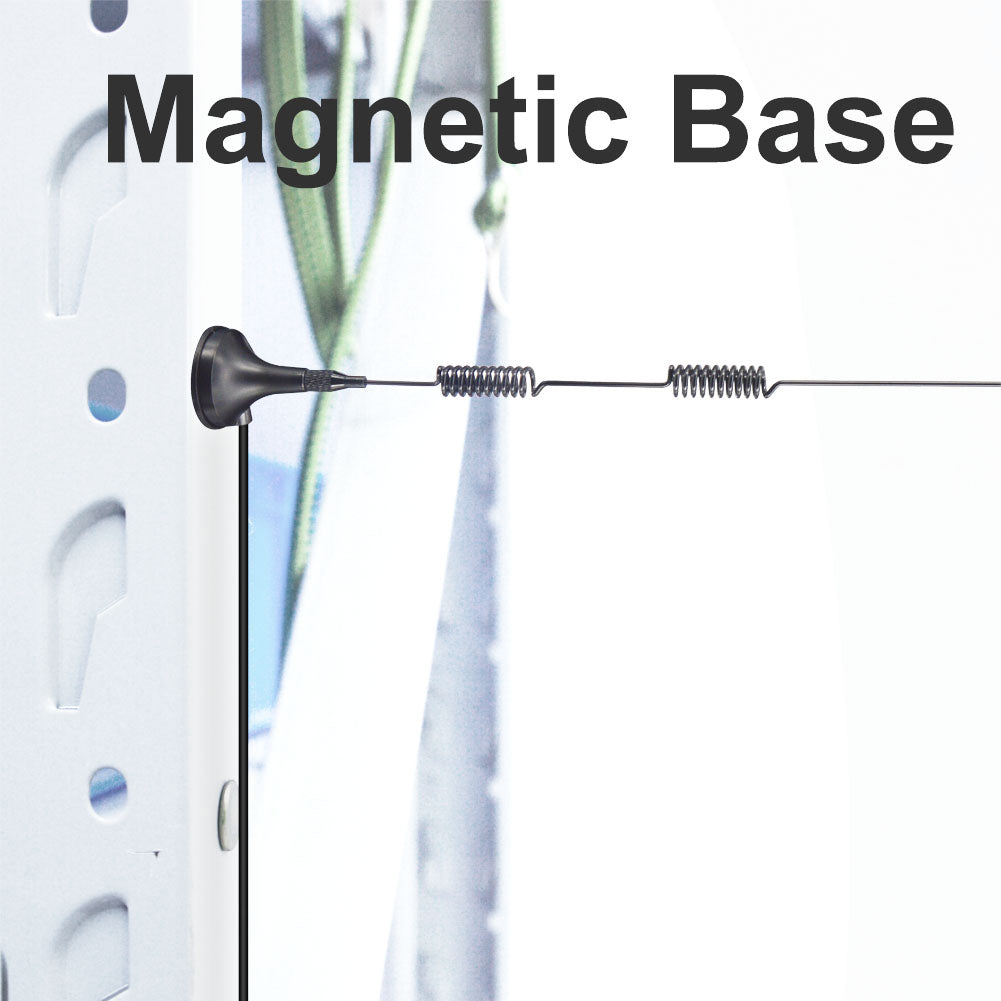

Strong Magnetic Mount: Secure magnetic base for fast installation on metal surfaces (windowsill, roof, vehicle, equipment case).
Low‑Loss RG174 Cable: 1.5M/3M length, 50Ω impedance, VSWR ≤1.5, stable transmission with minimal signal attenuation.
Description

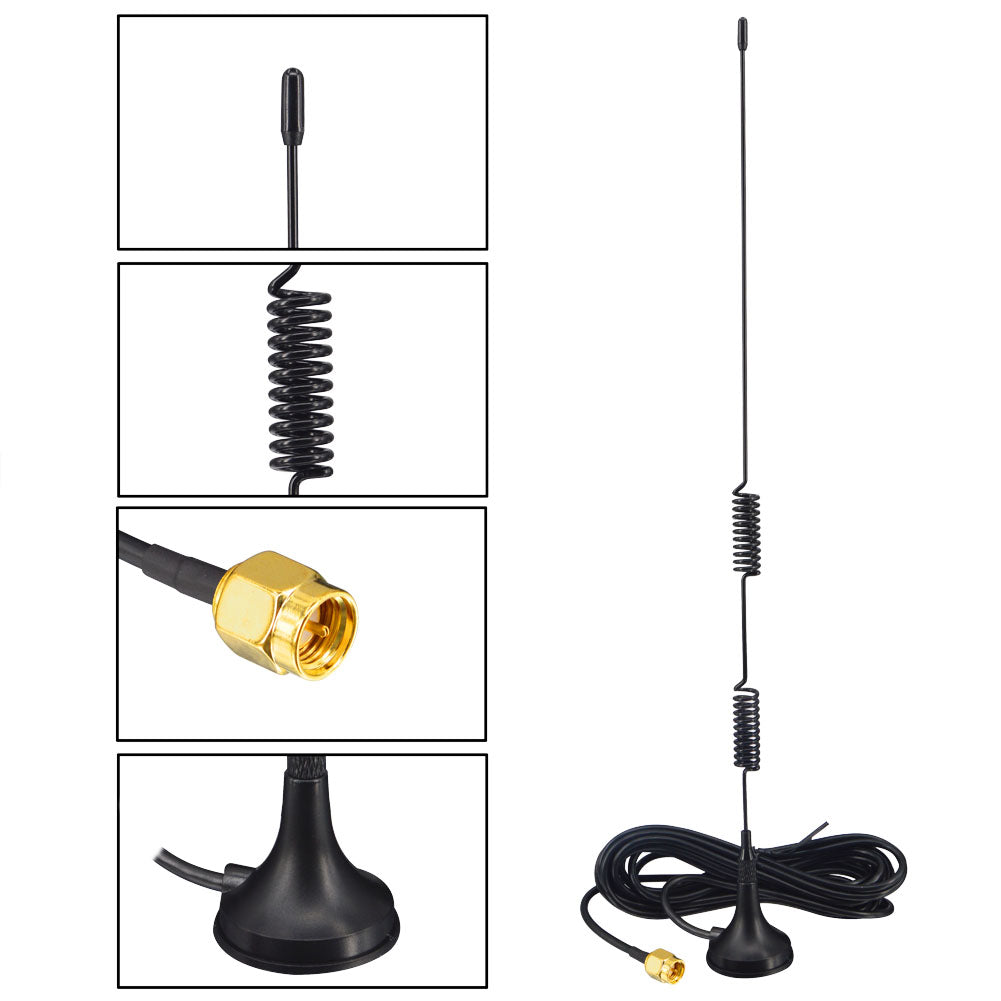

This 1090MHz/978MHz dual‑band high‑gain magnetic antenna is purpose‑built for ADS‑B aircraft monitoring and software‑defined radio (SDR) applications. Engineered with a 6dBi omni‑directional radiation pattern, it delivers stable, long‑range signal capture for flight tracking setups based on Raspberry Pi, RTL‑SDR dongles, and dedicated ADS‑B receivers.
Built with industrial‑grade RG174 coaxial cable (1.5/3 meters) and 50Ω standard impedance, the antenna ensures low signal loss and consistent performance with VSWR ≤1.5, minimizing interference and maximizing reception quality. The standard SMA male connector (inner pin) offers wide compatibility with most SDR receivers, ADS‑B decoders, and Stratux aviation kits, enabling true plug‑and‑play installation.
The strong magnetic base allows tool‑free, secure mounting on any ferrous surface, making it ideal for indoor desktop, outdoor rooftop, vehicle, and portable field use. Whether you are a hobbyist building a home flight tracking station, a technician maintaining radio equipment, or a B2B buyer sourcing reliable RF accessories, this antenna provides durable performance and excellent value.
Each pack includes two complete antennas, fully tested before shipping to meet professional reception standards for aviation and SDR systems.
Specifications
Frequency Band: 978MHz / 1090MHz
Gain: 6dBi
Connector: SMA Male (inner pin)
Cable Type: RG174 Coaxial Cable
Cable Length: 1.5M/3M
Impedance: 50Ω
VSWR≤1.5
Direction: Omni‑directional
Mounting: Magnetic Base
Application Scenarios

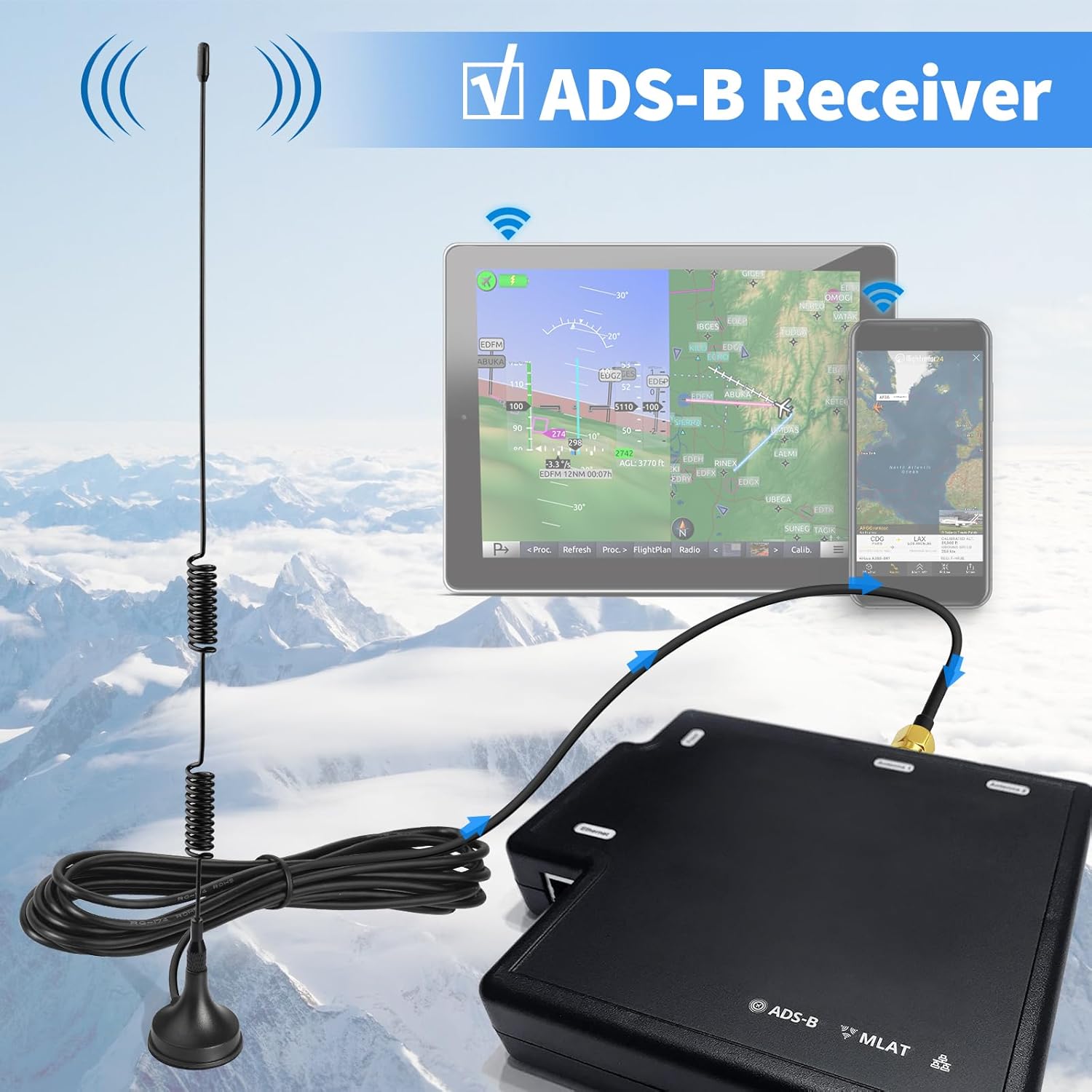

ADS‑B aviation flight tracking receivers

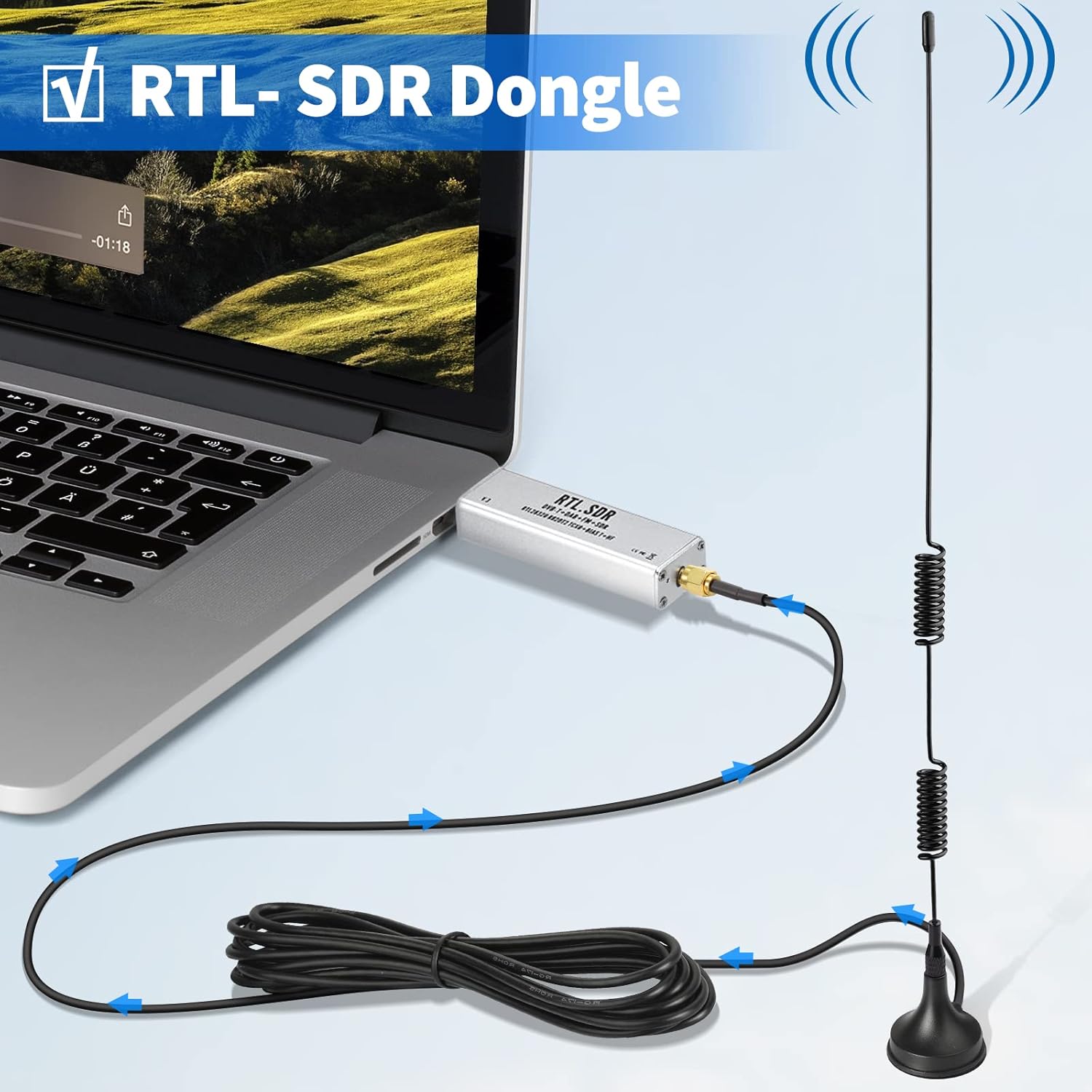

RTL‑SDR software defined radio USB dongles
Stratux aviation kits & Raspberry Pi ground stations
RF signal monitoring & SDR experimental projects
Industrial radio communication equipment
Hobbyist & professional flight monitoring setups
📦Package Includes

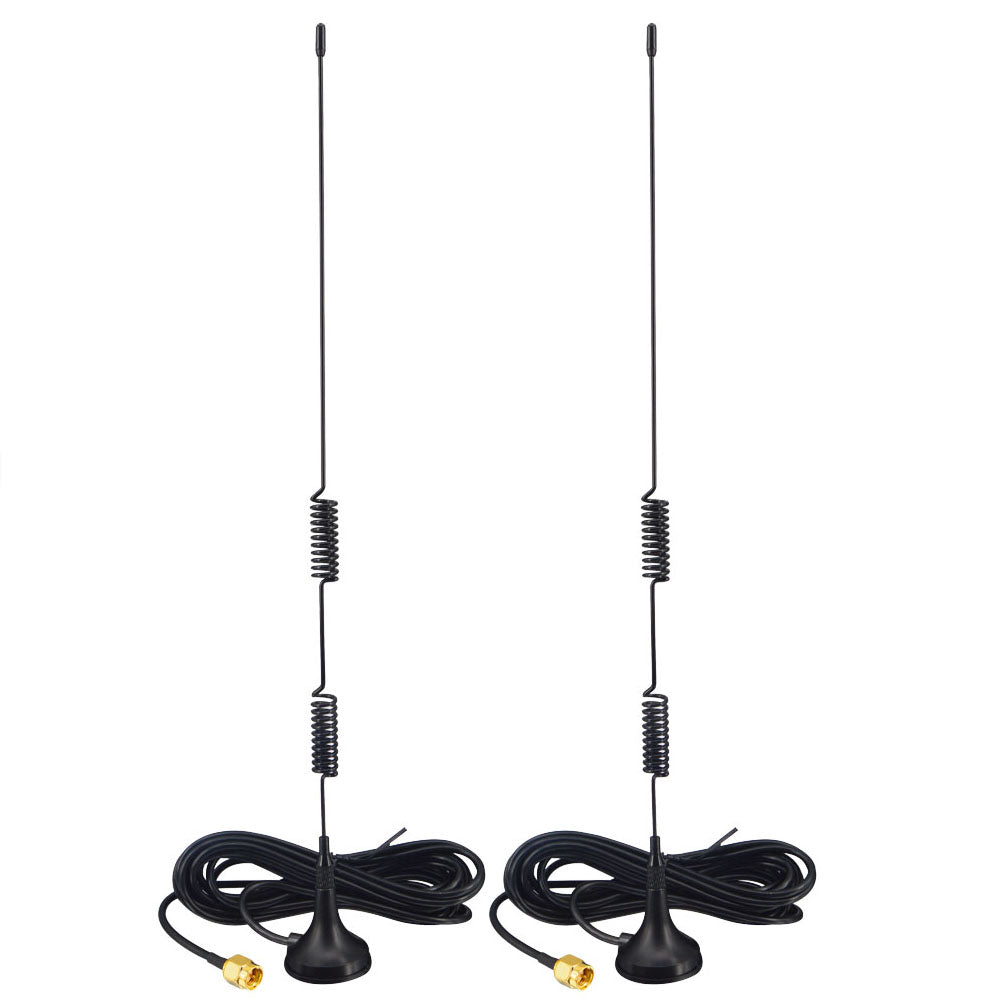

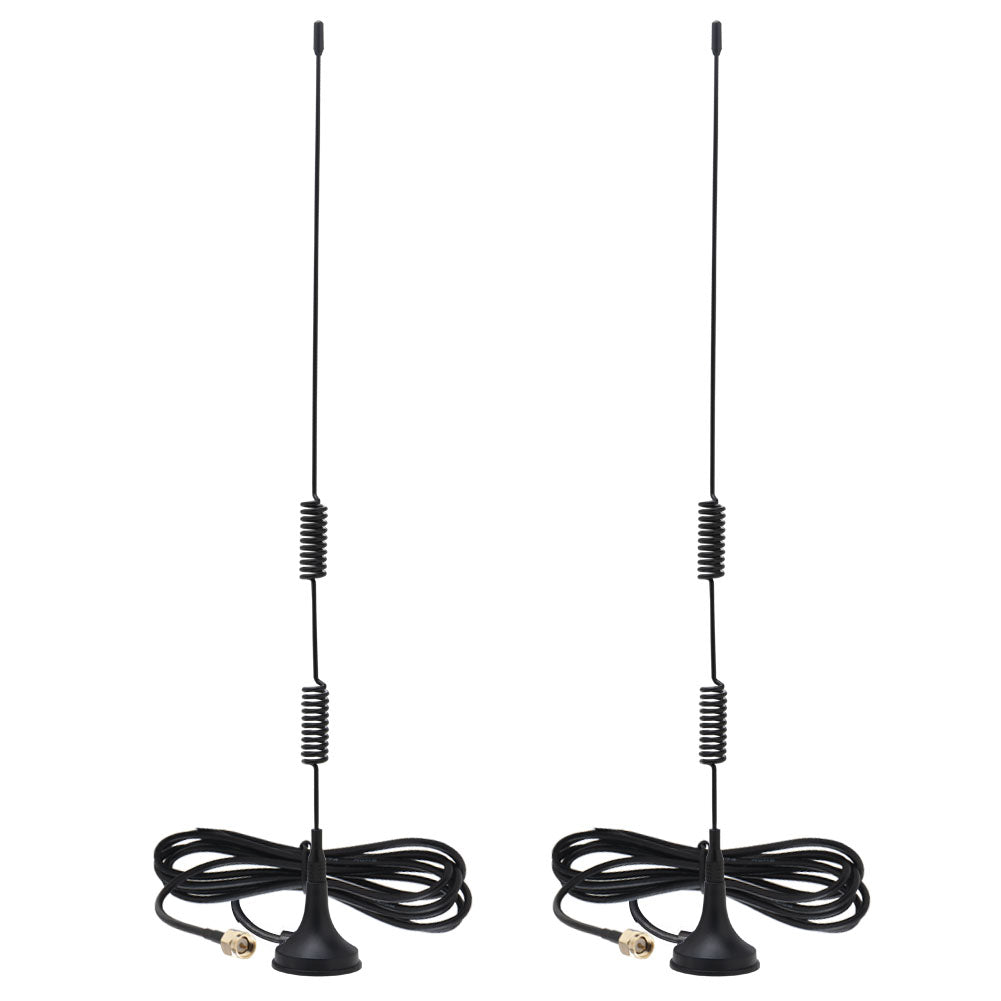

2 x 1090MHz Antennas
