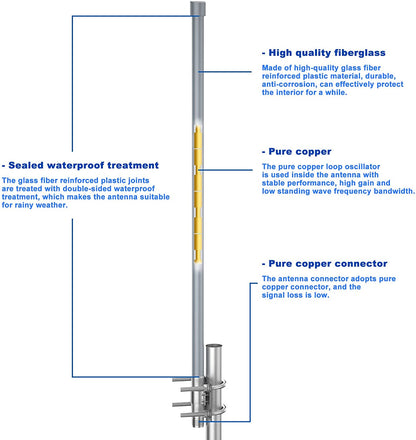

  • Long fiberglass antenna surrounded by mounting, weather and durability feature illustrations
1 7

868MHz LoRaWAN Antenna Kit, N Male, 80cm, with 5m Y240 RP-SMA Cable

868MHz LoRaWAN Antenna Kit, N Male, 80cm, with 5m Y240 RP-SMA Cable

OL-5624

$62.59 USD
$62.59 USD
Sale Sold out
Shipping calculated at checkout.

Customized Services

We offer custom services. If you need a specific product, please contact us.

Shipping Methods

Standard shipping is selected by default. Orders over $200 are automatically upgraded to Express shipping.

High Quality Service

When you choose YILIANDUO , enjoy personalized after-sales service.

View full details

Connect a compatible 868MHz LoRa or LoRaWAN gateway to an 80cm fiberglass antenna using the included 5m Y240 cable.

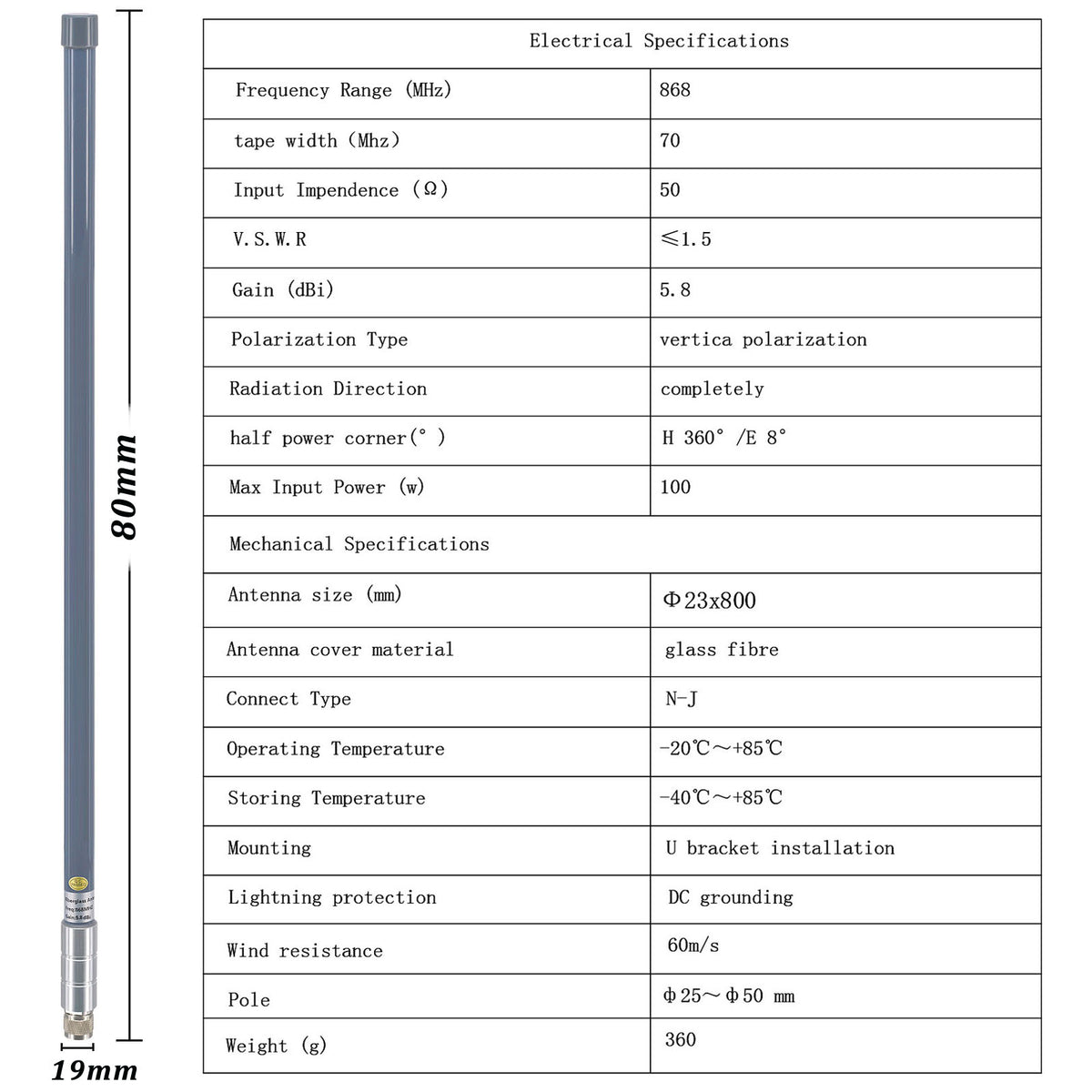

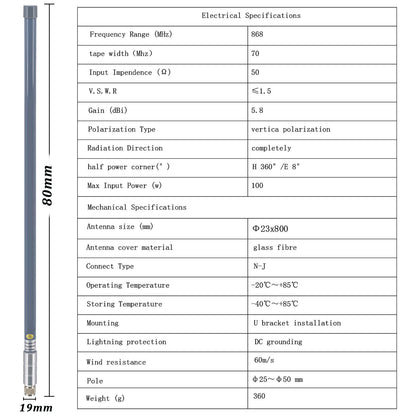

Quick Specs

  • Listed frequency range: 858–878MHz
  • Antenna connector: N male
  • Antenna length: 80cm

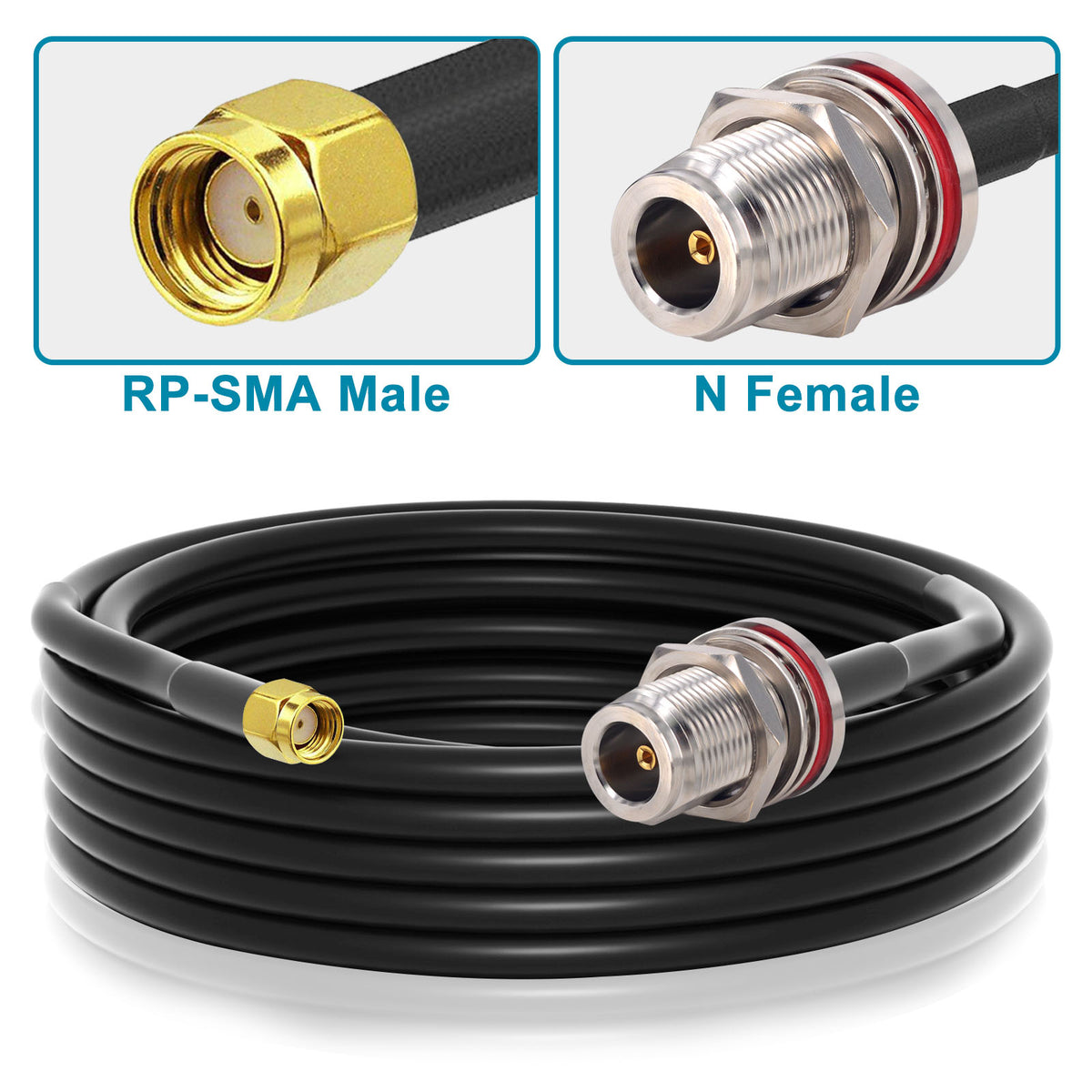

  • Extension cable: 5m Y240, N female to RP-SMA male
  • Listed impedance: 50Ω
  • VSWR: Not specified.

Compatibility

Application Compatibility requirements
LoRa / LoRaWAN Use equipment operating within the frequency bands in Quick Specs and with matching antenna ports.
  • This kit is listed for 868MHz systems, with a stated range of 858–878MHz. It is not intended for 915MHz systems.

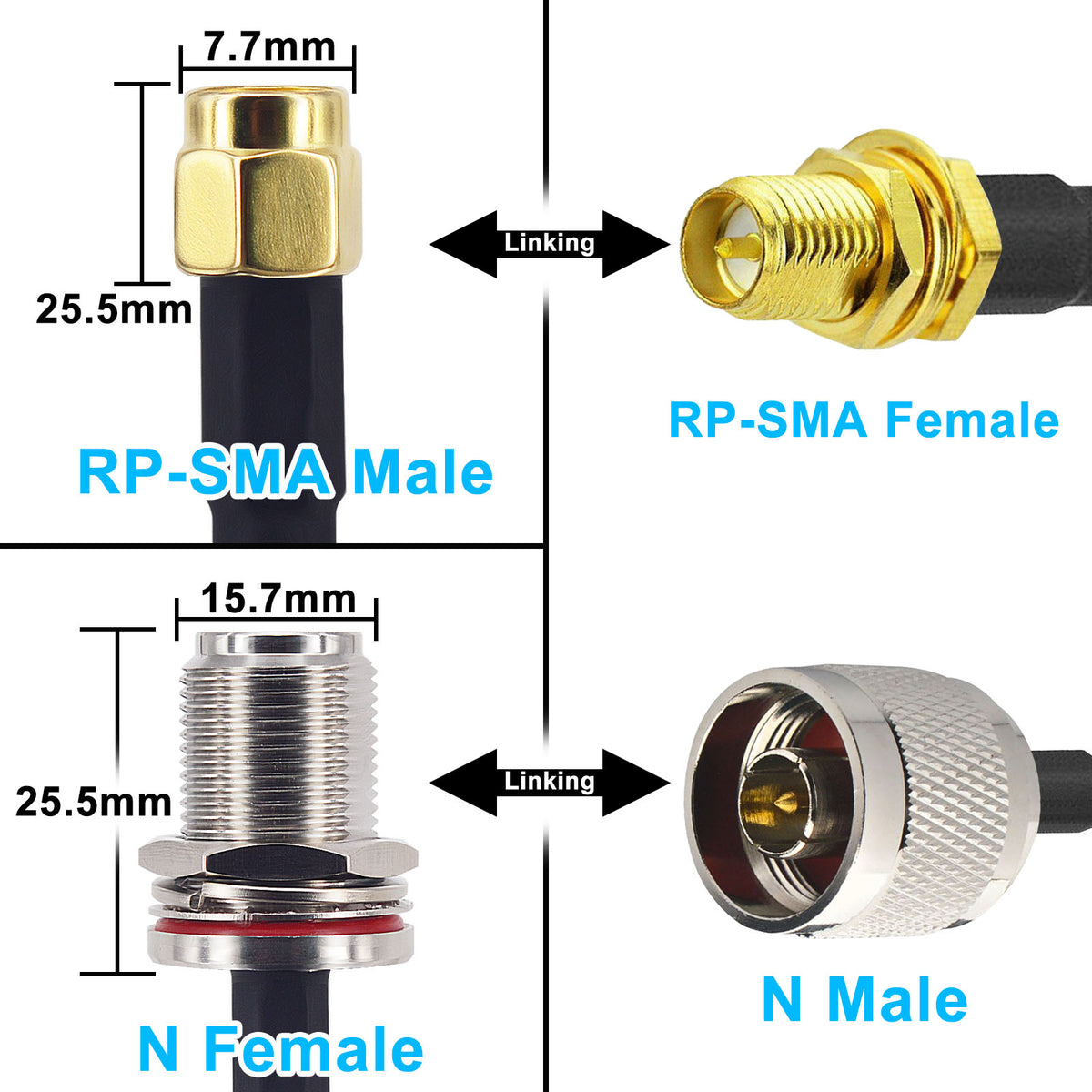

  • The cable ends in RP-SMA male. Check for a matching RP-SMA female port and verify the center contact, rather than choosing only by gateway brand.
  • Install vertically in an open position. Account for cable and connector loss; a frequency-sweep report and cable insertion-loss report are not published. Weather-seal outdoor connections and arrange suitable grounding and lightning protection.

Mechanical & Installation

  • Check connector clearance and support attached cables during installation.
  • IP Rating: Not specified. Protect exposed joints and cable entries as required by the installation.

Package Contents

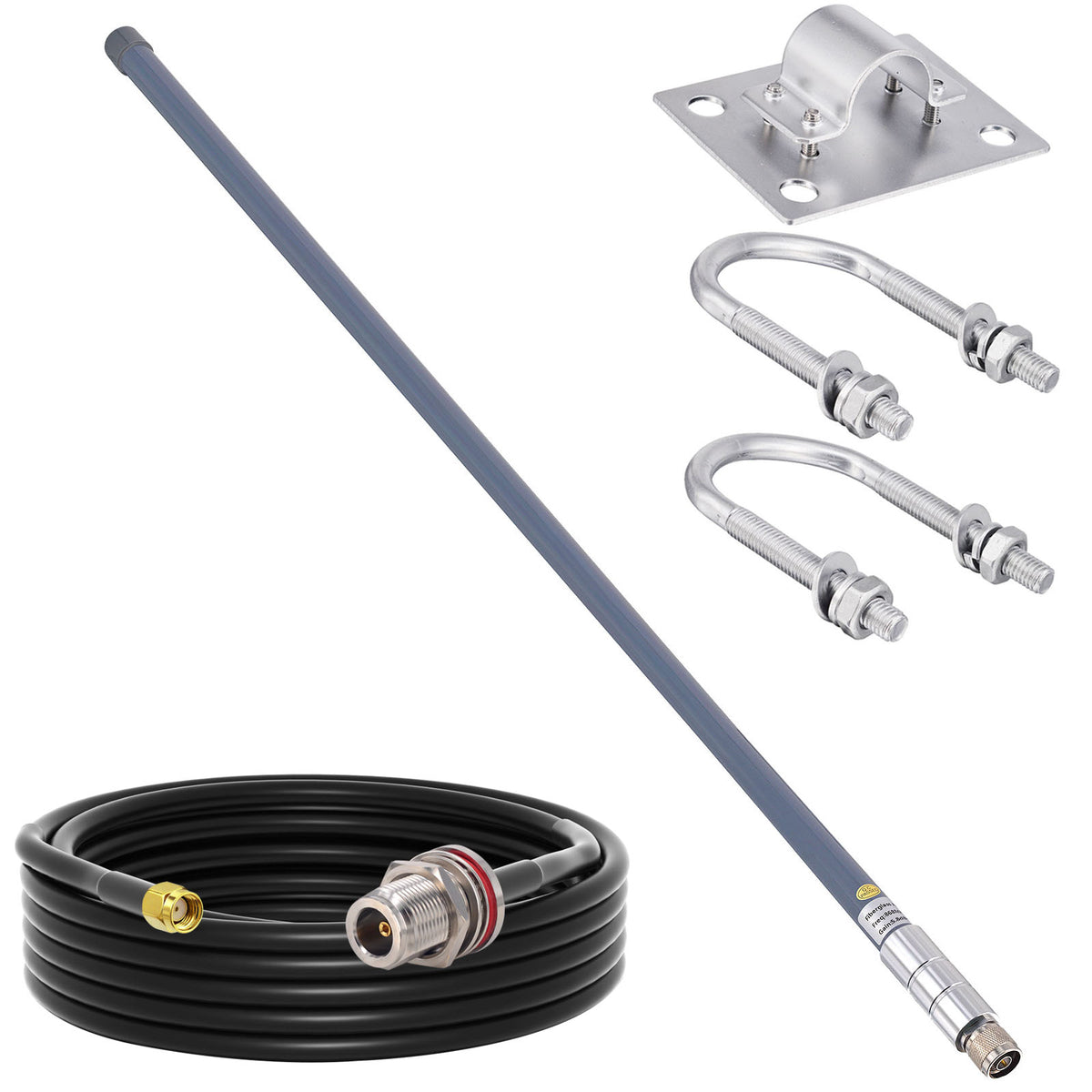

1 antenna, 1 extension cable and 2 mounting brackets.

Product reference: OL-5624

Compare related antennas. For connector checks or quantity requirements, send an inquiry with photos of the mating ports.
