F-Type Male/Female Coaxial Surge Protector, 75Ω, Grounding Terminal

Add an inline grounding connection to the specified coaxial interface as part of the complete site protection design.

Quick Specs

• Connector options: F Male to F Female or F Female to F Female.
• Listed impedance: 75Ω.
• Inline metal body with an external grounding terminal.
• Frequency range: Not specified for this assembly; confirm the operating band.
• VSWR: Not specified.

Compatibility

• Select the required connector configuration and confirm the grounding design before ordering.
• Connector options: F Male to F Female or F Female to F Female. Listed impedance: 75Ω. Inline metal body with an external grounding terminal. Select the required connector configuration and confirm the grounding design before ordering.

Mechanical & Installation

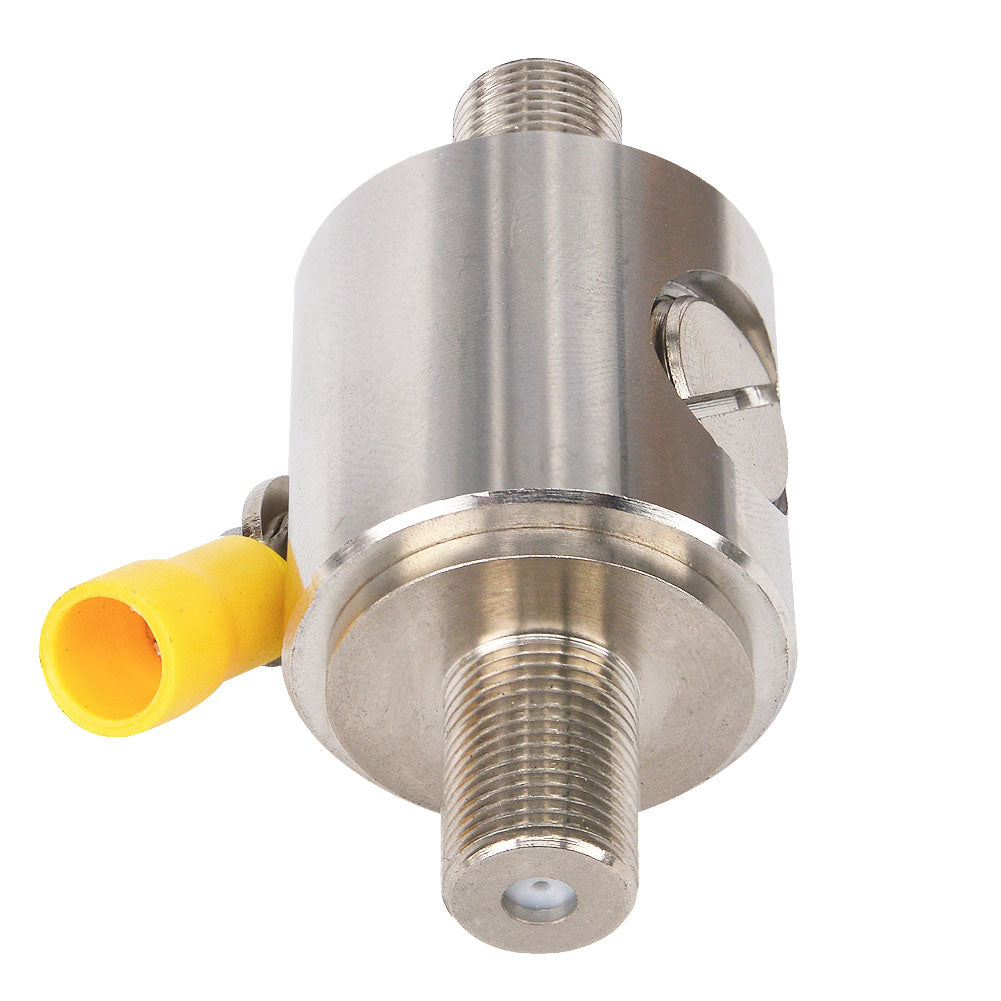

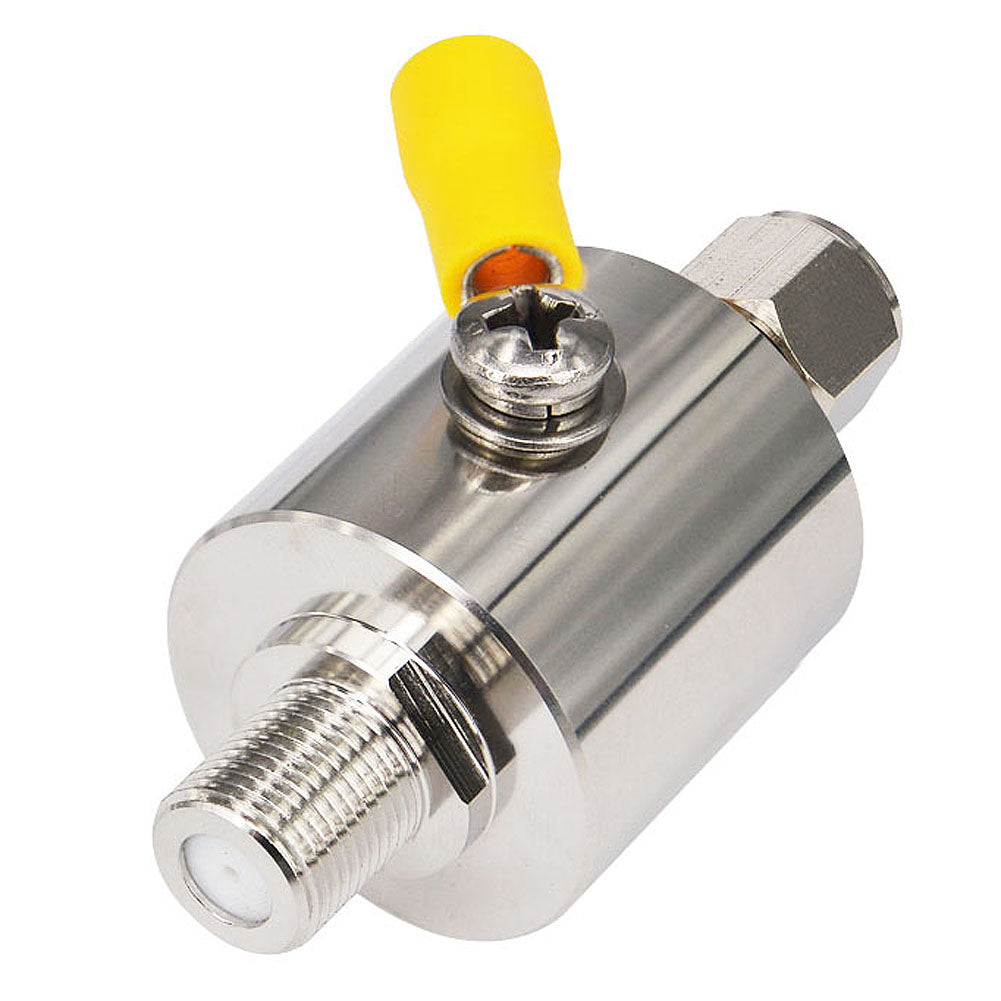

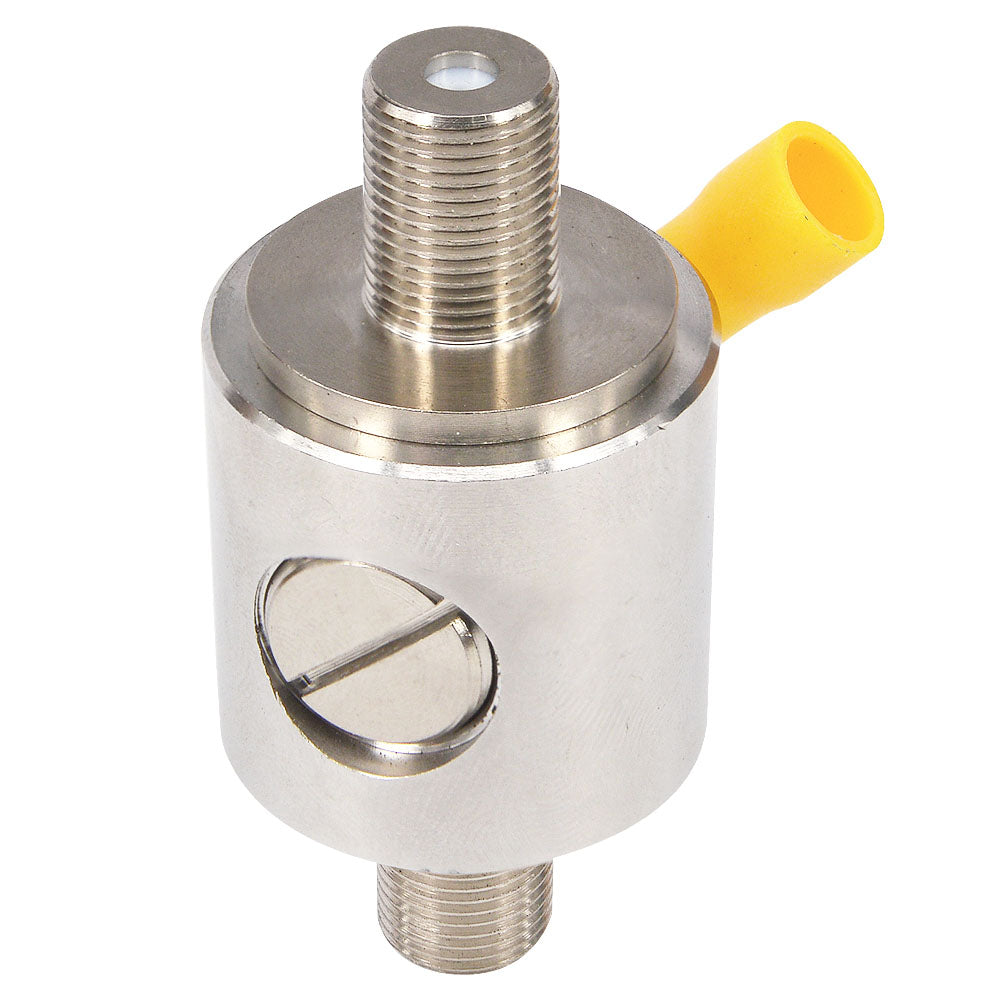

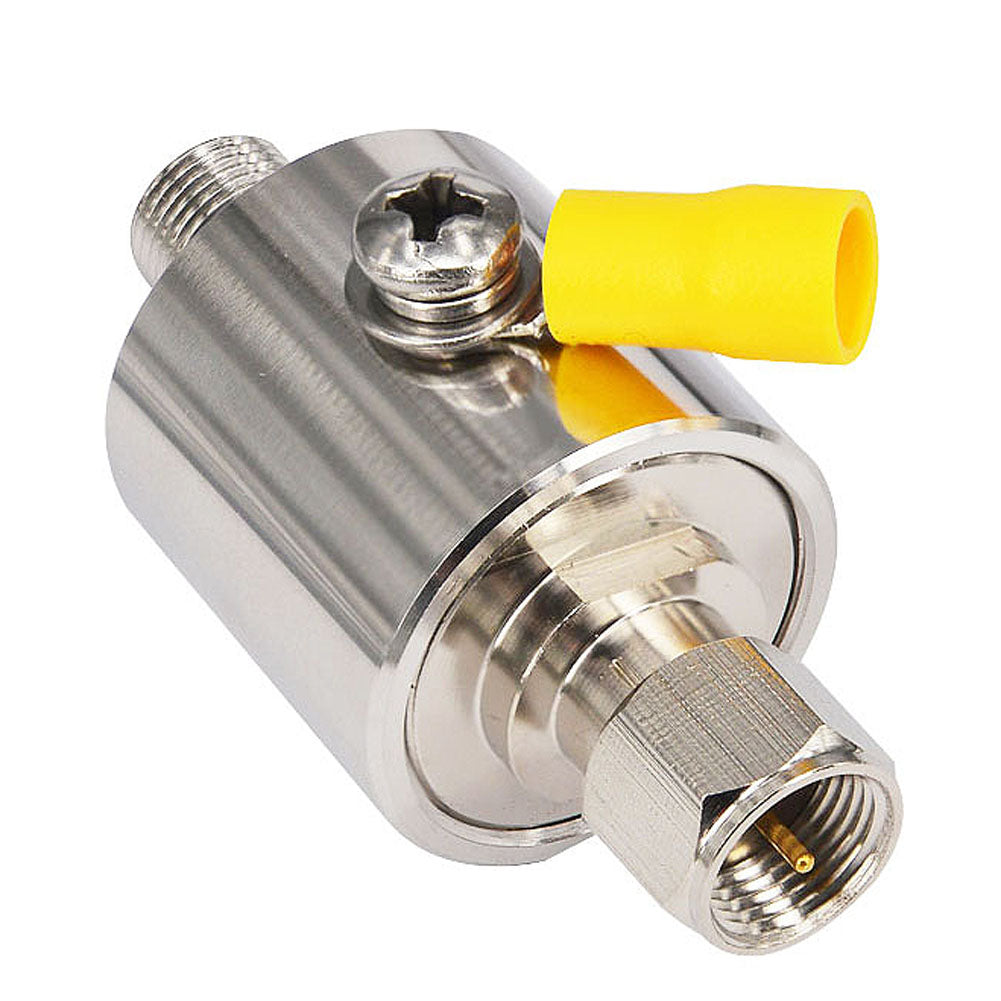

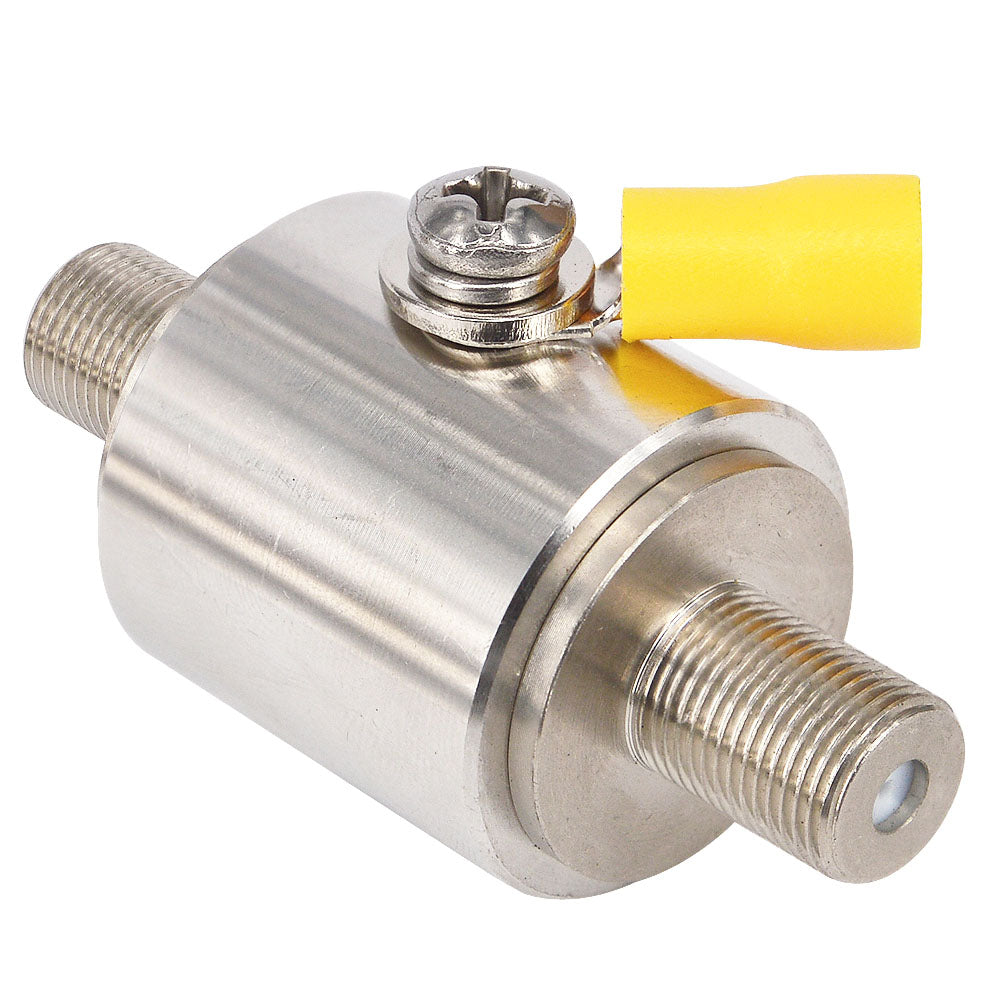

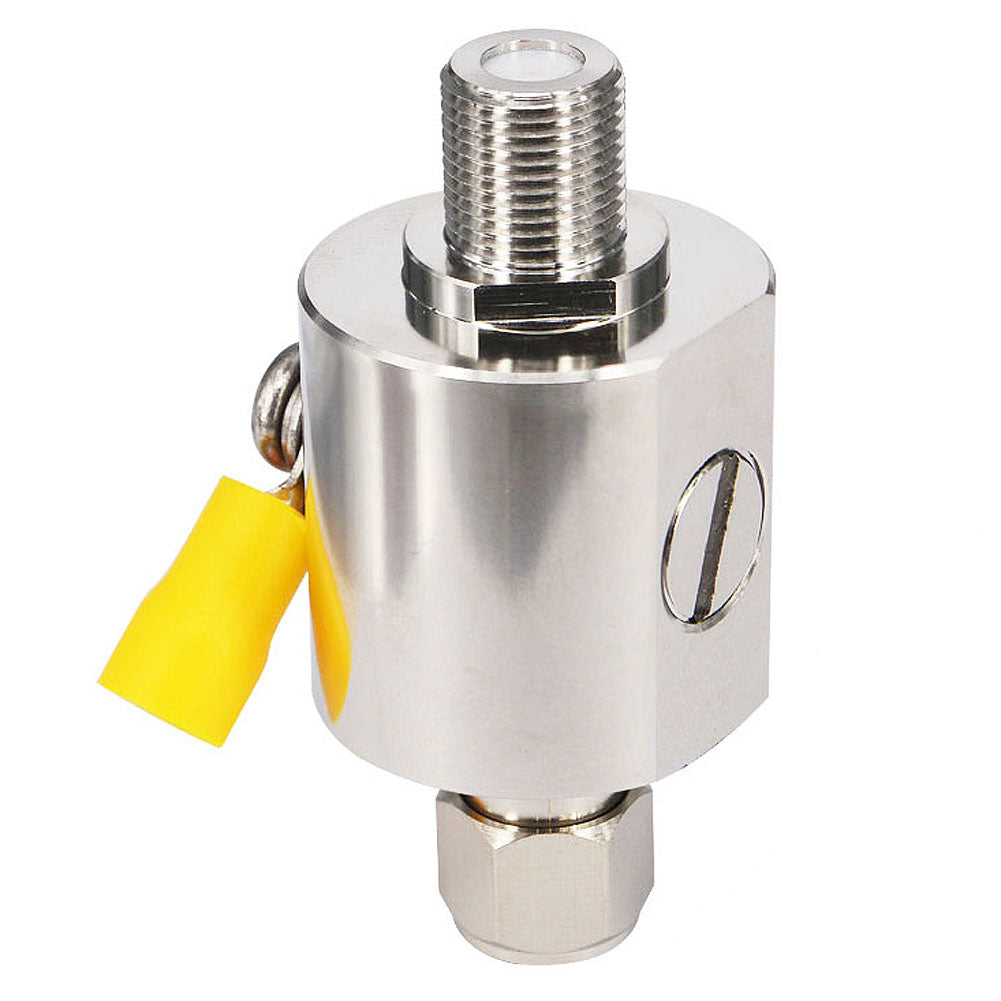

• Silver-tone cylindrical body
• F-type inline connection
• Screw-type grounding terminal with yellow insulating sleeve
• This component does not replace a complete grounding, bonding and lightning-protection design. Installation and verification should be performed by a qualified person using the requirements of the final site and equipment.
• IP Rating: Not specified. Protect exposed joints and cable entries as required by the installation.

Options & SKU Reference

Select one option. The selected variant determines the configuration supplied; the options shown below are not a mixed kit.

Package Contents

• 1 × F-type coaxial surge-protection device in the selected connector option

Product reference: OL-4256 / OL-4402

Compare related RF adapters. For connection checks or quantity requirements, send a custom or bulk inquiry with the product reference and mating-port details.
