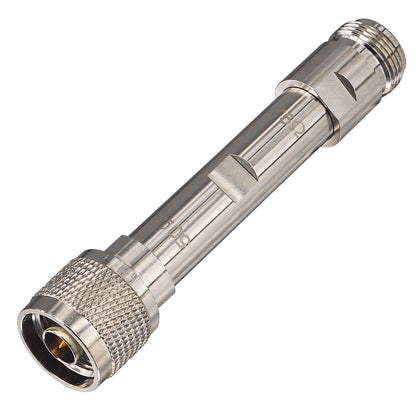

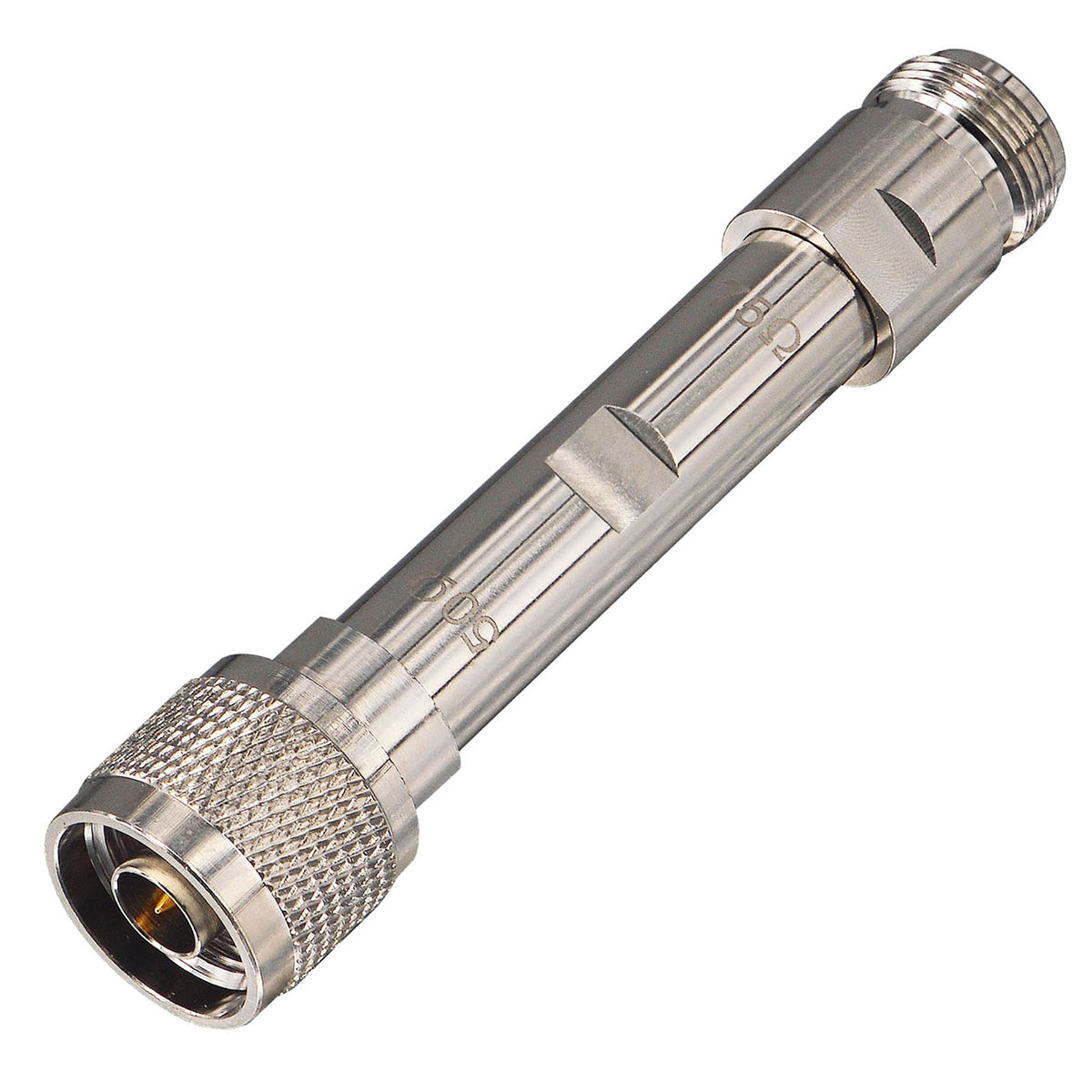

• Straight silver-tone N-type adapter with 50-ohm and 75-ohm markings on the body

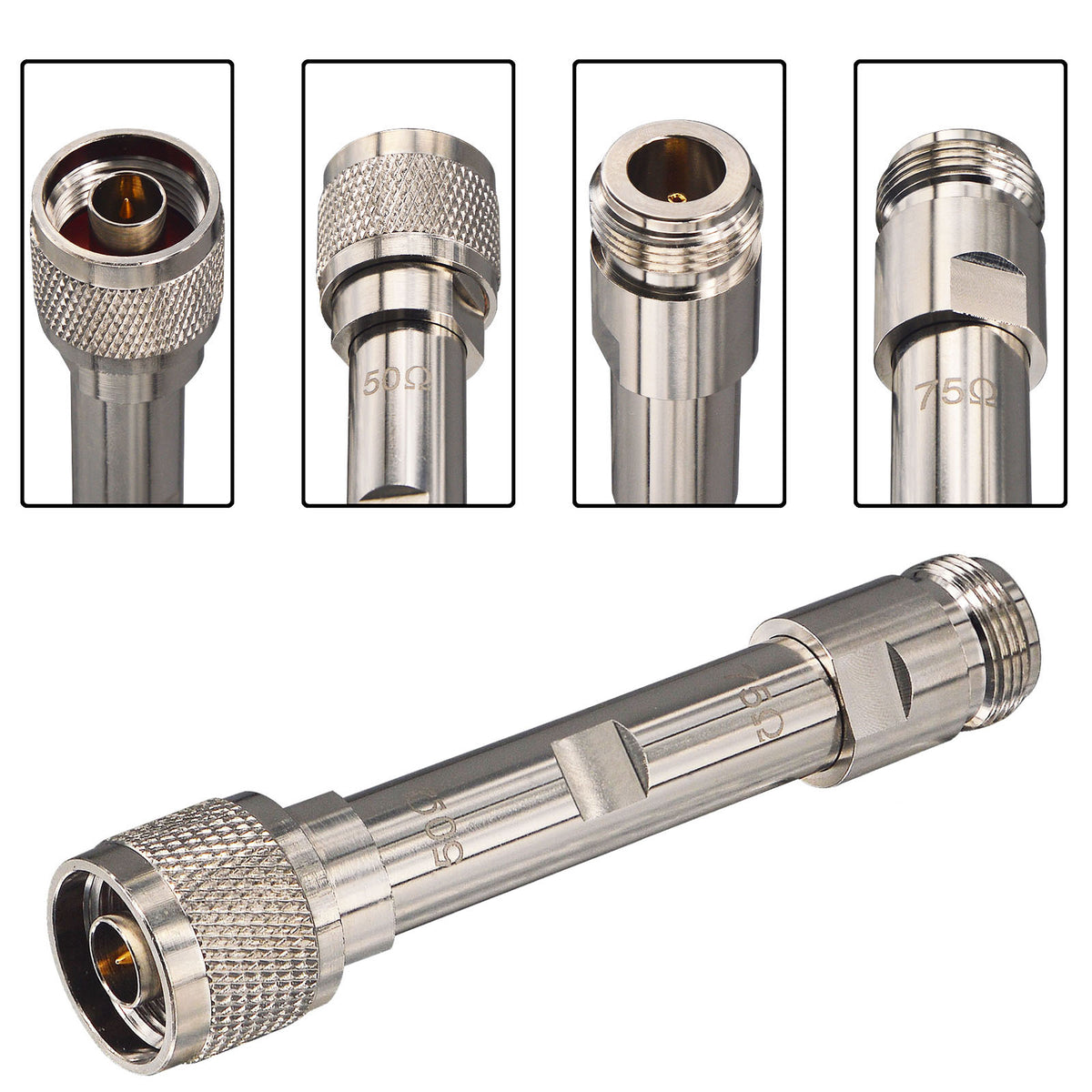

  • Silver-tone N-type impedance adapter with four close-up views of its male and female ends
1 5

N Male 50Ω to N Female 75Ω Coaxial Interface Adapter

N Male 50Ω to N Female 75Ω Coaxial Interface Adapter

OL-5042

$16.99 USD
$19.32 USD $16.99 USD
Sale Sold out
Shipping calculated at checkout.

Customized Services

We offer custom services. If you need a specific product, please contact us.

Shipping Methods

Standard shipping is selected by default. Orders over $200 are automatically upgraded to Express shipping.

High Quality Service

When you choose YILIANDUO , enjoy personalized after-sales service.

View full details

Join the specified connector interfaces while preserving the existing equipment and cable connections.

Quick Specs

  • Connector end 1: N male, marked 50Ω
  • Connector end 2: N female, marked 75Ω
  • Frequency range: Not specified for this assembly; confirm the operating band.
  • VSWR: Not specified.

Compatibility

Application Compatibility requirements
Equipment interface Match the connector families, genders and center contacts listed in Quick Specs.
Electrical requirements Check the operating band, impedance and pin assignment of the complete connection.
  • No matching result is guaranteed. Independent impedance-conversion, insertion-loss and VSWR reports are not published on this page.
  • Check connector gender, center-contact dimensions and the source/load requirements. Measure the completed RF path with suitable equipment before production use.

Mechanical & Installation

  • Body: Straight cylindrical metal body
  • Coupling: Knurled area on the N male end
  • IP Rating: Not specified. Protect exposed joints and cable entries as required by the installation.

Package Contents

1 coaxial adapter.

Product reference: OL-5042

Compare related RF adapters. For connector checks or quantity requirements, send an inquiry with photos of the mating ports.
