SMA Female to Dual SMA Male Y-Branch Cables, RG316 50Ω, 15cm, 2-Pack

SMA Female to Dual SMA Male Y-Branch Cables, RG316 50Ω, 15cm, 2-Pack

OL-4137-2X

$10.99 USD
$10.99 USD
Sale Sold out
Shipping calculated at checkout.

Customized Services

We offer custom services. If you need a specific product, please contact us.

Shipping Methods

Standard shipping is selected by default. Orders over $200 are automatically upgraded to Express shipping.

High Quality Service

When you choose YILIANDUO , enjoy personalized after-sales service.

View full details

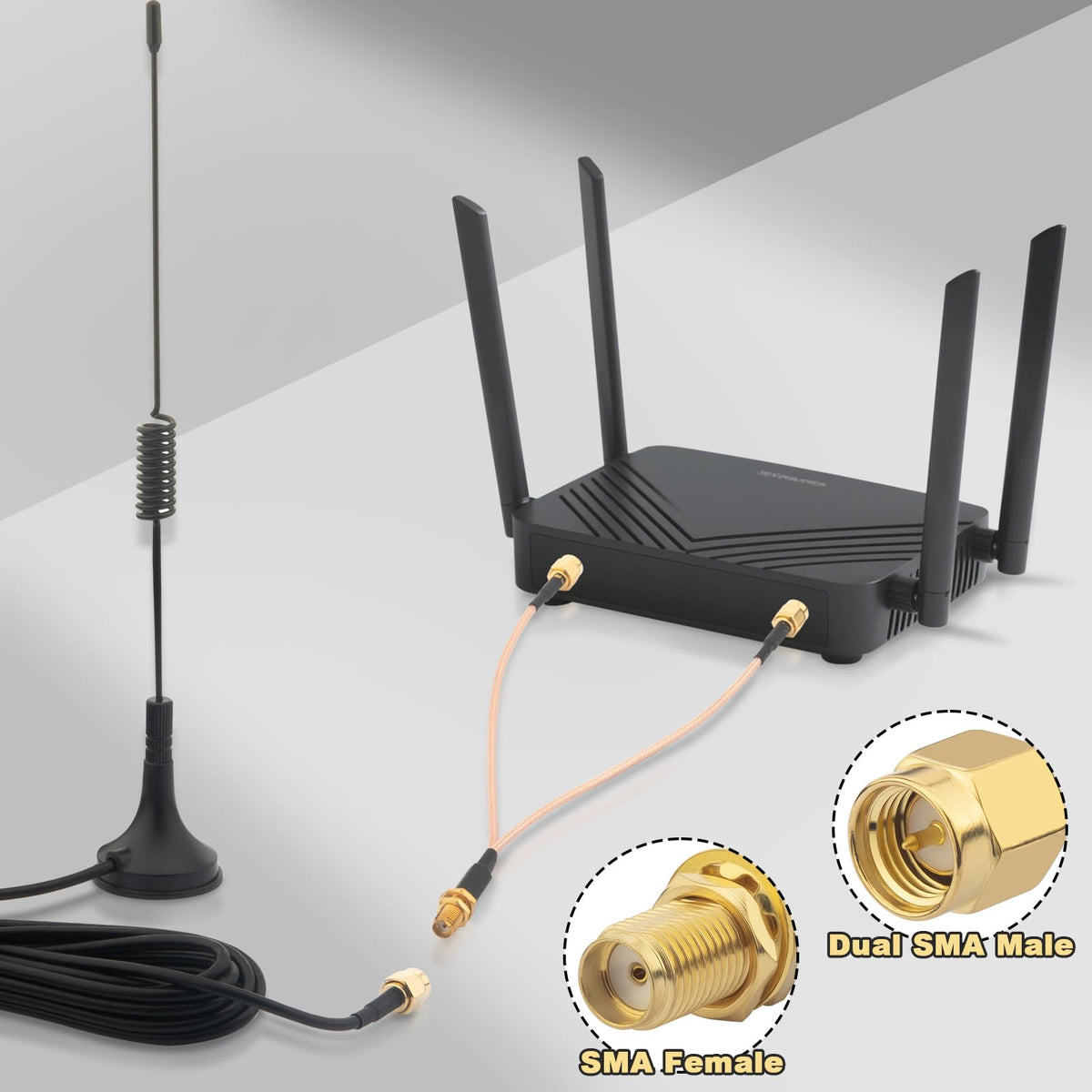

Route the specified RF connection through multiple ports when the connected equipment supports this wiring layout.

Quick Specs

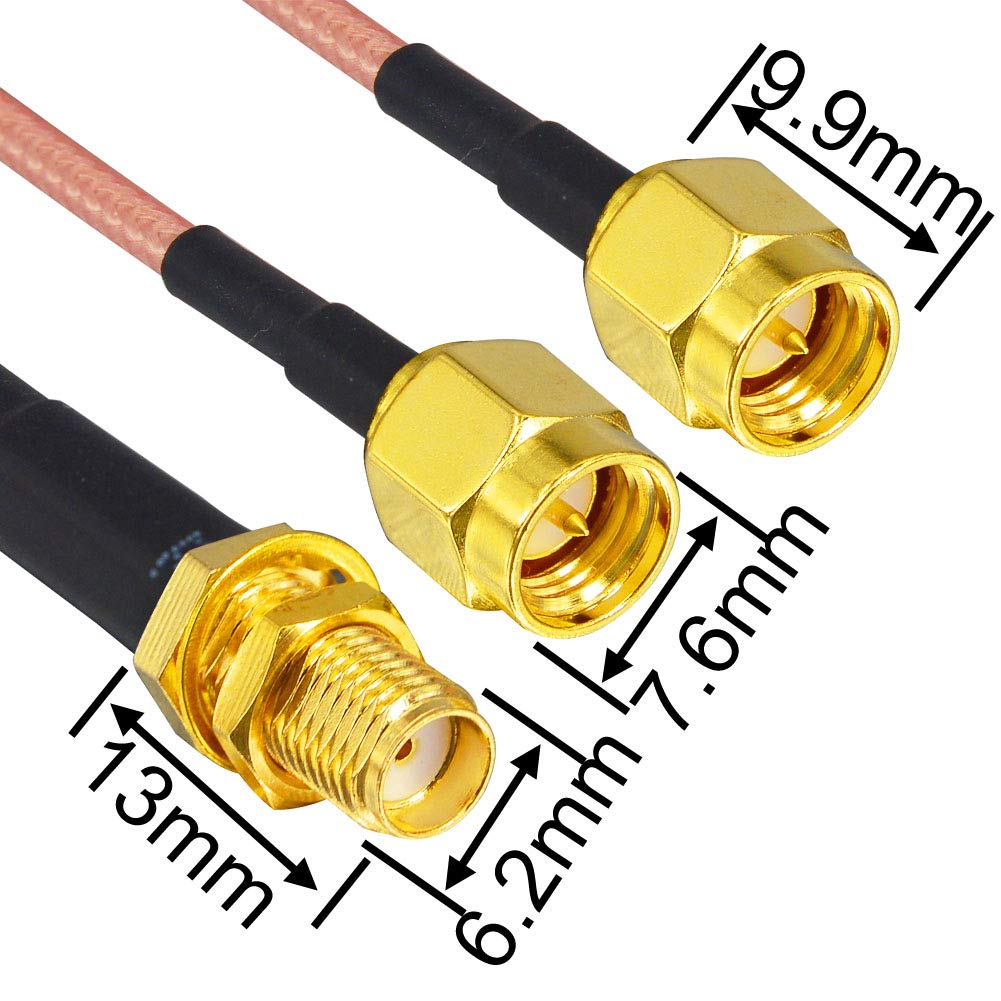

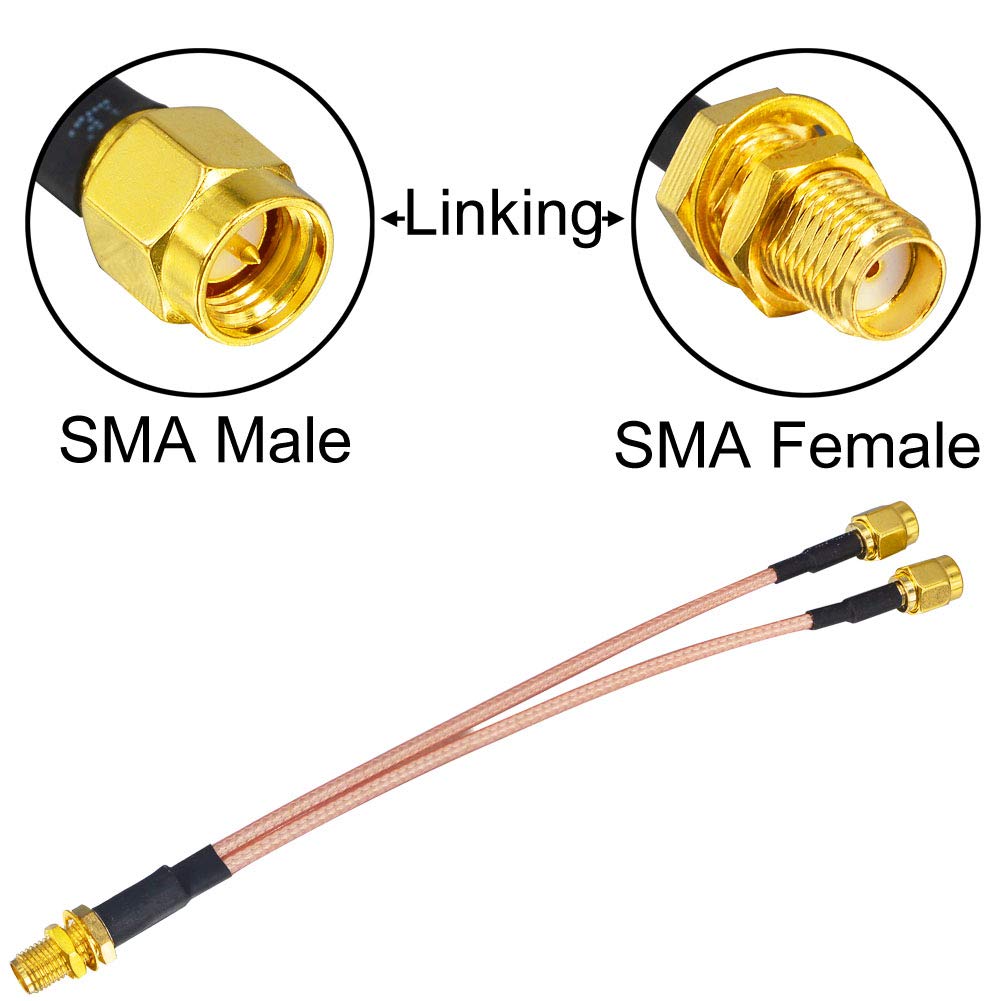

  • Connector layout: 1 SMA female to 2 SMA male per cable

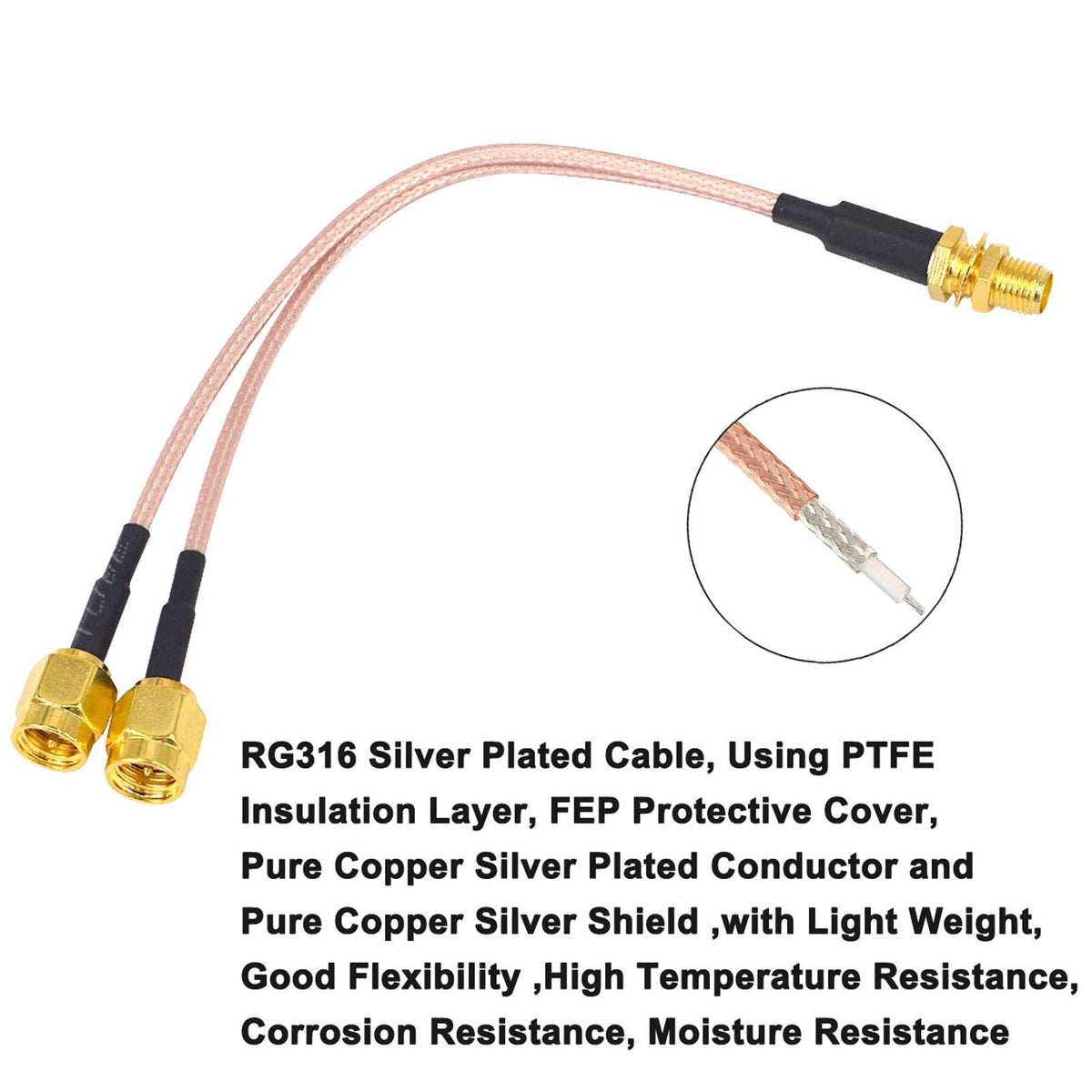

  • Cable: RG316
  • Listed length: 15cm (approximately 5.9in)
  • Listed coaxial impedance: 50 Ohm

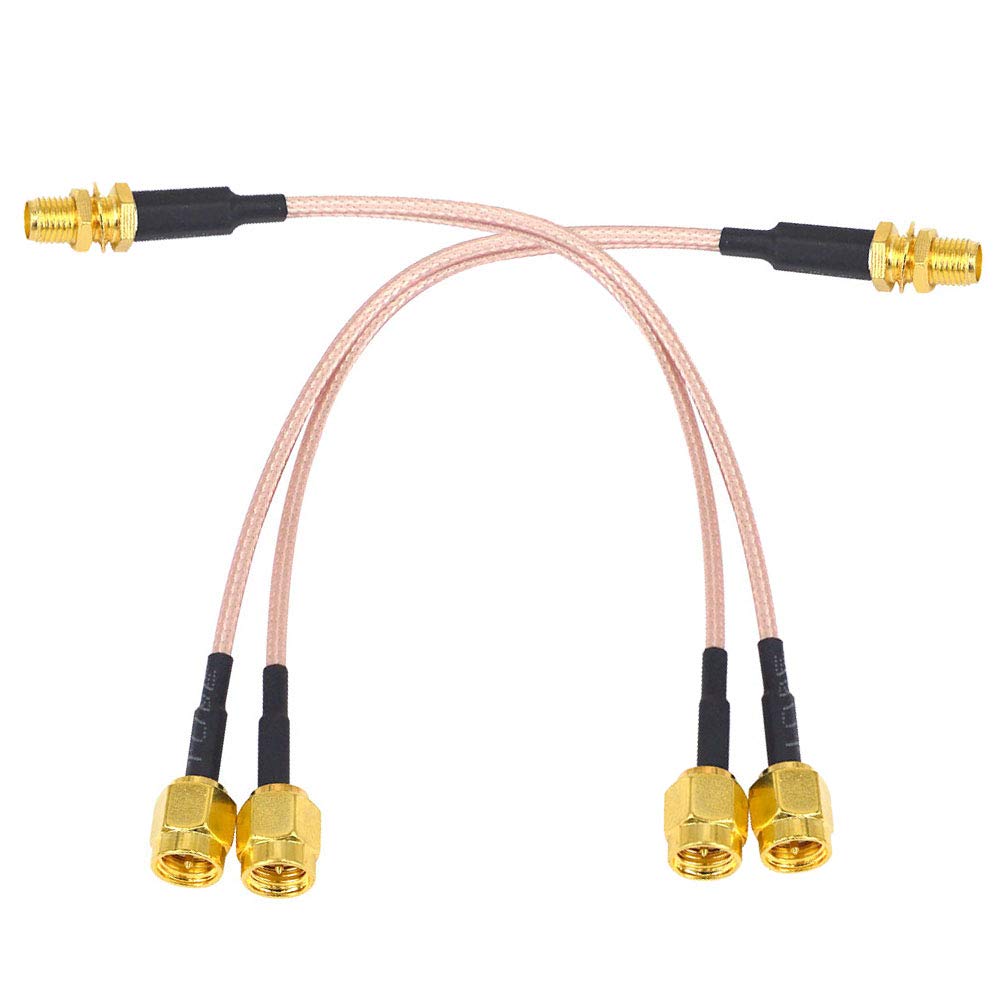

  • Quantity: 2 Y-branch cable assemblies
  • Three-port Y layout with standard SMA connectors.
  • Short RG316 cable branches for routing between nearby connection points.
  • Two complete cable assemblies per pack.
  • Frequency range: Not specified for this assembly; confirm the operating band.
  • VSWR: Not specified.

Compatibility

Application Compatibility requirements
Equipment interface Match the connector families, genders and center contacts listed in Quick Specs.
Electrical requirements Check the operating band, impedance and pin assignment of the complete connection.
  • Match all three connectors and check how the connected equipment is intended to share an RF path.
  • Do not connect transmitter outputs together. Check the circuit design before attaching multiple active devices.
  • This is a cable branch assembly. No isolation or matched power-divider specification is supplied; do not assume it provides those functions or boosts a signal.

Mechanical & Installation

  • Check connector clearance and support attached cables during installation.
  • IP Rating: Not specified. Protect exposed joints and cable entries as required by the installation.

Package Contents

  • 2 SMA female-to-dual-SMA-male RG316 Y-branch cables.

Product reference: OL-4137-2X
