SMA Female to Right-Angle TS9 Male Pigtail Cable, RG174 50Ω, 15cm, Bulkhead, 2-Pack

SMA Female to Right-Angle TS9 Male Pigtail Cable, RG174 50Ω, 15cm, Bulkhead, 2-Pack

OL1257-2X

$7.99 USD
$7.99 USD
Sale Sold out
Shipping calculated at checkout.

Customized Services

We offer custom services. If you need a specific product, please contact us.

Shipping Methods

Standard shipping is selected by default. Orders over $200 are automatically upgraded to Express shipping.

High Quality Service

When you choose YILIANDUO , enjoy personalized after-sales service.

View full details

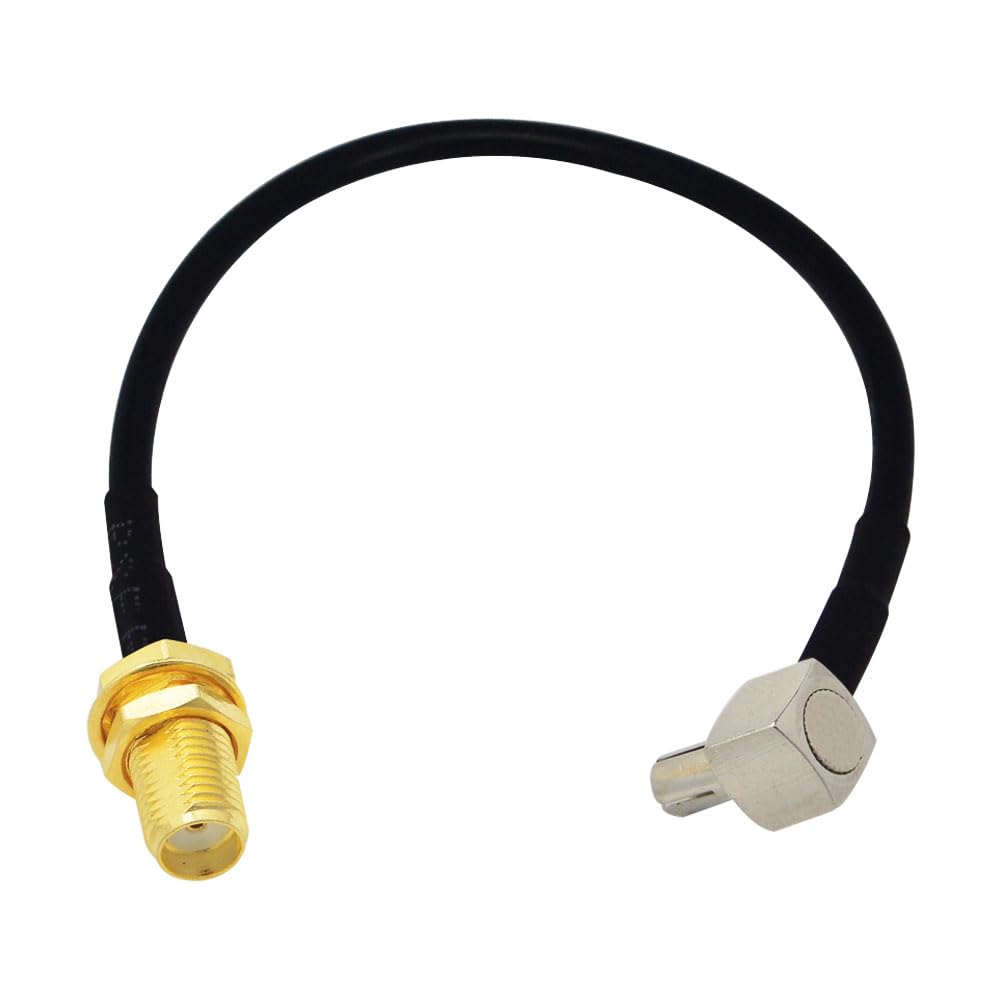

Connect an SMA antenna lead to a matching TS9 modem port with a short right-angle pigtail.

Quick Specs

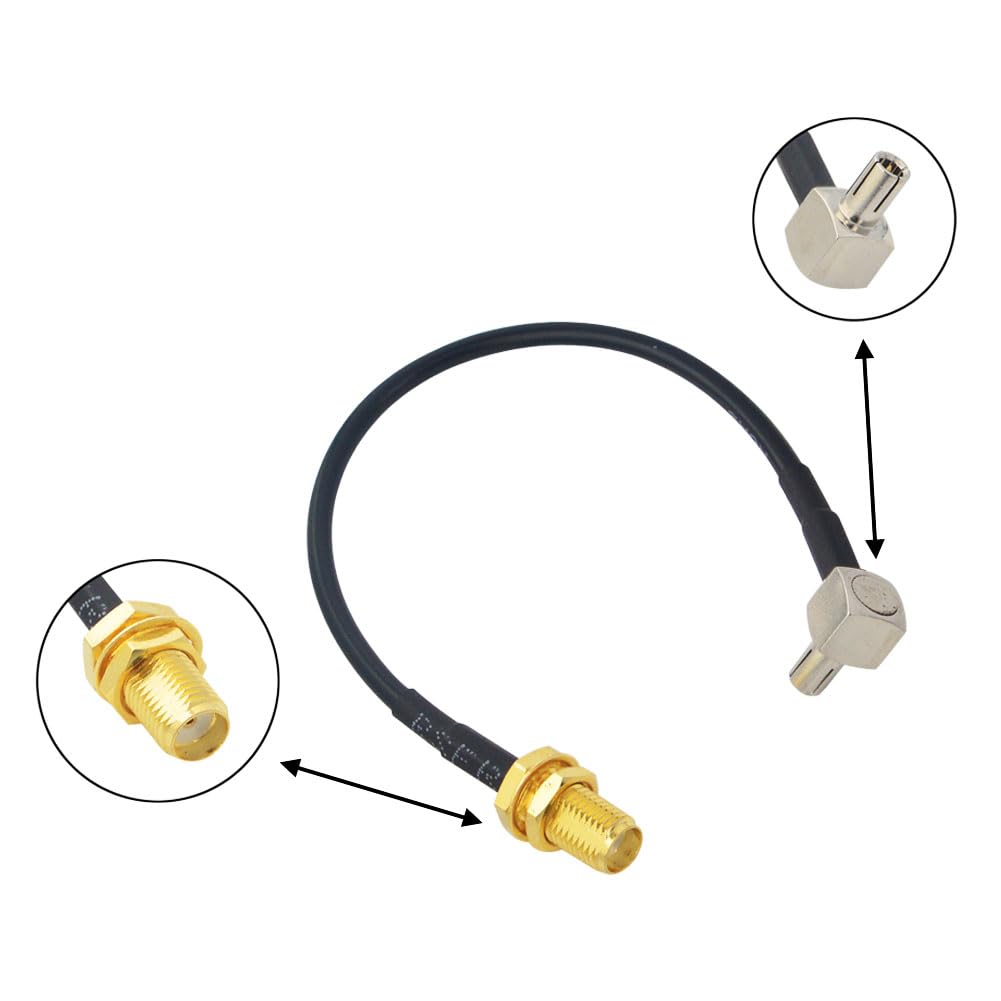

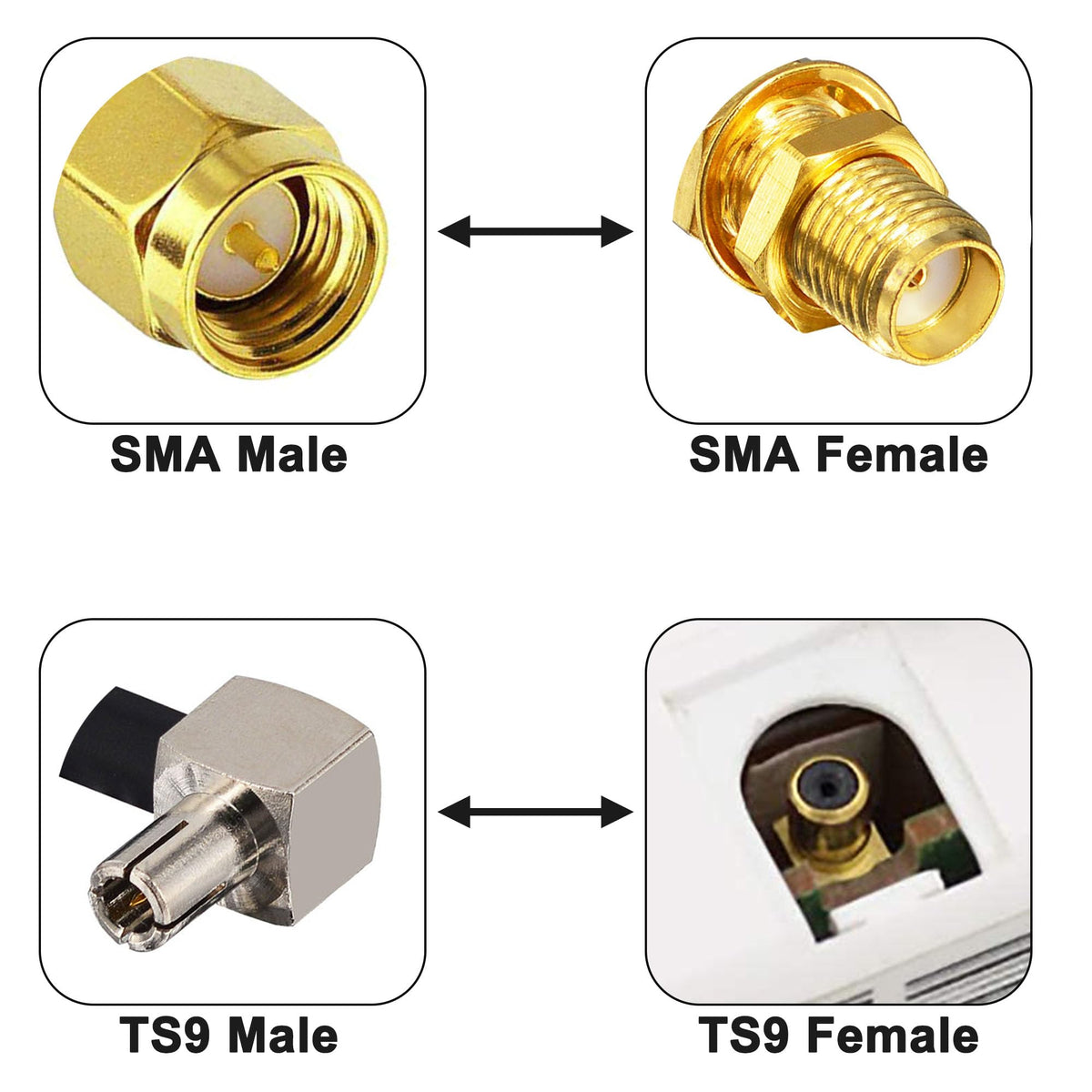

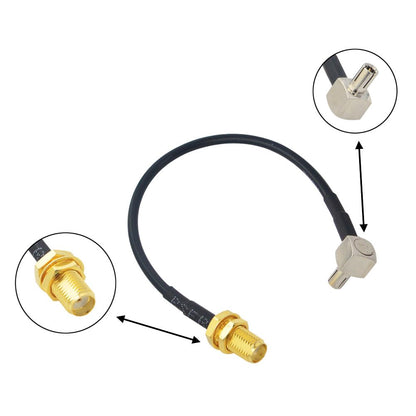

  • Connector 1: SMA female bulkhead
  • Connector 2: right-angle TS9 male
  • Cable: RG174
  • Length: 15cm
  • Impedance: 50Ω
  • Quantity: 2 cables
  • Frequency range: Not specified for this assembly; confirm the operating band.
  • VSWR: Not specified.

Compatibility

Application Compatibility requirements
Equipment interface Match the connector families, genders and center contacts listed in Quick Specs.
Electrical requirements Check the operating band, impedance and pin assignment of the complete connection.

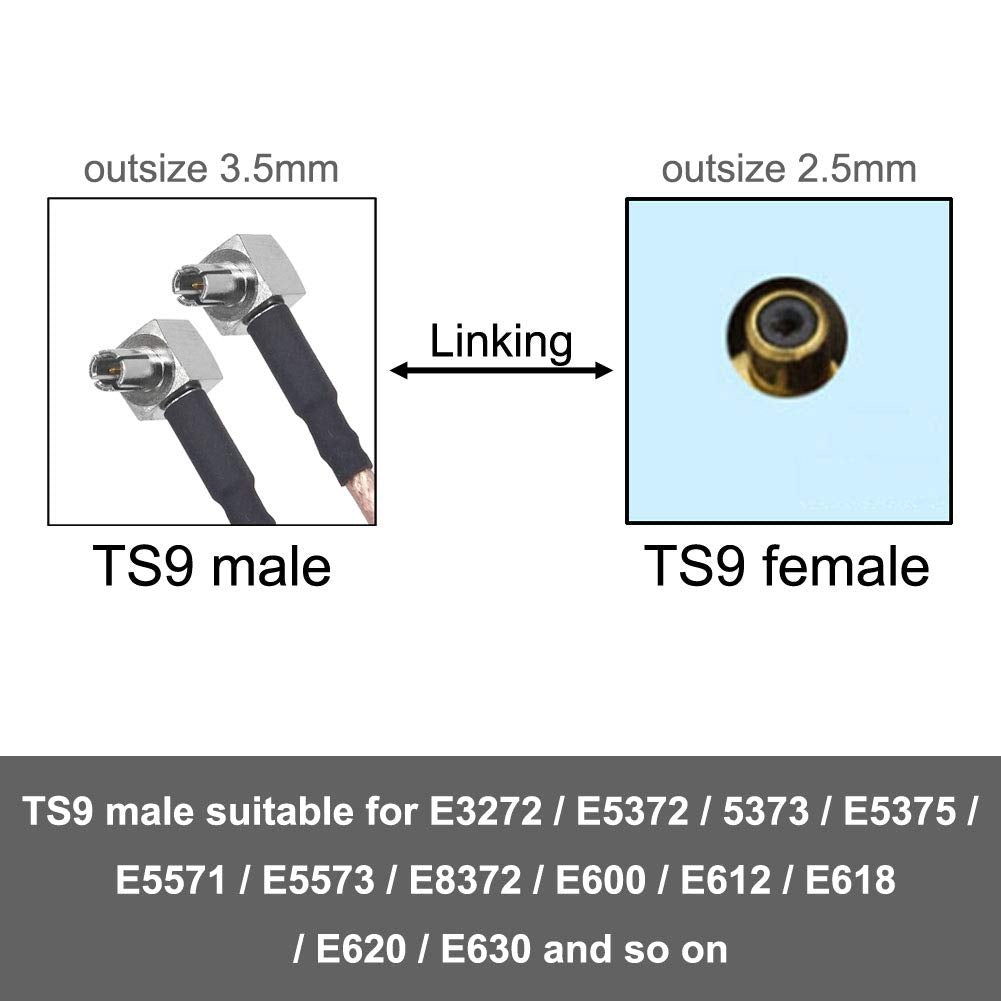

  • For cellular modem or router antenna connections that match the TS9 port and SMA antenna interface.
  • TS9 and CRC9 are different interfaces; compare the actual port before installation.

Mechanical & Installation

  • Right-angle TS9 end for routing near the equipment port
  • Listed connector finish: nickel-plated SMA and gold-plated TS9
  • Cutout Size: Not specified. Confirm the mounting drawing, panel thickness and hole pattern before machining.
  • Termination Method: Preassembled cable ends; factory crimp/solder construction is not specified.
  • IP Rating: Not specified. Protect exposed joints and cable entries as required by the installation.

Package Contents

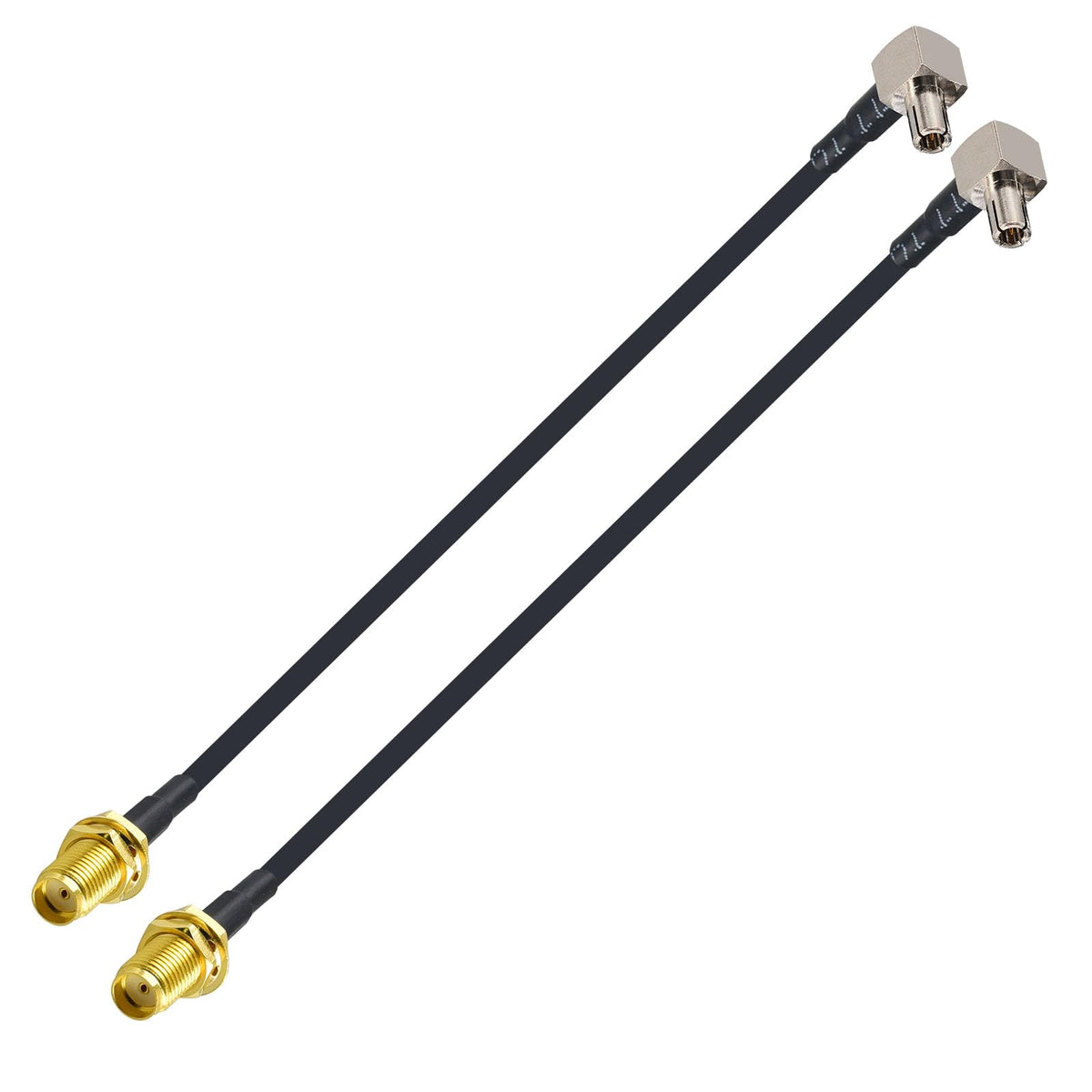

  • 2 × SMA female-to-TS9 male RG174 pigtail cables

Product reference: OL1257-2X
