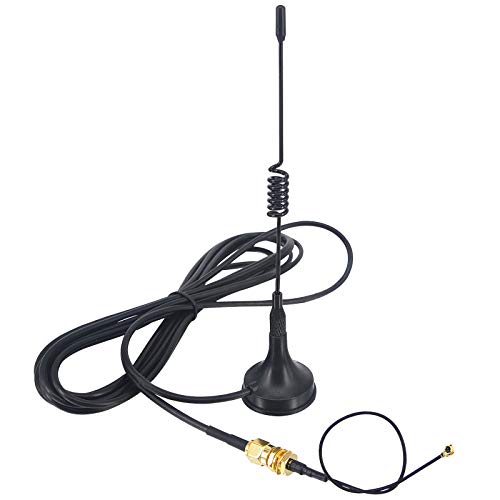

YILIANDUO 5dBi 433MHz Antenna SMA Male Magnetic + U.FL to SMA Pigtail

• Frequency Range(MHz): 433+/-15 | Antenna Adapter type: SMA Male, pin in center | Cable adapter: SMA female to U.fl/ IPX | Impedance: 50 Ohm | Cable type: RG174 Coaxial Cable / 1.13 cable | Antenna Cable Length: 3M | IPX Cable Length: 15CM
• Both can be used with SMA antenna and U.FL IPX Connector end antenna. Area of application: increases both the range and the signal quality of your wireless network significantly.

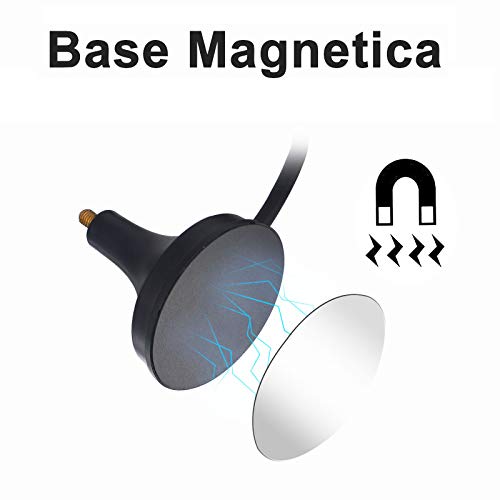

• Flexible Use: Designed with a magnetic base. The 3M antenna extension cable and magnetic base bracket allow you to place the antenna anywhere you need. The antenna can be directly attached to the equipped wall bracket or any iron-containing area you need to place it through the suction cup at the bottom. If you feel it is not firm enough, you can choose to use double sided tape to fix it
• Application: Compatible with All Series 433MHz devices; use for CCU3, CCU2, CCU1, CHARLY, radio module from ELV, RaspberryMatic Raspberry Pi CC1101 Fibaro System Home Center;

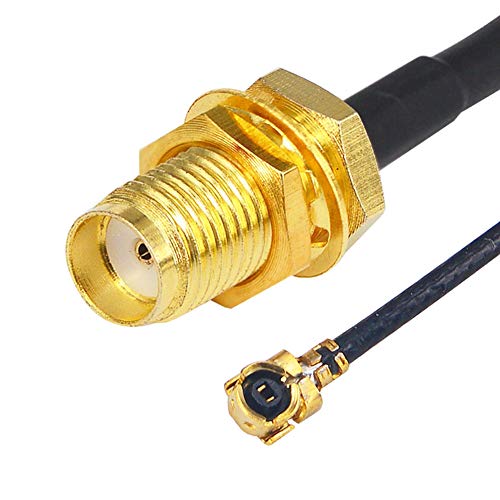

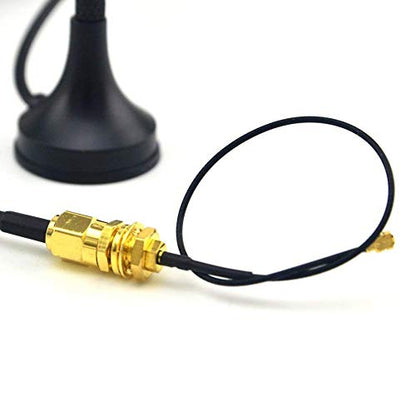

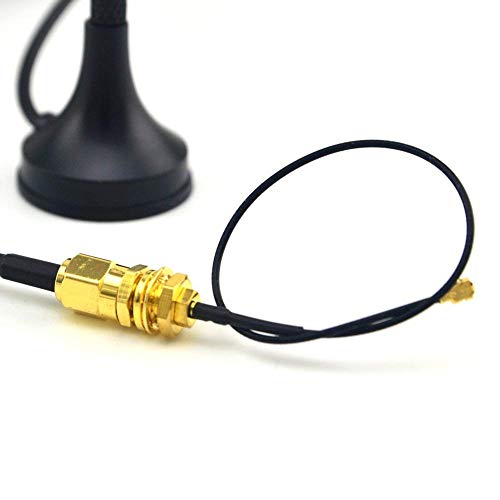

• Package included : 1 pcs SMA Antenna + 1 pcs SMA female to IPX Pigtail cable 15CM

Description:
Frequency Range(MHz) : 433+/-15
Bandwidth(MHz) : 30
Max Gain(dBi) : 5
Max Input power(W) : 60
Input Impedance(Ω): 50
Polarization Type: Vertical
Cable Length : 3m

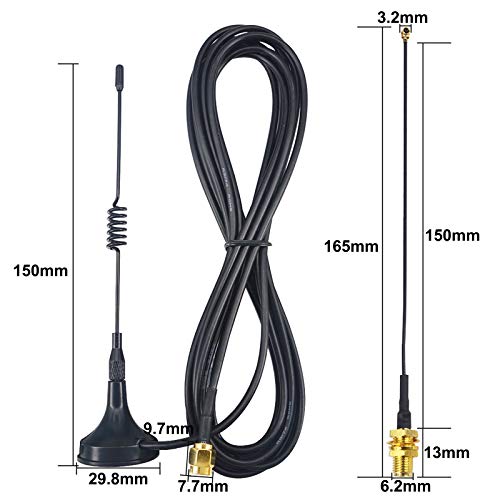

Total length(From the top to base):14.7cm
Base size: 3.5 x 3cm(L*W)
Cable Type : RG174

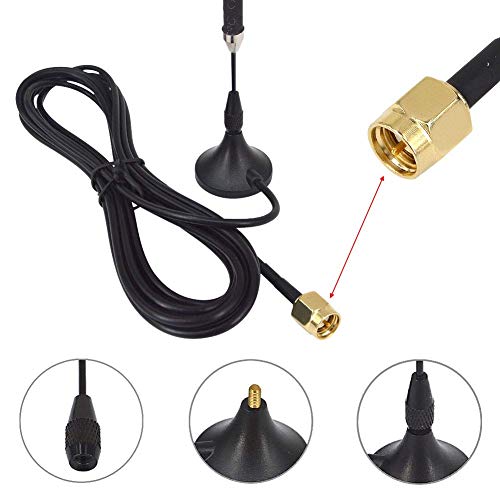

Connector Type : SMA Plug connector Mounting Magnetic
Notice:Antenna with SMA Male to Female RG174 3M Cable ;Antenna with SMA Male to Female RG316 15CM Cable; Antenna with SMA Female to IPX 1.13 Cable 15CM
Both can use with sma end and ipx end
