868MHz LoRaWAN Fiberglass Antenna, N Male, 30cm, with Mounting Brackets
868MHz LoRaWAN Fiberglass Antenna, N Male, 30cm, with Mounting Brackets
Артикул:OL-5550
Обычная цена
$27.99 USD
Обычная цена
$30.99 USD
Цена со скидкой
$27.99 USD
Стоимость доставки рассчитывается при оформлении заказа.
Количество
Не удалось загрузить сведения о доступности самовывоза
Customized Services
Customized Services
We offer custom services. If you need a specific product, please contact us.
Shipping Methods
Shipping Methods
Standard shipping is selected by default. Orders over $200 are automatically upgraded to Express shipping.
High Quality Service
High Quality Service
When you choose YILIANDUO , enjoy personalized after-sales service.
Position an antenna for a compatible 868MHz LoRa or LoRaWAN installation.

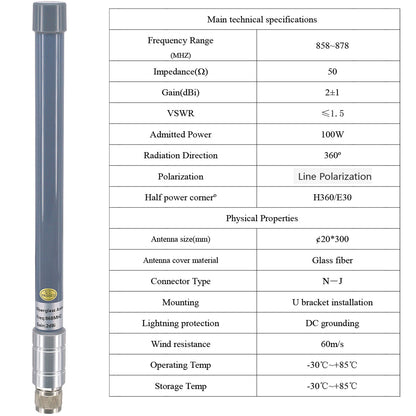

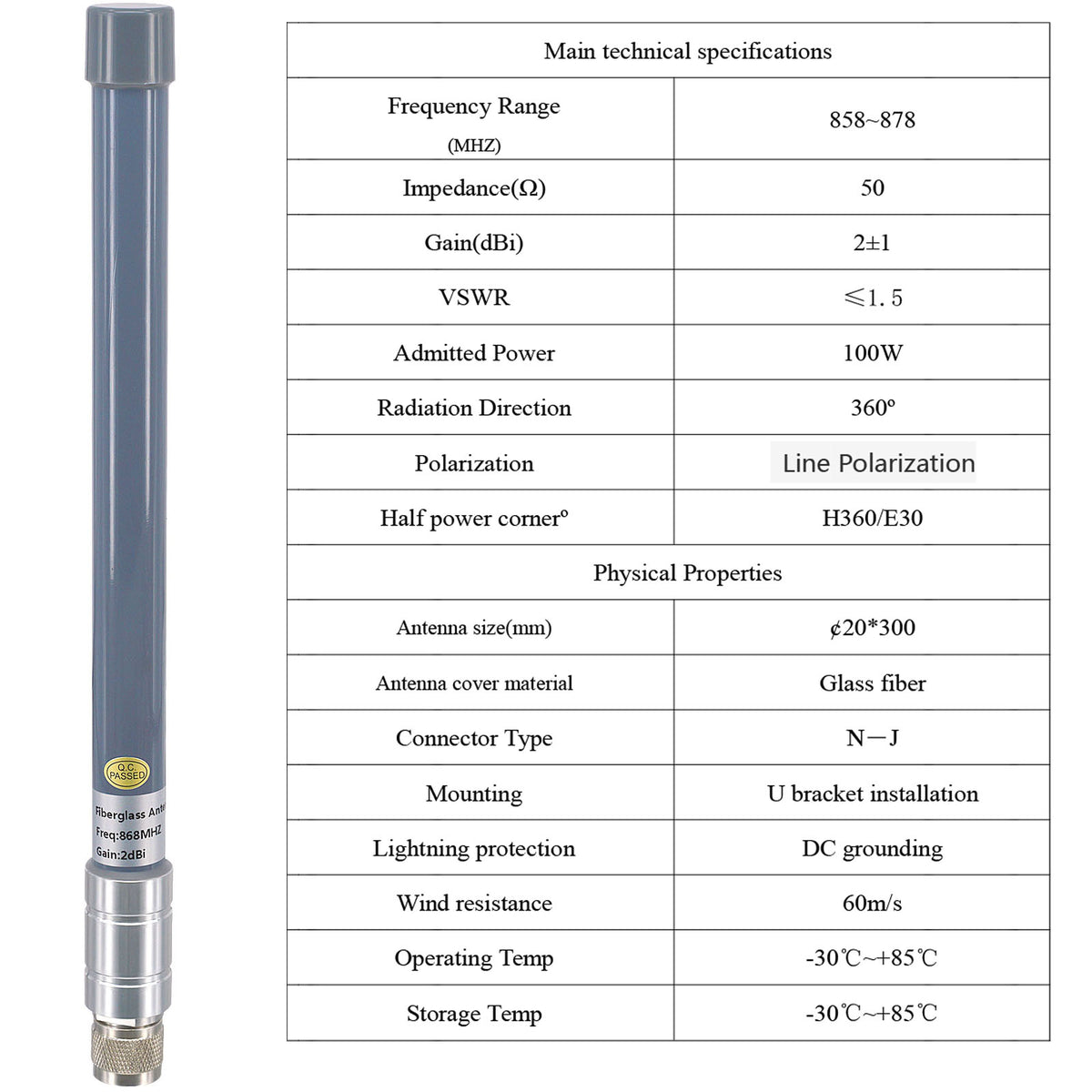

Quick Specs
- 30cm 868MHz LoRa fiberglass antenna with N male connector and two mounting brackets. Listed band: 858–878MHz; not for 915MHz systems.
- Frequency range: 858–878MHz for 868MHz LoRa and LoRaWAN equipment.
- Connector: N Male.
- Impedance: 50Ω
- VSWR: Not specified.
Compatibility
| Application | Compatibility requirements |
|---|---|
| LoRa / LoRaWAN | Use equipment operating within the frequency bands in Quick Specs and with matching antenna ports. |
- Check the mating connector and frequency band before ordering.
- Not intended for 915MHz systems.
Mechanical & Installation
- Installation: vertical

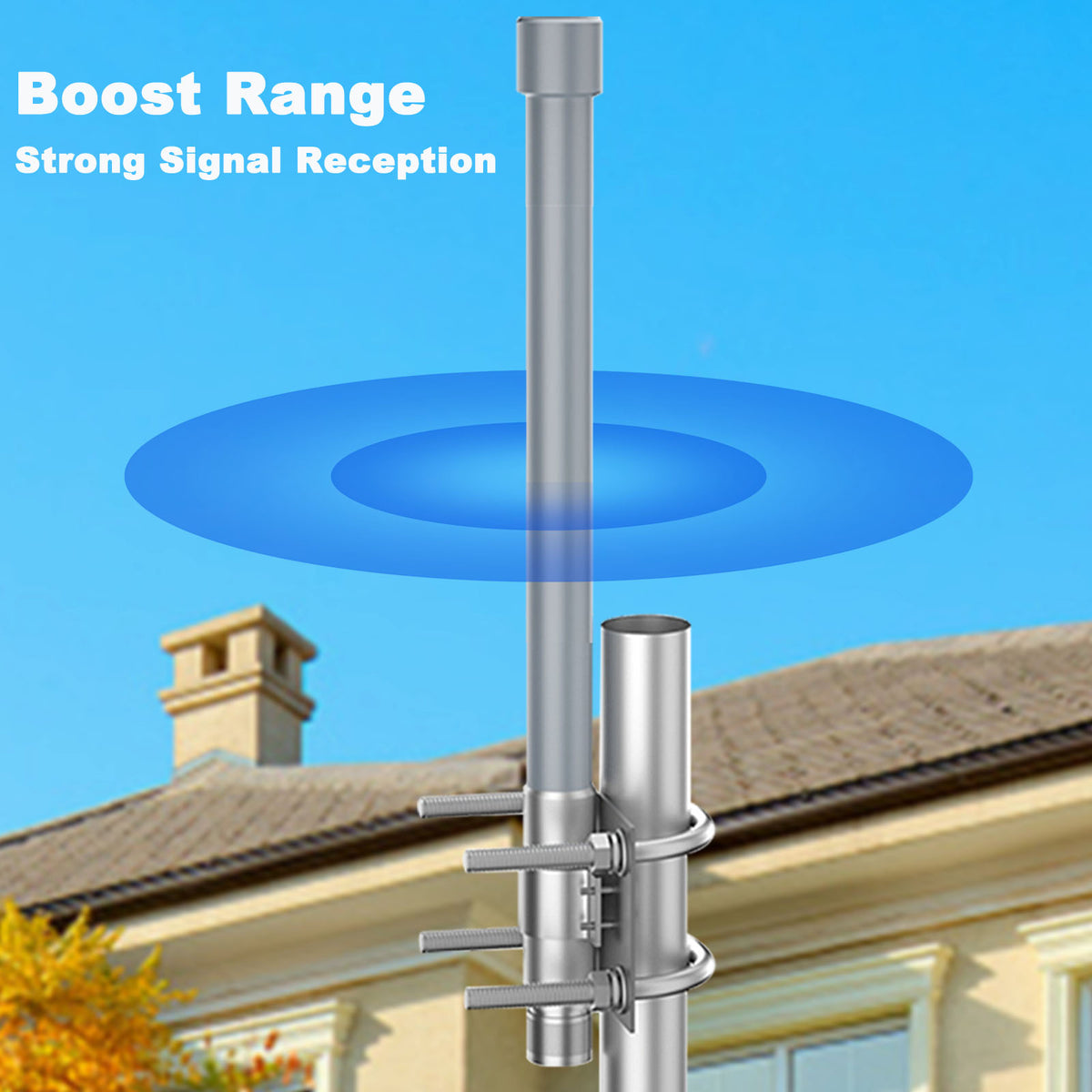

- Install vertically in an open position. No certified IP rating is currently stated. For outdoor use, weather-seal the RF connection and provide suitable grounding and lightning protection.
- IP Rating: Not specified. Protect exposed joints and cable entries as required by the installation.

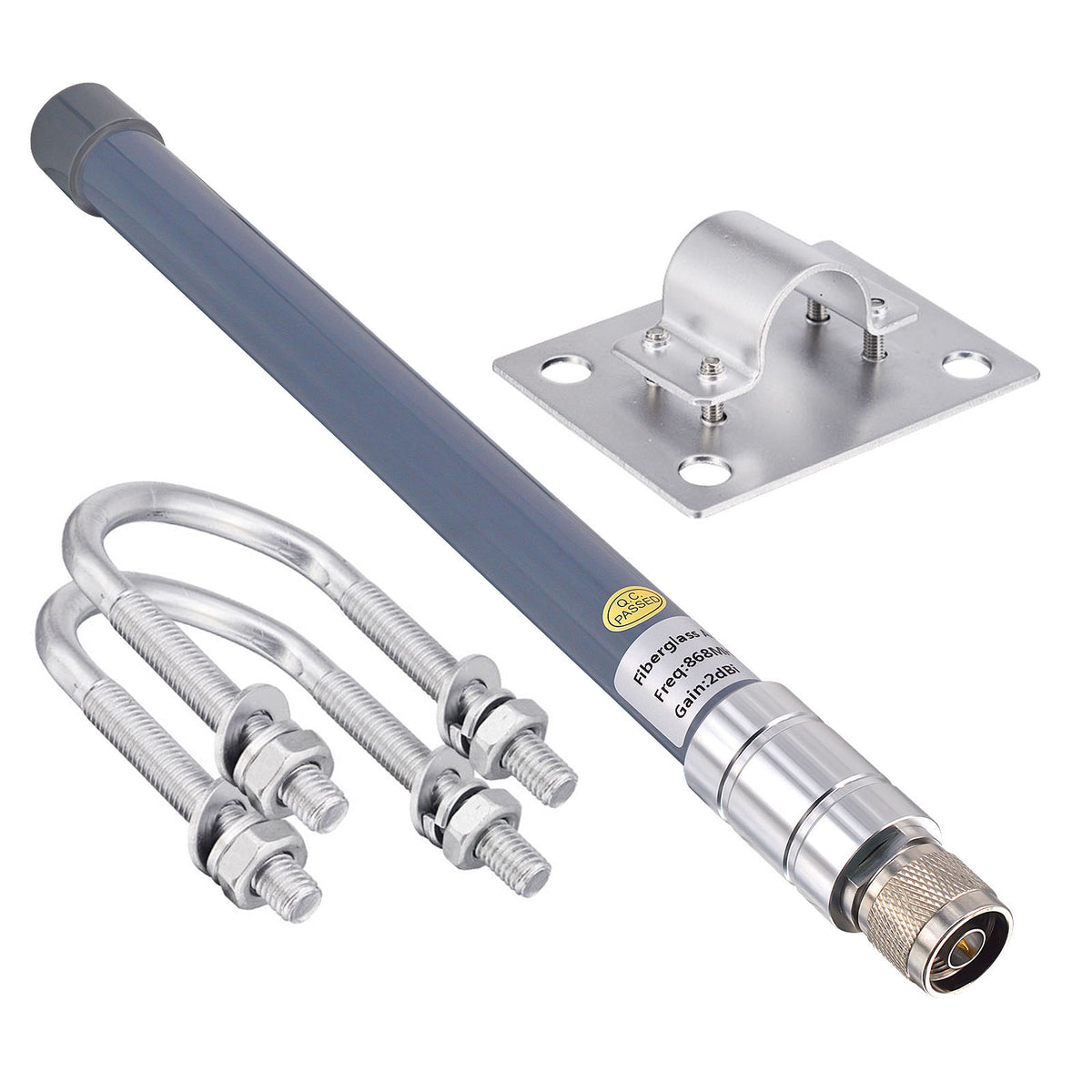

Package Contents

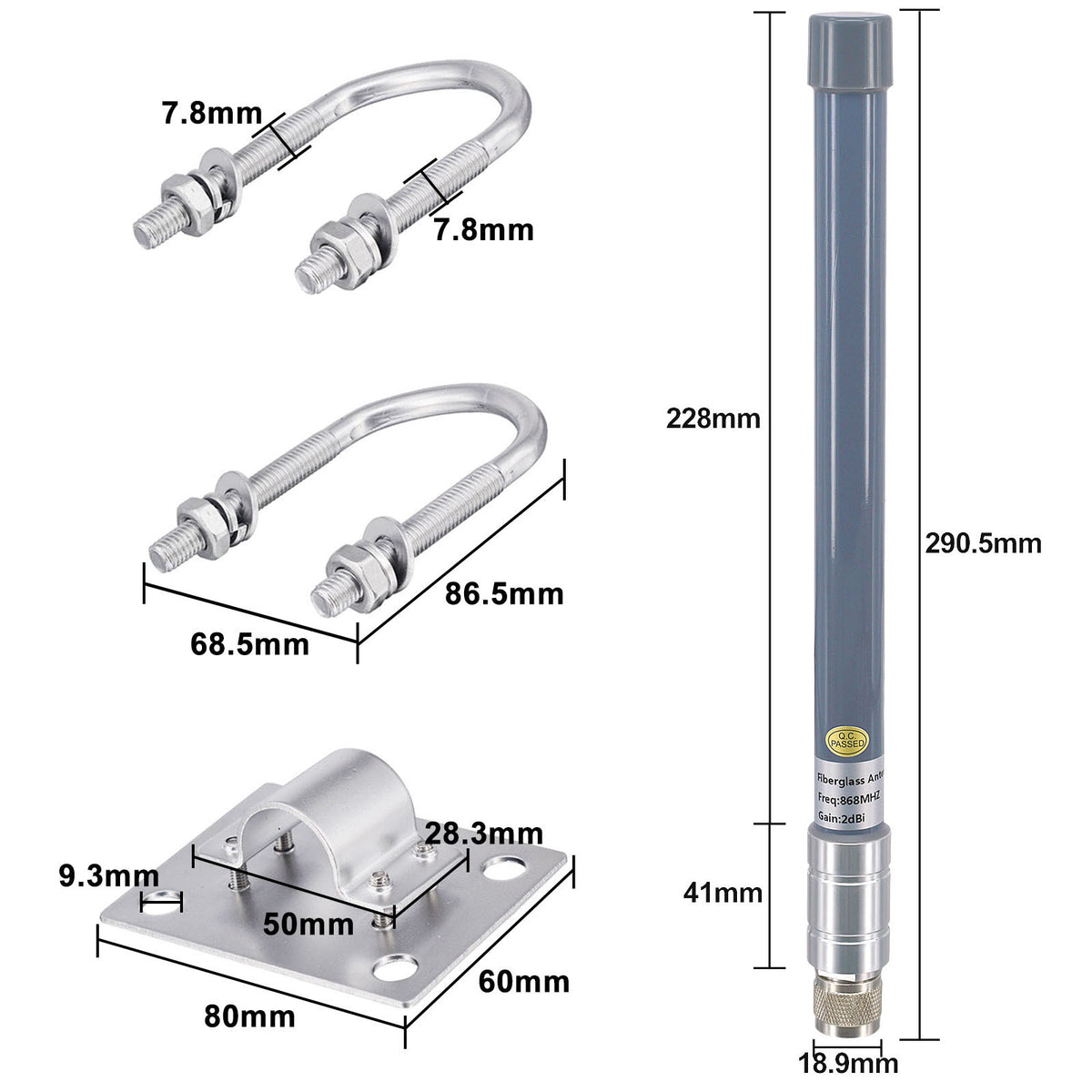

- 1 × 868MHz fiberglass antenna, 30cm
- 2 × mounting brackets
Product reference: OL-5550
Compare related antennas. For connection checks or quantity requirements, send a custom or bulk inquiry with the product reference and mating-port details.
